Water Treatment and Process Water Filtration
Reliable filtration solutions for industrial water systems, utilities, and critical process applications
Water is a critical utility and process medium across industrial operations, used in cooling systems, boilers, cleaning processes, and as an ingredient or carrier fluid in production. The quality of this water directly impacts equipment reliability, process stability, and final product quality.
Contaminants such as suspended solids, corrosion products, and organic matter can lead to fouling, scaling, and increased maintenance. In systems such as heat exchangers, membranes, and precision dosing equipment, even low levels of contamination can significantly reduce efficiency and operational lifespan.
In applications where water comes into direct or indirect contact with products such as food, beverage, and pharmaceutical processes-filtration requirements extend beyond particulate removal. Microbiological control becomes critical, requiring fine and membrane filtration to reduce bacterial load and ensure consistent water quality.
Filtra International provides engineered filtration solutions across the full water cycle, from raw water intake to final process filtration, ensuring both system protection and product integrity.
Optimise your water systems with application-specific filtration design

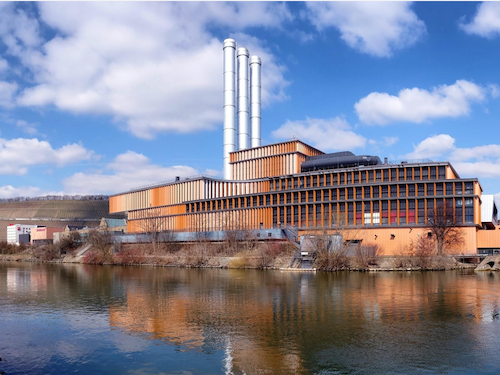

Raw Water Intake and Pre-Treatment
Water from natural or municipal sources often contains suspended solids, sand, and organic material.
Why filtration is required:
- Protect downstream treatment systems
- Stabilise incoming water quality
- Reduce fouling of membranes and equipment
Typical solutions:

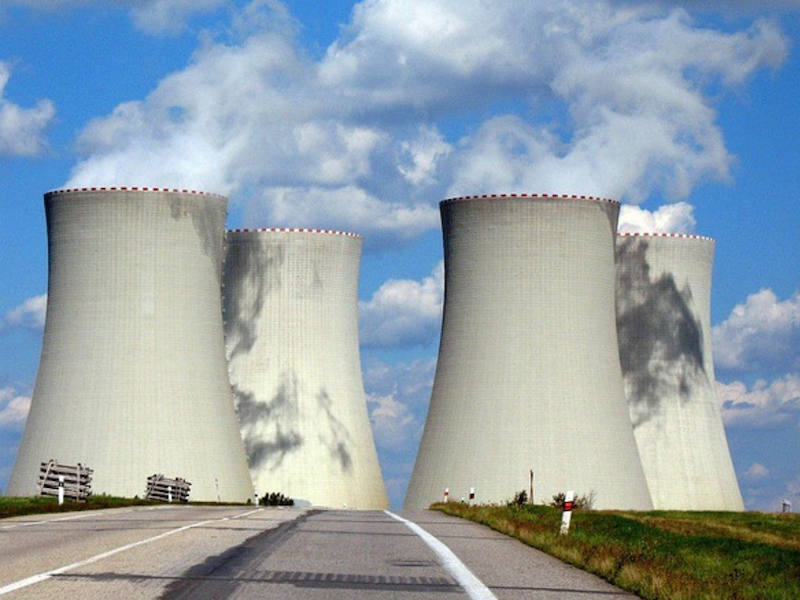

Cooling Water Systems
Cooling systems are highly sensitive to fouling caused by suspended solids and biological growth.
Why filtration is required:
- Maintain heat exchanger efficiency
- Reduce fouling and scaling
- Lower chemical treatment requirements
Typical solutions:

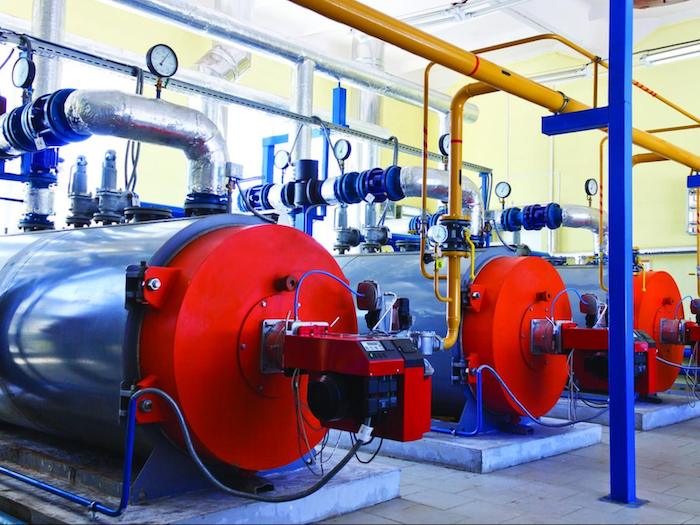

Boiler Feed Water and Utility Systems
Boiler systems require controlled water quality to prevent scaling and corrosion.
Why filtration is required:
- Protect softeners and RO systems
- Remove particulates before critical stages
- Ensure long-term system integrity
Typical solutions:

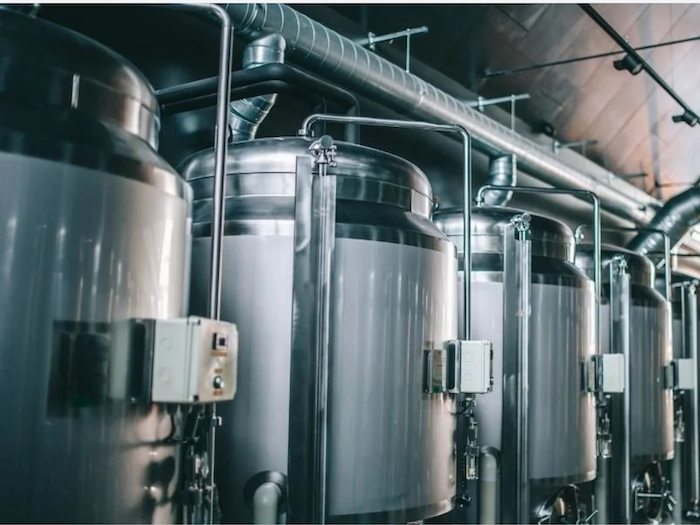

Process Water Filtration
Process water is used directly in production, cleaning, or as part of formulations.
Why filtration is required:
- Ensure consistent product quality
- Prevent contamination of process streams
- Protect sensitive equipment
Typical solutions:
Hygienic and Microbiological Control Filtration
In applications where water is used as an ingredient or comes into contact with products, microbiological contamination presents a critical risk.
Why filtration is required:
- Reduce bacterial load in process water
- Protect product quality and safety
- Support hygiene and compliance requirements
Typical solutions:
- Membrane filtration (Sterile)
- Absolute-rated cartridge filters
- Multi-stage filtration systems

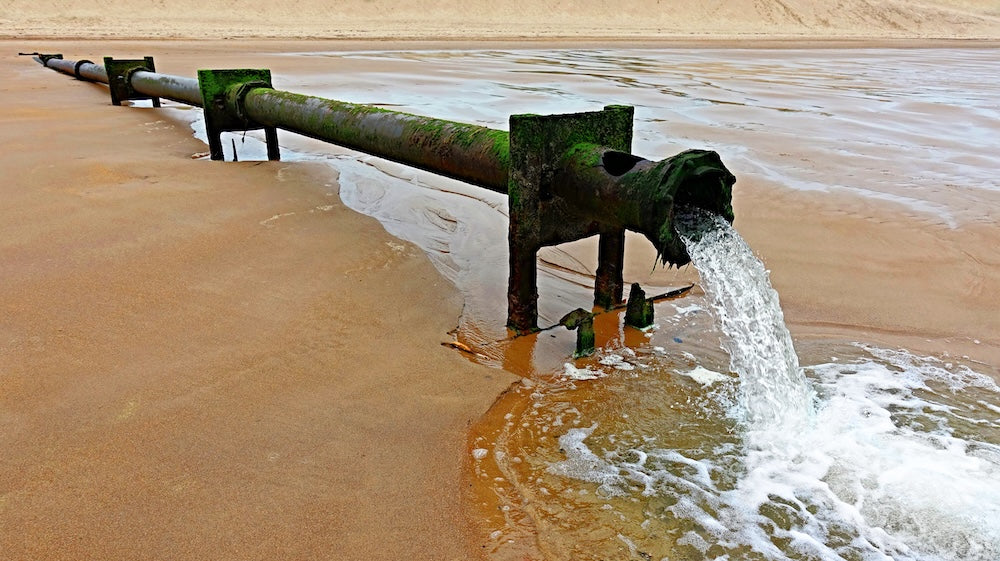

Wastewater and Effluent Treatment
Wastewater streams contain solids, oils, and process residues requiring removal before discharge or reuse.
Why filtration is required:
- Meet environmental standards
- Enable water reuse
- Reduce load on downstream treatment
Typical solutions:
Membrane Protection (RO / UF Systems)
RO and UF membranes are highly sensitive to particulate contamination.
Why filtration is required:
- Prevent membrane fouling
- Extend membrane lifespan
- Maintain system performance
Typical solutions:
Reduce fouling and improve water quality across your systems
Controlling Fouling, Biofouling and System Stability
In industrial water systems, contamination is not limited to suspended solids. Over time, systems are affected by a combination of particulate fouling, scaling, and biological growth. These mechanisms reduce efficiency and increase operational costs if not properly controlled.
Fouling mechanisms include:
- Deposition of suspended solids in heat exchangers and pipelines
- Scaling from dissolved minerals
- Biofouling caused by bacteria and organic matter
Operational impact:
- Reduced heat transfer efficiency
- Increased pressure drop across systems
- Higher energy and chemical consumption
Filtration strategy:
- Coarse filtration at intake to remove large particles
- Continuous side-stream filtration to control circulating solids
- Fine and membrane filtration for critical protection points
In higher-purity applications, filtration also plays a key role in microbiological control. Fine and membrane filtration stages reduce bacterial contamination and help control biofilm formation, particularly in systems with storage tanks, recirculation loops, or intermittent use.
Filtration Solutions and Technologies
Filtra International supplies a complete range of filtration technologies for water treatment and process water applications, covering all stages from raw water intake to final and hygienic filtration.
A complete range of filtration products for water treatment applications, including cartridges, filter bags, high-flow systems, self-cleaning filters, and industrial housings. Available as standalone components or integrated into multi-stage filtration systems.
Used for high dirt-holding capacity and removal of suspended solids in pre-treatment stages. Commonly applied where solids loading is high or variable, such as raw water intake and upstream conditioning.
Provides high surface area and consistent filtration performance for process water, utility systems, and membrane protection. Suitable for applications requiring stable and predictable filtration efficiency.
Applied where fine particulate removal and microbiological control are required. Used in hygienic and high-purity water systems to reduce bacterial load and protect downstream processes.
Automated filtration systems designed for continuous operation in applications with high solids loading. Technologies such as backflush and suction cleaning are typically used in raw water intake, cooling systems, and recirculating loops.
Used for cost-effective filtration in applications with higher solids loading, including wastewater treatment, bulk water handling, and pre-filtration stages. Suitable for both batch and continuous processes.
Designed for large volume water applications where compact footprint and reduced maintenance are required. Typically used in centralised water treatment systems and pre-filtration for downstream processes.
Used in high-pressure systems and demanding industrial environments, offering mechanical strength and durability. Materials such as stainless steel and duplex alloys are commonly applied, with optional internal coatings or linings where enhanced corrosion resistance is required.
Polymeric Filter Housings (PP / PVDF)
Applied in chemically aggressive water streams where corrosion resistance is critical. Polypropylene offers a cost-effective solution, while PVDF provides enhanced chemical compatibility and temperature resistance for more demanding applications.
RO Membrane Systems
Used in applications requiring high-purity water and dissolved solids removal. Typically applied in process water, utility systems, and hygienic applications, with upstream filtration required to protect membrane performance and ensure reliable operation.
Explore our water treatment filtration products
Engineering and Materials
Filtra International designs water filtration systems based on process-specific requirements.
Available materials include:
- Stainless steel (316L, duplex)
- Engineering polymers (PP, PVDF, nylon)
- Elastomers (EPDM, Viton, PTFE)
Engineering capabilities:
- Multi-cartridge and high-flow housings
- Skid-mounted systems
- Integration into existing installations
- AutoCAD 2D and 3D design

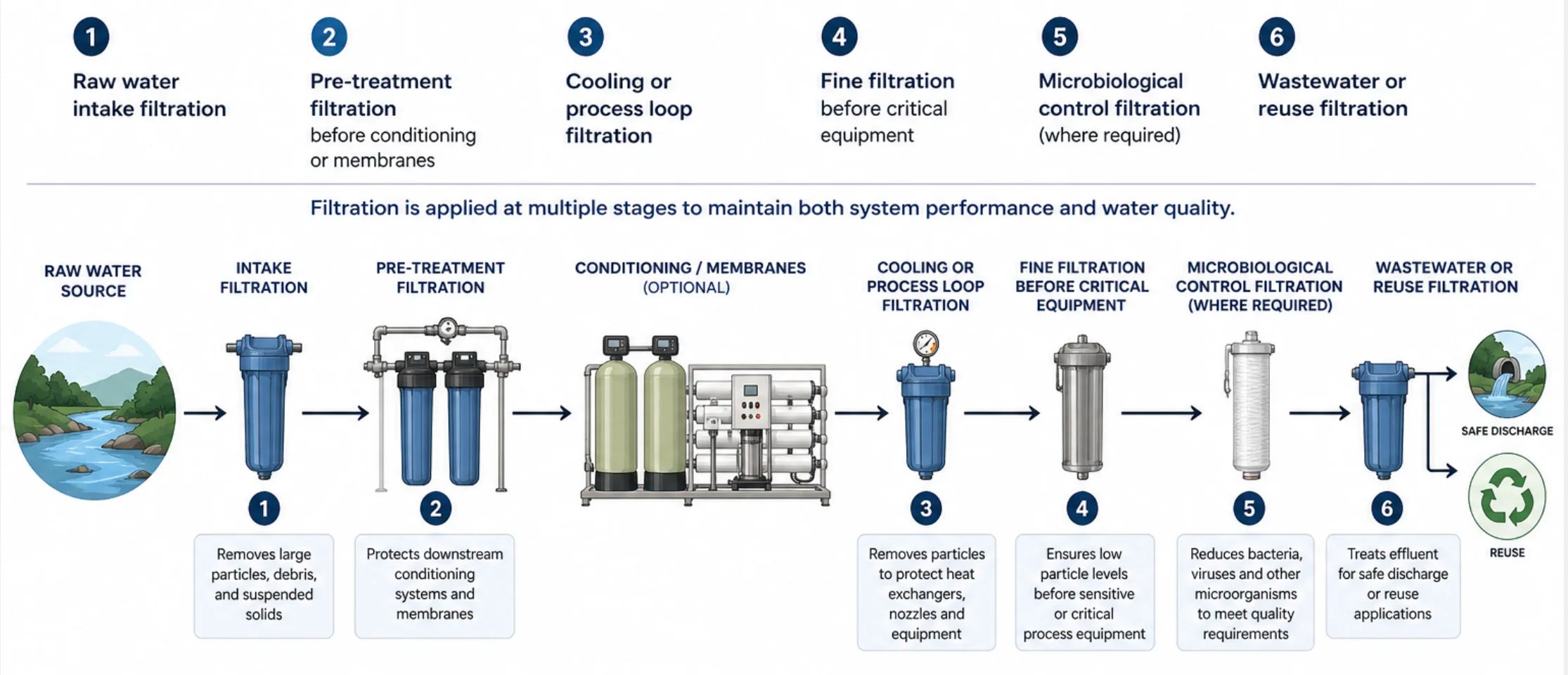

System Overview
A typical water treatment and process water system includes:
- Raw water intake filtration
- Pre-treatment filtration before conditioning or membranes
- Cooling or process loop filtration
- Fine filtration before critical equipment
- Microbiological control filtration (where required)
- Wastewater or reuse filtration
Filtration is applied at multiple stages to maintain both system performance and water quality.
Improve water quality, system reliability, and product safety with engineered filtration
Frequently asked questions
What is process water filtration?
Filtration used to control water quality for use within industrial processes, including production, cleaning, and utilities.
Why is microbiological filtration important?
It reduces bacterial contamination in water that comes into contact with products, helping ensure safety and compliance.
What filtration is used in cooling water systems?
Self-cleaning and side-stream filtration systems are commonly used to control suspended solids.
Can filtration reduce biofouling?
Yes, by removing particles and reducing bacterial load, filtration helps limit biofilm formation.
Are polymeric housings suitable for water systems?
Yes, PP and PVDF housings are widely used where corrosion resistance is required, e.g. in salt water applications.
