Depth filter cartridges – technical overview

Depth filter cartridges are used for reliable particle reduction by capturing contaminants throughout the filter matrix rather than only on the surface. This filtration principle supports stable performance in applications with higher solids loading and is commonly selected when longer service life is required.

Filtration principle

Depth filtration retains particles within a three-dimensional structure. Compared to surface filtration, this typically results in higher dirt-holding capacity and a more gradual pressure increase over the service cycle. Depth filters are frequently applied as pre-filtration to protect downstream membranes, instruments and final filtration stages.

Depth filter constructions and materials

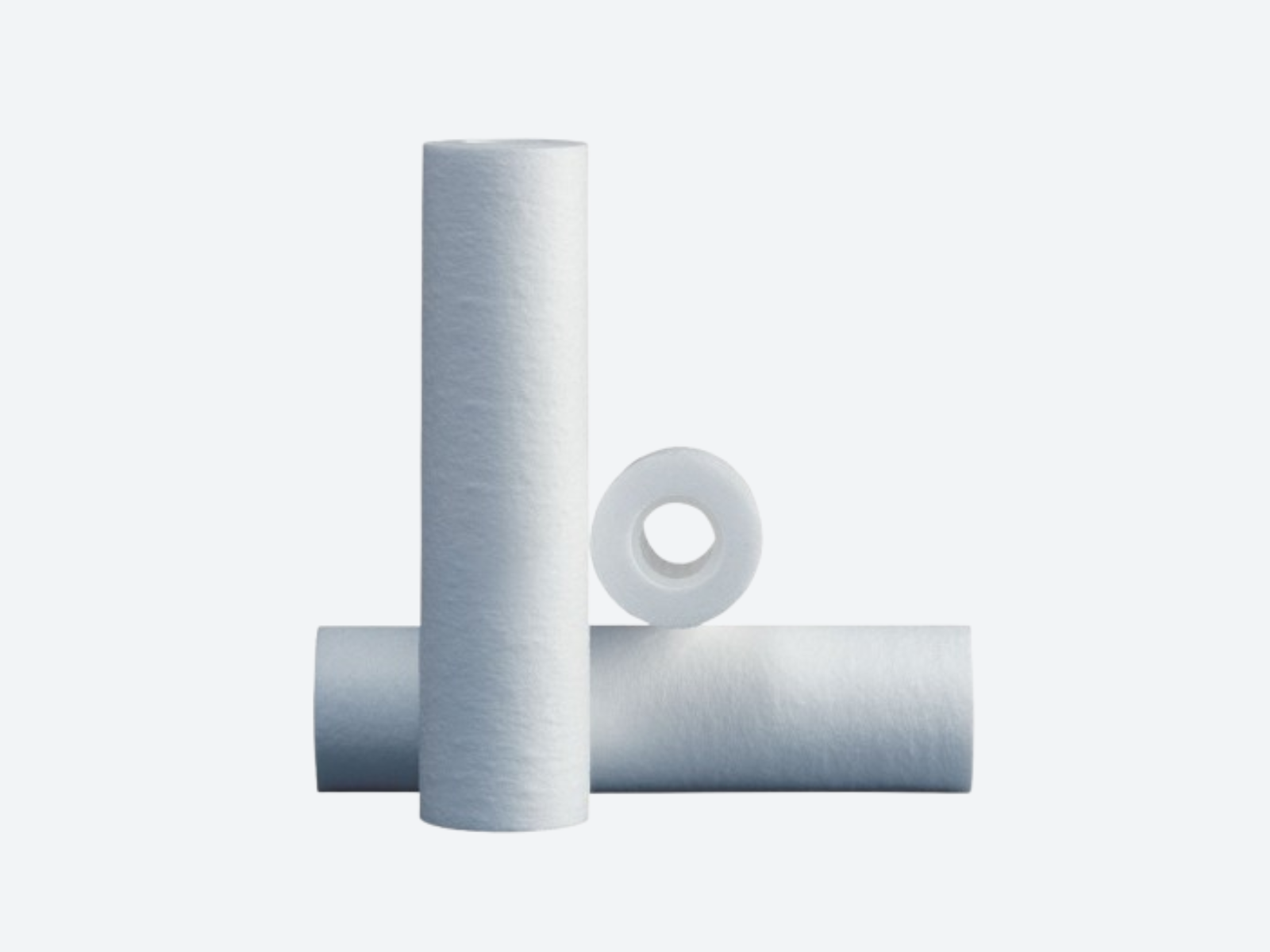

• Melt-blown cartridges – available in polypropylene and nylon media, offering a consistent structure for general industrial and water filtration applications

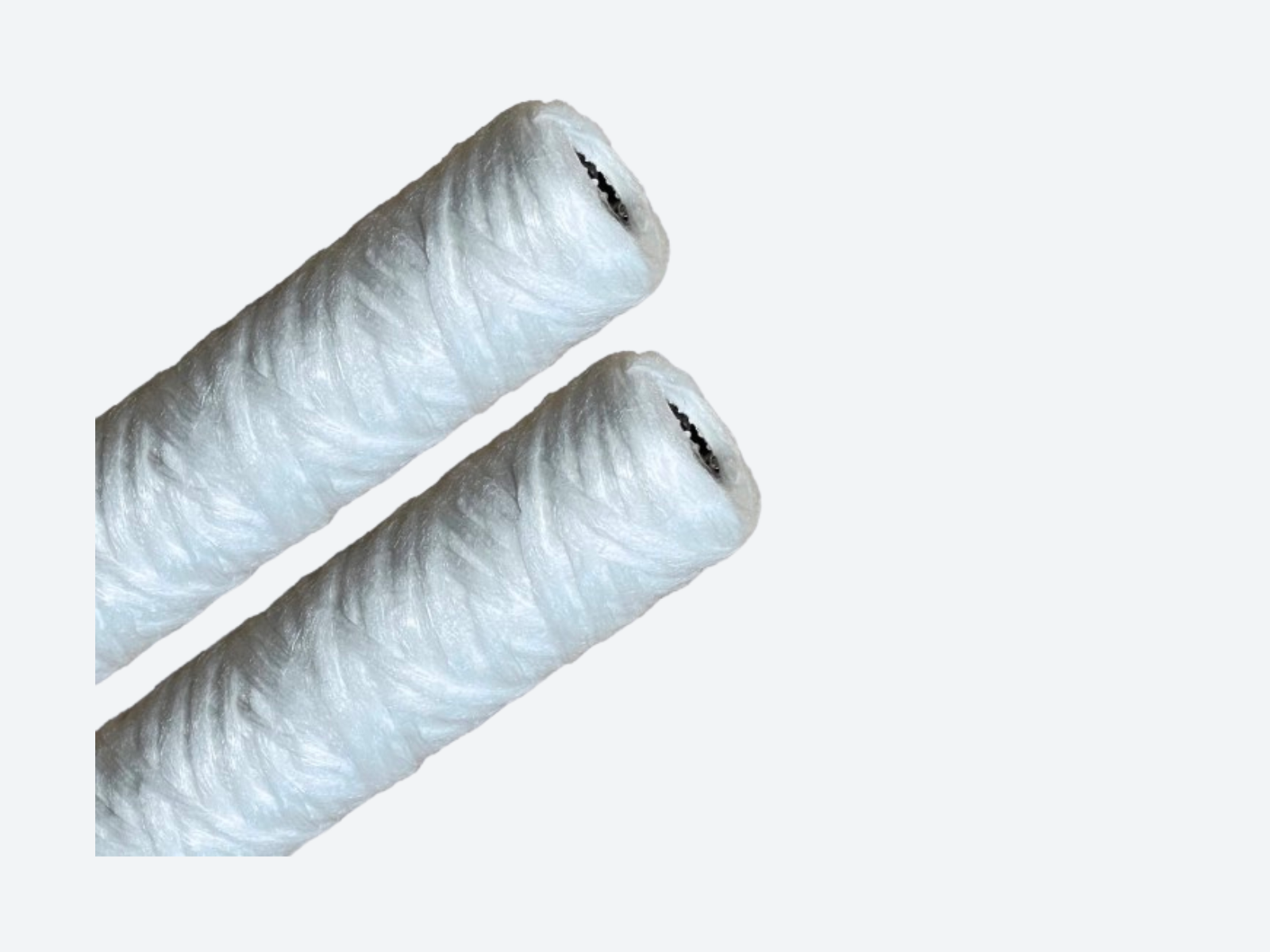

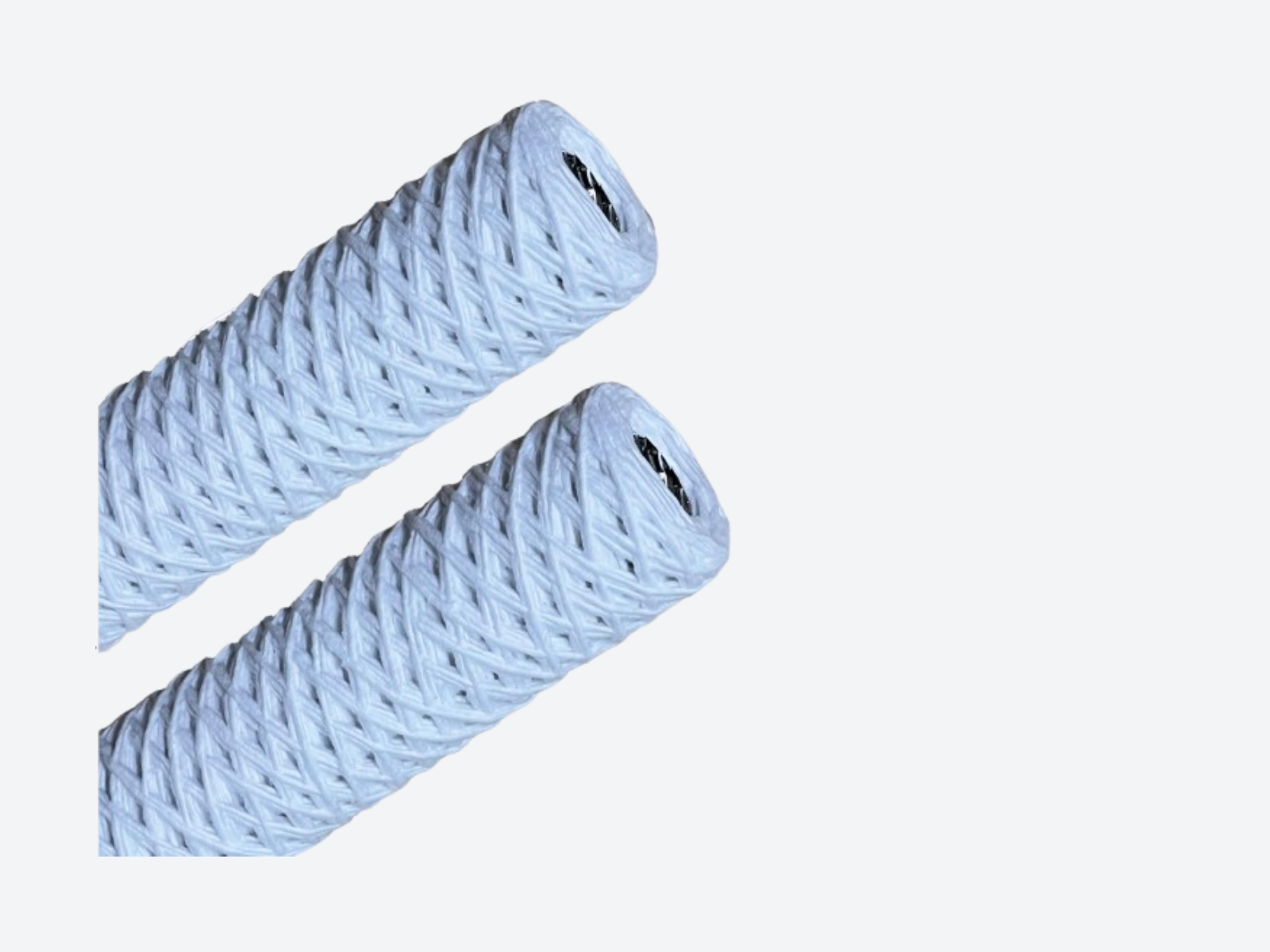

• Wound cartridges – manufactured using various yarn materials such as nylon, cotton and polypropylene, wound on different core types including polypropylene, steel or stainless steel (AISI 304/316), allowing configuration for a wide range of process conditions
• Resin bonded cartridges – rigid depth media with good mechanical strength and a stable pore structure for demanding operating environments

Retention ratings

• Nominal rated – removes a stated percentage of particles at the given micron size, typically applied for general pre-filtration
• Absolute rated – defined retention efficiency at a specific micron size, used where predictable and reproducible performance is required
• High efficiency – enhanced depth media providing higher retention efficiency while maintaining practical dirt-holding capacity

Housing formats and dimensions

Depending on the construction and application, selected melt-blown and wound depth filter cartridges are also available in larger diameter formats such as Big Blue configurations. Availability depends on media type, micron rating and cartridge design.

Typical applications

• Pre-filtration for membrane systems (e.g. reverse osmosis)
• Process water and utility water filtration
• Chemical and industrial fluid filtration
• Protection of pumps, valves, spray nozzles and heat exchangers

Key selection criteria

• Required retention rating (nominal, absolute or high efficiency)
• Contaminant load and required service life (dirt-holding capacity)
• Media material and core compatibility with the process fluid
• Operating temperature, pressure and chemical exposure
• Cartridge dimensions, end caps and housing configuration

Depth filter cartridges are also commonly referred to as sediment cartridges or pre-filter cartridges, depending on the industry and their position in the filtration train.

Depth filter cartridges are frequently used upstream of high flow filter cartridges or reverse osmosis cartridges to protect downstream filtration stages.
