Product description
Industrial pressure vessels are used in water treatment systems to contain filtration or ion exchange media such as resins, activated carbon, or specialty treatment materials. These vessels provide a durable housing for media beds used in softening, deionization, dechlorination, and other purification processes. Constructed from reinforced composite materials with a high-density polyethylene liner, the vessels are designed for continuous operation in commercial and industrial water treatment installations.Technical overview

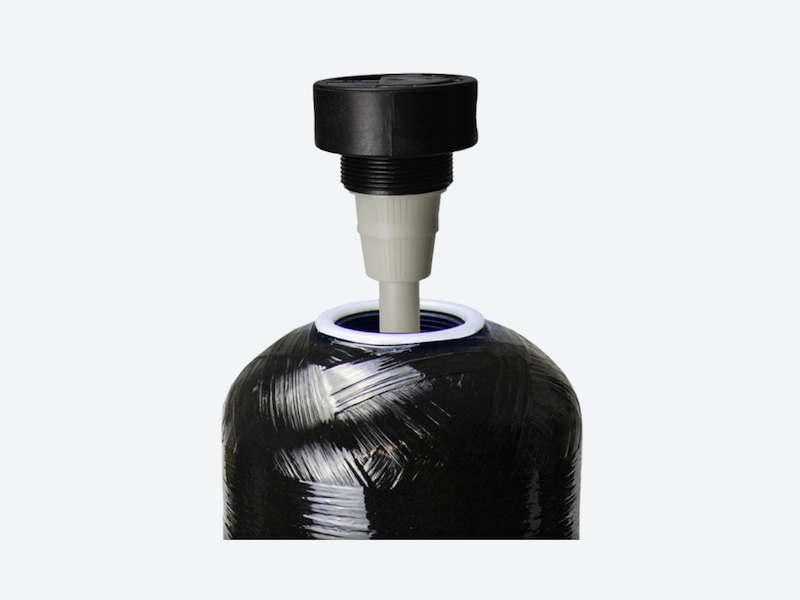

Pressure vessels are cylindrical tanks designed to hold water treatment media while allowing water to flow through the media bed for filtration or chemical exchange processes. The vessel includes a threaded neck connection that allows installation of a head assembly, riser tube, and distribution screens. Water enters the vessel, flows through the media bed where treatment occurs, and exits through the outlet connection. These vessels are compatible with a range of distribution heads and control valves used in filtration and ion exchange systems.Operating principle
Water enters the pressure vessel through an inlet connection installed in the vessel head. The water flows downward through the media bed where treatment occurs. Depending on the installed media, the vessel may perform filtration, adsorption, or ion exchange. Treated water is collected through the lower distribution system and exits through the outlet connection. During regeneration or backwashing cycles, the flow direction can be reversed to clean the media bed or restore ion exchange capacity.Material options
Typical materials of construction include:- Fibreglass reinforced composite outer shell
- High density polyethylene (HDPE) internal liner
- HDPE neck insert thread
- Polymeric distribution components
- Elastomer sealing elements
Available micron ratings
Pressure vessels themselves do not determine filtration micron rating. Filtration performance is determined by the treatment media installed inside the vessel, which may include:- Ion exchange resins
- Activated carbon media
- Granular filtration media
- Specialty adsorption media
Design and construction
The pressure vessels feature reinforced composite construction designed for durability and pressure resistance in water treatment systems. Typical design characteristics include:- Composite vessel with fibreglass reinforcement
- HDPE internal liner for chemical compatibility
- Threaded 2.5 inch neck connection
- Compatibility with riser tubes and distribution screens
- Operating temperature range: 1–50°C
- Working pressure up to 10.5 bar
- Pressure tested up to 42 bar
- Cycle pressure tested for extended service life

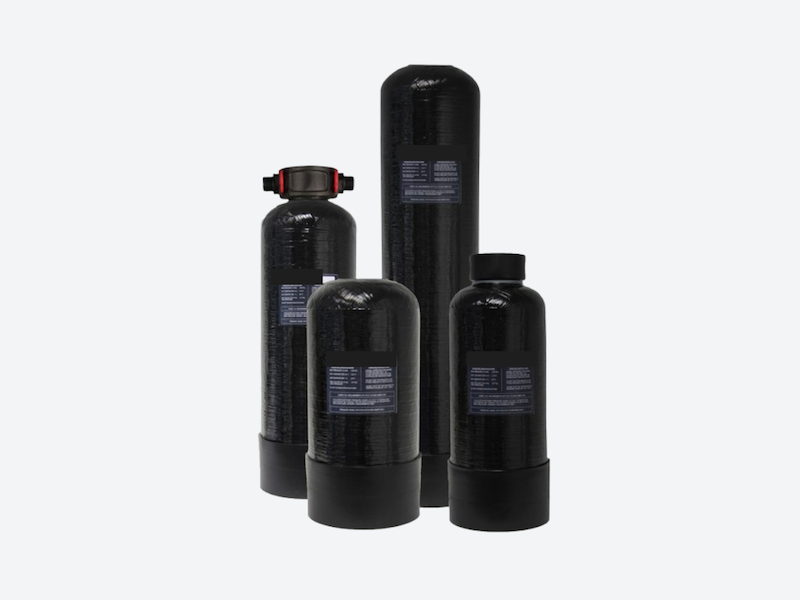

Available vessel volumes
Pressure vessels are available in multiple sizes to accommodate different media volumes and system flow requirements.| Media Volume | Tank Size (Diameter × Height) |
|---|---|
| 4.6 L | 6 × 13 |
| 6.8 L | 6 × 18 |
| 8.5 L | 7 × 17 |
| 10.5 L | 8 × 17 |
| 14.4 L | 8 × 22 |
| 15.8 L | 7 × 30 |
| 19.1 L | 7 × 35 |
| 23.6 L | 8 × 35 |
| 31.3 L | 8 × 44 |
| 38.3 L | 10 × 35 |
| 48.8 L | 10 × 44 |
| 59.8 L | 11 × 44 |
| 61.0 L | 10 × 54 |
| 84.8 L | 13 × 44 |
| 105.7 L | 13 × 54 |
Typical applications
Pressure vessels are widely used in water treatment and process filtration systems, including:- Water softening systems
- Ion exchange demineralisation systems
- Activated carbon filtration
- Dechlorination systems
- Nitrate removal systems
- Heavy metal removal systems
- Industrial process water treatment
- Commercial building water treatment
Key benefits
- Composite construction with fibreglass reinforcement
- HDPE internal liner for corrosion resistance
- High pressure resistance for industrial applications
- Compatible with multiple treatment media
- Wide range of available vessel capacities
- Designed for refillable media systems
- Suitable for filtration and ion exchange processes
Configuration and quotation
To specify the correct pressure vessel for a water treatment system, the following parameters should be defined:- Required media volume
- Media type (resin, carbon, or filtration media)
- Distribution head configuration
- Connection port size
- Operating pressure and temperature
- System flow rate
