Product description

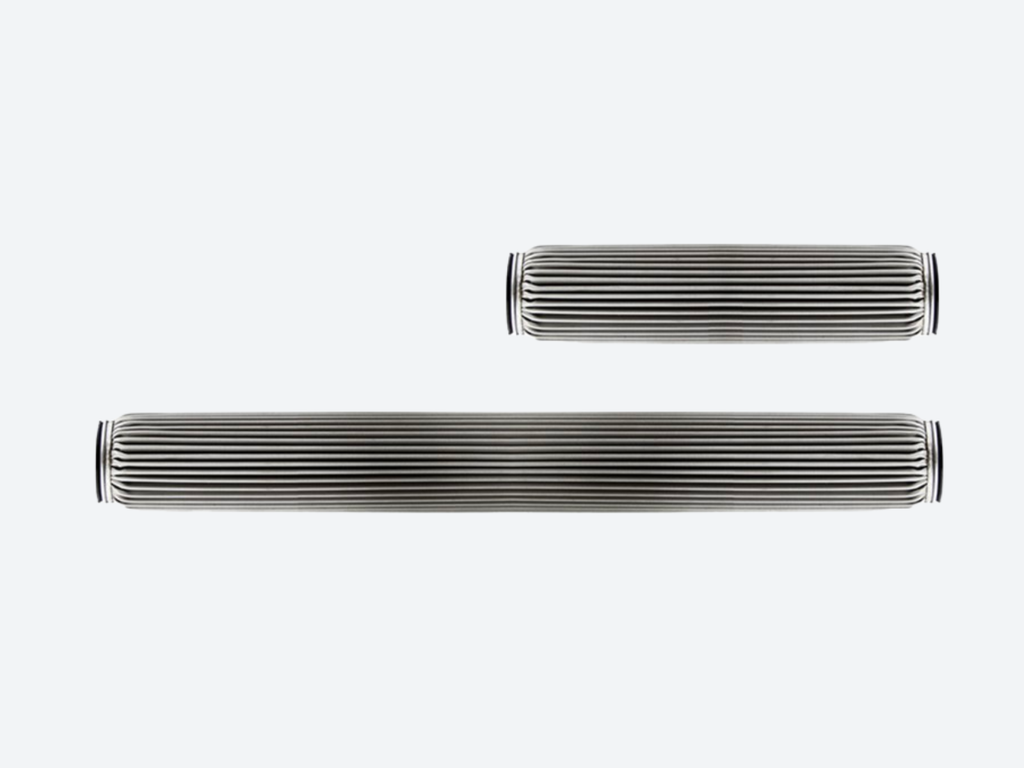

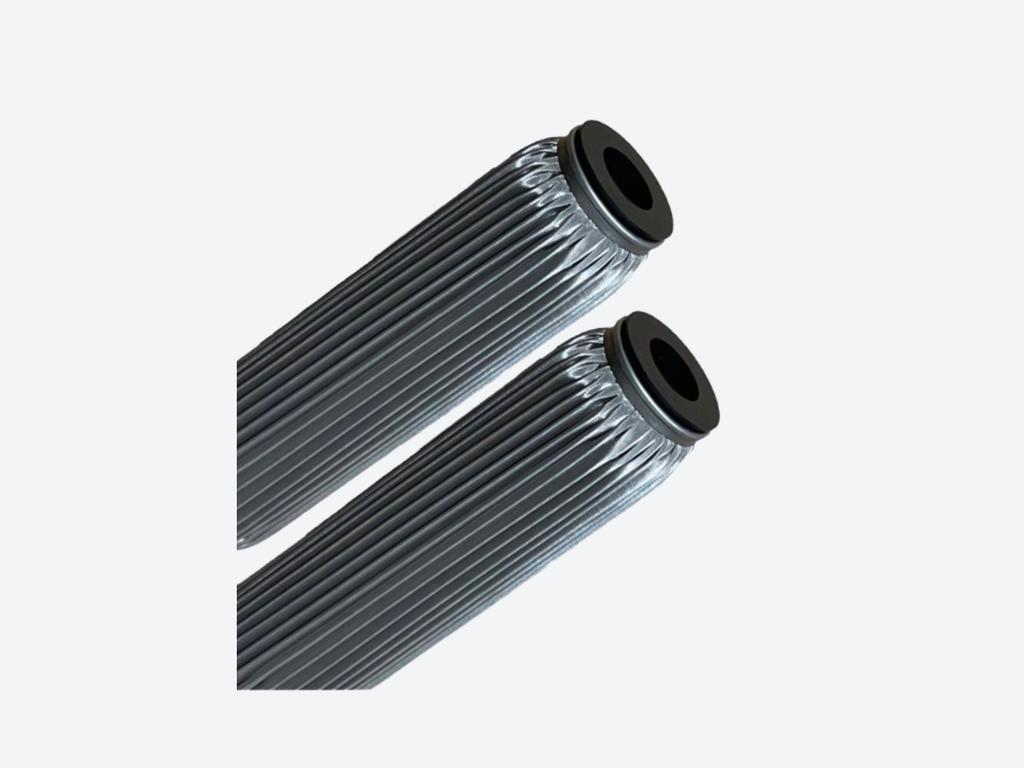

Pleated stainless steel filter cartridge for high flow and long service life
INOX Standard Pleated Metallic Filter Cartridges are designed for demanding liquid filtration applications where high flow rates, mechanical strength and cleanable construction are required. The all-welded pleated stainless steel design provides a significantly larger filtration surface compared to non-pleated metallic cartridges, resulting in improved permeability and longer operating cycles.
The enhanced media construction, with support layers positioned on both sides of the filtration layer, increases rigidity and dirt holding capacity. This allows the cartridge to operate reliably in high viscosity fluids and heavily loaded process streams.
Filtration principle
INOX Standard cartridges operate using surface and depth filtration through pleated stainless steel mesh. Process fluid flows from outside to inside the cartridge, with particles retained on and within the pleated mesh structure.
This filtration method provides:
-
stable filtration performance
-
high dirt holding capacity
-
low pressure drop at high flow rates
-
suitability for repeated cleaning and reuse
The pleated design maximises effective filtration area within a compact cartridge format.
Construction and materials
INOX Standard Pleated Metallic Filter Cartridges are manufactured entirely from stainless steel components and feature an all-welded construction.
Materials of construction
-
Filter media: 316L stainless steel
-
Support media: 316L stainless steel
-
Core: 316L stainless steel
-
Outer cage (optional): 316L stainless steel
-
Seals: Buna-N, EPDM, PTFE (Teflon®) or Viton®
The all-metal construction allows operation in aggressive process environments and supports thermal and chemical cleaning methods.
Performance characteristics
Typical performance characteristics include:
-
filtration efficiency of approximately 90 percent
-
over three times the surface area compared to non-pleated metallic cartridges
-
increased permeability for higher flow operation
-
extended operating cycles between cleaning
The enhanced support structure prevents media deformation under high differential pressure.
Available micron ratings
INOX Standard Pleated Metallic Filter Cartridges are available in the following micron ratings:
-
40 micron
-
75 micron
-
100 micron
-
250 micron
-
500 micron
-
850 micron
Dimensions and configurations
Standard configurations
-
Lengths: 9¾", 10", 20", 30", 40"
-
Diameter: regular (2.5")
End cap and sealing options
-
End cap: open gasket type
-
Seal materials: Buna-N, EPDM, PTFE, Viton®
Operating limits
Typical operating limits include:
-
maximum operating temperature: 260 °C
-
maximum operating pressure differential: 4.2 bar
-
maximum reverse pressure differential: 1.0 bar
Exact operating limits depend on cartridge length, micron rating and process conditions.
Typical applications
INOX Standard Pleated Metallic Filter Cartridges are commonly used in:
-
chemical processing
-
petrochemical applications
-
polymer and resin filtration
-
oil and fuel filtration
-
high temperature liquid processes
-
high viscosity fluids
-
systems requiring cleanable and reusable filtration
They are ideal where disposable filter cartridges are not suitable.
Key benefits
-
All-welded stainless steel construction
-
Large pleated filtration surface
-
High flow capability
-
Long service life
-
Reusable and cleanable design
-
Suitable for high temperature operation
-
Reduced cartridge change and cleaning frequency
Installation considerations
For optimal performance, INOX Standard cartridges should be installed:
-
in housings designed for metallic pleated cartridges
-
with correct seal material selected for the process fluid
-
at flow rates appropriate for the selected micron rating
Proper cleaning procedures extend cartridge life and maintain filtration efficiency.
