Product description
Softening resin cartridge for hardness reduction and scale prevention

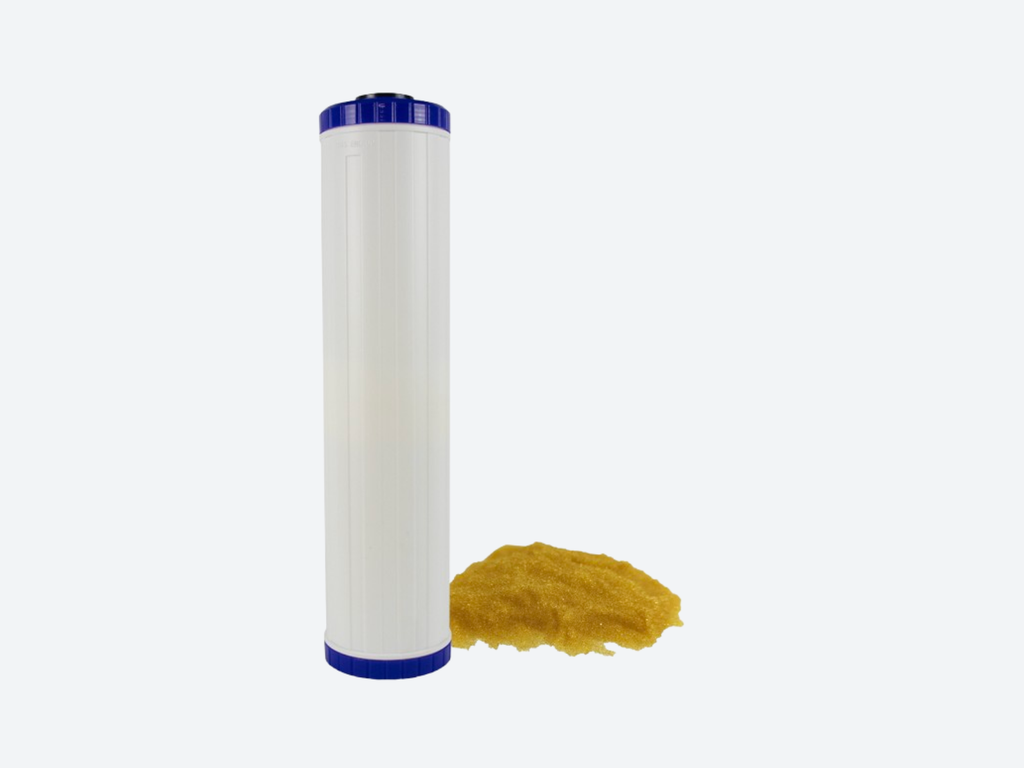

The Softening Resin Filter Cartridge is designed to reduce calcium and magnesium hardness from water supplies, helping to prevent scale formation that can lead to reduced efficiency, increased energy consumption and premature equipment failure. These cartridges provide an effective solution for applications where full scale control and hardness reduction are required within a compact cartridge format.
Softening resin cartridges are commonly used in small commercial and technical systems where continuous hardness reduction is needed without installing large regeneration-based softeners.
Filtration principle
The softening cartridge operates using ion exchange. As water passes through the cartridge, calcium and magnesium ions responsible for hardness are exchanged for sodium ions retained on the resin.
This process provides:
-
effective reduction of total hardness
-
prevention of scale formation
-
protection of heat transfer surfaces
-
improved operational efficiency of equipment
The cartridge continues to operate until the resin exchange capacity is exhausted.
Filter media
The cartridge is filled with a strong acid cation gel-type resin in sodium form.
Key characteristics of the media include:
-
high capacity hardness reduction
-
excellent mechanical strength
-
stable performance at low pressure drop
-
suitability for continuous operation
The resin is designed to withstand repeated hydraulic loading during normal operation.
Performance characteristics
Typical performance characteristics include:
-
efficient reduction of calcium and magnesium hardness
-
predictable treated water volume based on inlet hardness
-
stable pressure drop throughout service life
Actual cartridge capacity depends on inlet hardness level, cartridge size and system flow rate.
Operating conditions
Typical operating parameters include:
-
operating temperature range from 4 to 45 °C
-
maximum operating pressure of 5.5 bar
-
maximum pressure differential of 1.0 bar
-
suitable for cold water applications
The cartridge is intended for use with water containing dissolved hardness minerals.
Cartridge configurations
Softening resin cartridges are available in the following configurations:
-
cartridge lengths: 10 inch and 20 inch
-
diameter options: standard diameter and large diameter (Big Blue)
Large diameter cartridges provide increased resin volume and extended service life for higher flow or hardness conditions.
Typical applications
Softening resin cartridges are commonly used in:
-
small boiler feed systems
-
heat exchangers
-
steam ovens
-
closed loop water systems
-
technical and process water applications
They are ideal where controlled hardness reduction is required in a compact system.
Key benefits
-
Reduces calcium and magnesium hardness
-
Prevents scale formation
-
Protects heat transfer equipment
-
Compact cartridge format
-
Low pressure drop
-
Simple installation and replacement
-
Available in multiple cartridge sizes
Installation considerations
For optimal performance, softening resin cartridges should be installed:
-
after sediment pre filtration
-
upstream of scale sensitive equipment
-
in housings compatible with the selected cartridge diameter
Flow rate control ensures sufficient contact time for effective hardness reduction.
Configuration and quotation
Softening resin cartridges are supplied based on cartridge length and diameter. Selection depends on:
-
inlet water hardness
-
required treated water volume
-
system flow rate
-
housing compatibility
Filtra International provides technical support to ensure correct cartridge selection and system configuration.
