Product description

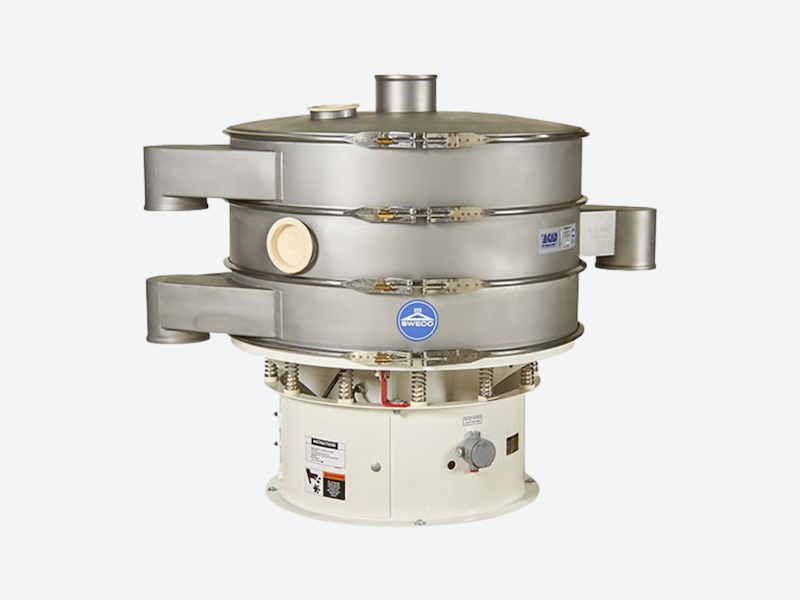

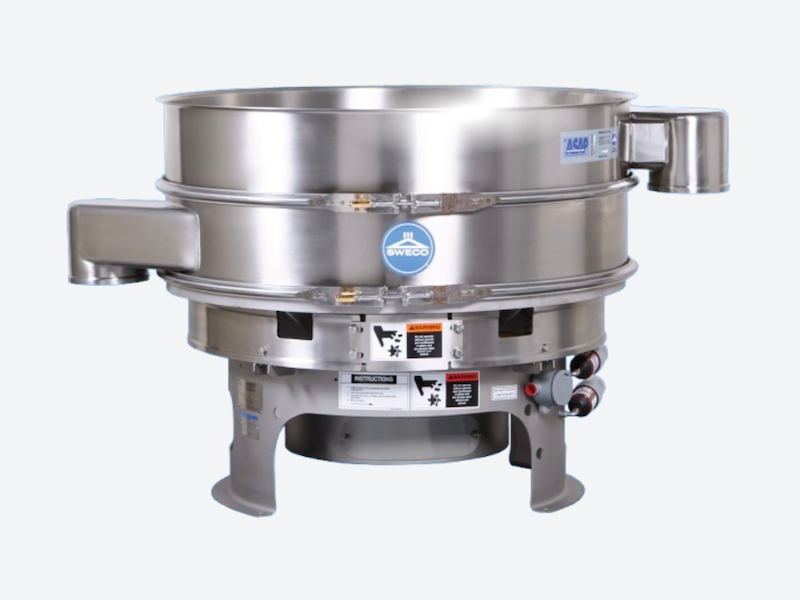

A round vibratory separator is a circular screening system used for particle separation, grading, and solid-liquid separation in industrial processes. It is designed to classify powders, granules, and slurries using a tensioned screen surface and controlled vibratory motion.Technical overview
This type of separator is used where consistent particle size control and reliable process separation are required. The system typically consists of a circular screen frame, a vibratory drive assembly, and one or more screening decks. Feed material enters at the center of the screen. During operation, vibration moves the material across the screen surface. Particles smaller than the selected screen opening pass through the mesh, while oversize particles move outward to the discharge outlet. The separator can be configured according to the required screen opening, separator diameter, and material of construction.Operating principle
The separator operates by means of a vibratory motor with adjustable eccentric weights. This creates multi-plane motion across the screen surface, combining vertical and horizontal movement. As the material travels over the screen, undersize particles pass through the mesh openings. Oversize material remains on the screen and is discharged separately. The selected screen opening determines the cut point of the separation process. Machine diameter affects screening area and throughput capacity, while the material of construction is selected according to corrosion resistance, hygiene requirements, and process conditions.Material options
Typical material options include:- Carbon Steel
- Stainless Steel 304
- Stainless Steel 316
- Stainless Steel 316L
Available screen openings
Typical screen opening options include:- 20 µm
- 25 µm
- 32 µm
- 38 µm
- 45 µm
- 53 µm
- 63 µm
- 75 µm
- 90 µm
- 106 µm
- 125 µm
- 150 µm
- 180 µm
- 212 µm
- 250 µm
- 300 µm
- 355 µm
- 425 µm
- 500 µm
- 600 µm
- 710 µm
- 850 µm
- 1 mm
- 1.18 mm
- 1.4 mm
- 1.7 mm
- 2 mm
- Custom screen opening
Design and construction
The separator is built with a circular screening frame and can be supplied in different standard diameters. Typical separator diameter options include:- 18" (460 mm)
- 24" (610 mm)
- 30" (760 mm)
- 40" (1016 mm)
- 48" (1219 mm)
- 60" (1524 mm)
- 72" (1829 mm)
- Custom diameter
Typical applications
Typical industrial applications include:- Powder classification
- Particle size separation
- Safety screening
- Solid-liquid separation
- Slurry filtration
- Food ingredient screening
- Chemical powder processing
- Mineral and metal powder screening
- Plastic resin classification
- Recycling and recovery processes
Key benefits
Key technical benefits include:- Controlled particle size separation
- Wide range of available screen openings
- Multiple standard separator diameters
- Material selection for different process conditions
- Continuous screening performance
- Suitable for dry and wet applications
- Flexible deck configuration
- Replaceable screening media
Configuration and quotation
To specify the correct round vibratory separator, the following parameters are typically required:- Required screen opening
- Separator diameter
- Material of construction
- Product type and bulk density
- Required capacity or throughput
- Dry or wet operation
- Number of screening decks
- Process temperature
- Chemical compatibility requirements
- Installation environment and industry standard requirements
