Product description

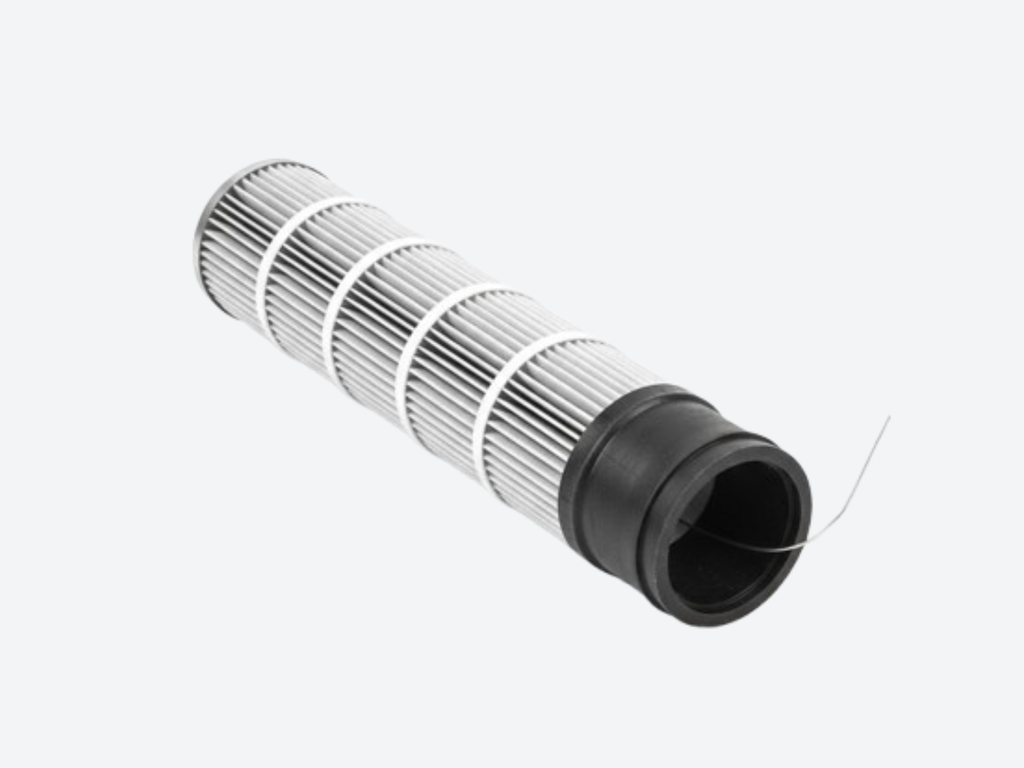

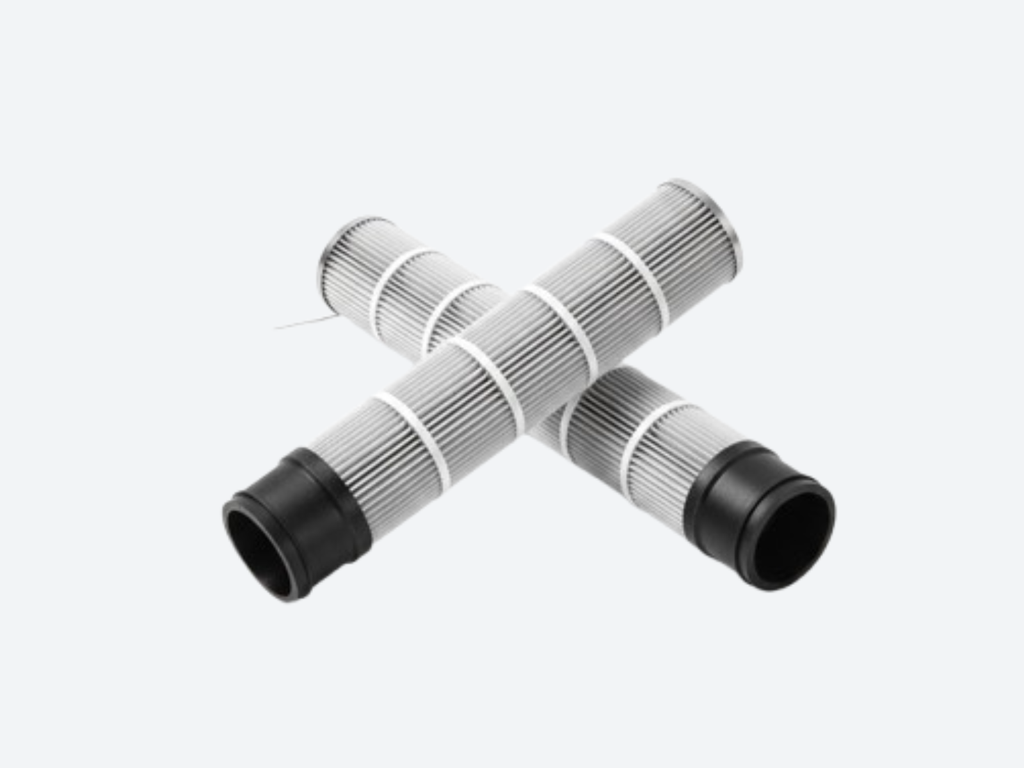

Pleated bag filter cartridges (bottom loader type) are designed for installation from the dirty air side of dust collection systems. They provide high filtration efficiency and increased surface area within a compact footprint.
Technical overview
Bottom loader pleated bag filters are cylindrical cartridges constructed with pleated filter media and reinforced by metal mesh supports. These filters are installed from below, making them suitable for systems where access is limited to the dirty air chamber. Typical lengths range from 300 mm to 2000 mm. :contentReference[oaicite:2]{index=2}
Operating principle
Air containing particulate matter flows through the pleated media, where dust is captured on the surface and within the fiber matrix. Clean air exits through the inner core. The pleated design increases filtration area, reducing air velocity and improving dust release during pulse-jet cleaning cycles.
Material options
- Cellulose media
- Polyester media
- Blended media
- Nano-coated media
- PTFE membrane media
- Flame-retardant media
- Water/oil repellent media
Efficiency ranges from standard filtration (M5) to high-efficiency (H13) depending on media selection.
Available efficiencies
- ePM10
- ePM2.5
- Fine filtration (F7–F9)
- High-efficiency filtration (E10–H13)
Design and construction
- Pleated media with approx. 15 mm pleat height
- Inner and outer perforated galvanized steel mesh
- Polyurethane or metal caps
- Optimized for bottom-side installation
Typical configurations:
- Outer diameter: 125 mm, 145 mm, 156 mm
- Inner diameter: 78 mm, 80 mm, 94 mm
- Length: 300–2000 mm
Typical applications
- Cement and bulk material processing
- Metalworking and welding fumes
- Powder handling systems
- Chemical processing plants
- General industrial dust collection
Key benefits
- High dust holding capacity
- Efficient pulse-jet cleaning
- Compact design with large filtration area
- Flexible installation in existing systems
- Wide media compatibility
Configuration and quotation
- Outer diameter (OD)
- Inner diameter (ID)
- Length
- Media type
- Efficiency class
- Operating conditions
- Dust characteristics
- Mounting configuration
