Product description

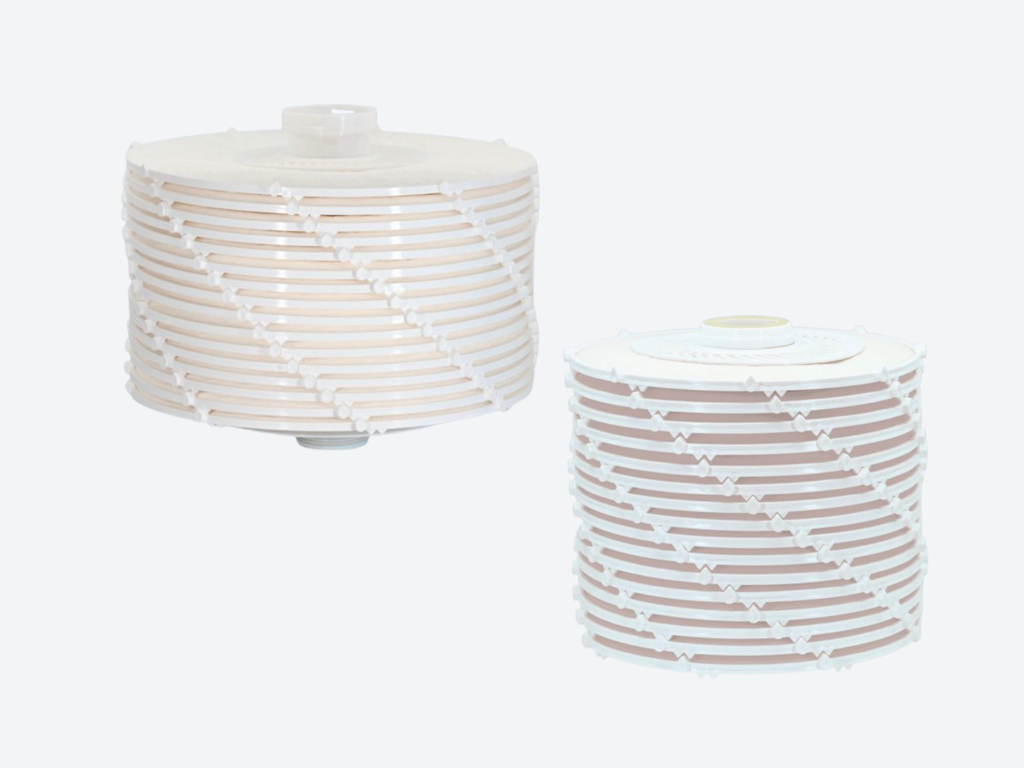

Depth filter modules are lenticular filtration units designed for closed-system liquid filtration in industrial processing environments. The modules integrate multiple depth filter sheets into a compact stacked configuration, providing high filtration surface area within a single disposable module. These filtration modules enable efficient clarification, polishing, and particle reduction of liquids while minimizing handling compared with traditional plate-and-frame sheet filtration.Technical overview

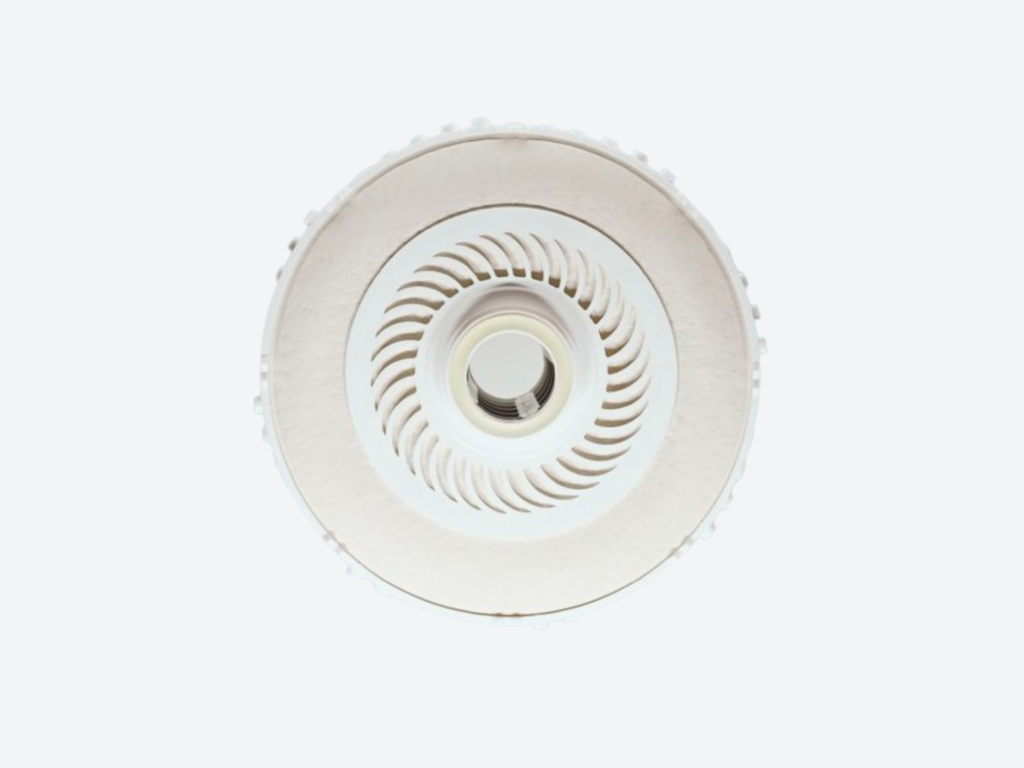

Lenticular filter modules contain multiple circular depth filter sheets stacked between polypropylene support plates. Liquid flows through the filter layers from the outside toward the internal core, where clarified liquid exits through a central outlet. The integrated design allows depth filtration to be performed in a sealed housing, reducing contamination risk, minimizing air contact, and eliminating sheet handling associated with traditional filter presses.Operating principle
During filtration, liquid enters the module housing and flows through the stacked lenticular filter sheets. Suspended particles are retained within the porous depth structure of the filtration media. Retention occurs through several mechanisms:- Mechanical particle interception within the fiber matrix
- Depth entrapment within internal filtration channels
- Adsorptive interactions on the filtration media surfaces
Material options
Typical construction materials include:- Depth filter sheet media (cellulose-based filtration matrix with filtration aids)
- Polypropylene structural components
- Elastomeric seals
- Silicone
- EPDM
- Viton
Available micron ratings
Depth filter modules are available in multiple filtration grades depending on the integrated filter sheet media. Typical nominal retention ratings include:- 0.2 µm
- 0.3 µm
- 0.4 µm
- 0.6 µm
- 0.8 µm
- 1 µm
- 2 µm
- 3 µm
- 4 µm
- 5 µm
- 6 µm
- 8 µm
- 11 µm
- 25 µm
Design and construction

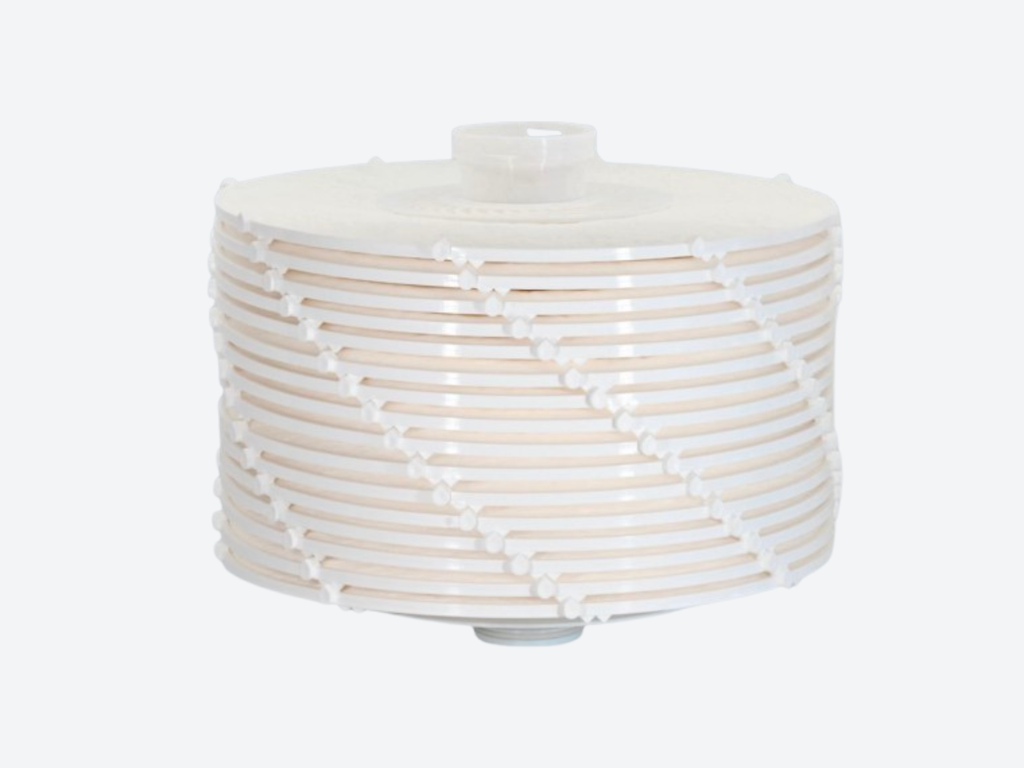

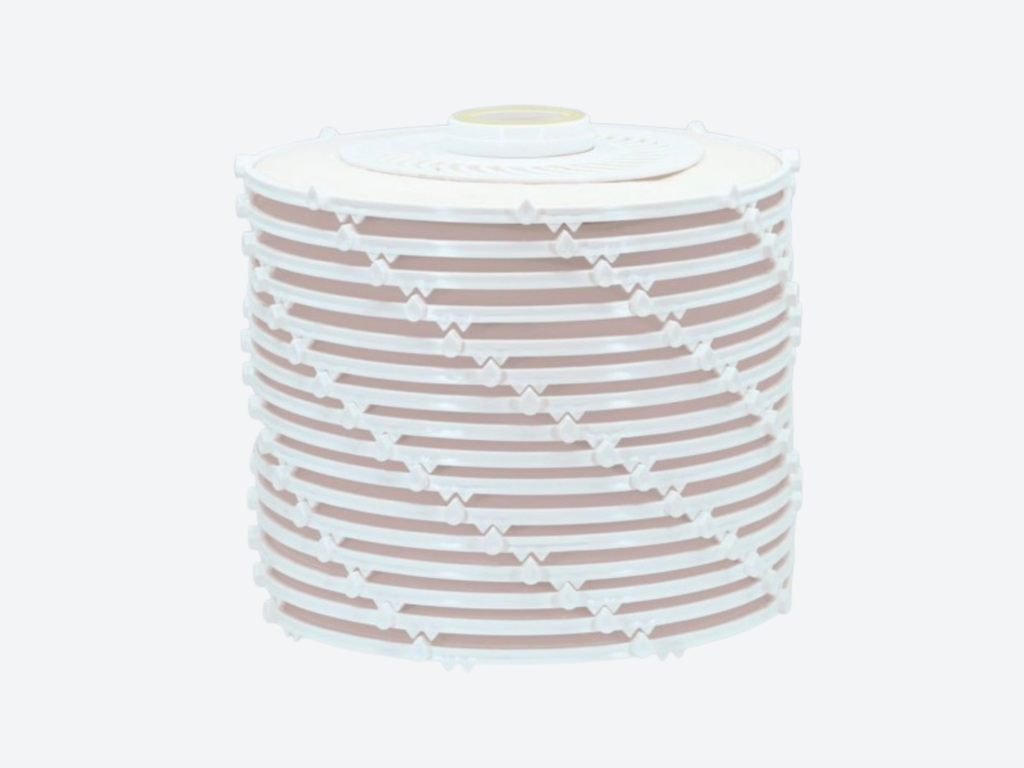

The modules consist of stacked circular filter sheets mounted in a polypropylene structure designed for mechanical stability and efficient liquid flow distribution. Typical module configurations include:- Module diameters: approximately 12 in (30 cm) or 16 in (40 cm)
- Number of filtration lenses: typically 16
- Filtration surface area: approximately 1.8 m² or 3.6 m² depending on module size
- Adapter connections: DOE (flat) or DOR (bayonet)
Typical applications
Depth filter modules are commonly used in liquid filtration processes including:- Wine filtration
- Beer filtration
- Filtration of alcoholic and non-alcoholic beverages
- Pharmaceutical and biotechnology processes
- Chemical and biochemical processing
- Cosmetics manufacturing
- General food processing filtration
Key benefits
- Closed filtration system reducing contamination risk
- Integrated depth filtration with high filtration surface area
- Reduced handling compared with plate-and-frame filter sheets
- Compact module design suitable for industrial filter housings
- Wide range of filtration grades for different clarification requirements
- Multiple seal and connection options for system compatibility
Configuration and quotation
To configure a depth filter module for your filtration system, the following parameters should be specified:- Required nominal retention rating (µm)
- Module diameter (12 inch or 16 inch)
- Number of filter lenses
- Adapter type (DOE or DOR)
- Seal material (Silicone, EPDM, Viton)
- Process liquid and operating temperature
- Housing compatibility and flow rate requirements
