Product description

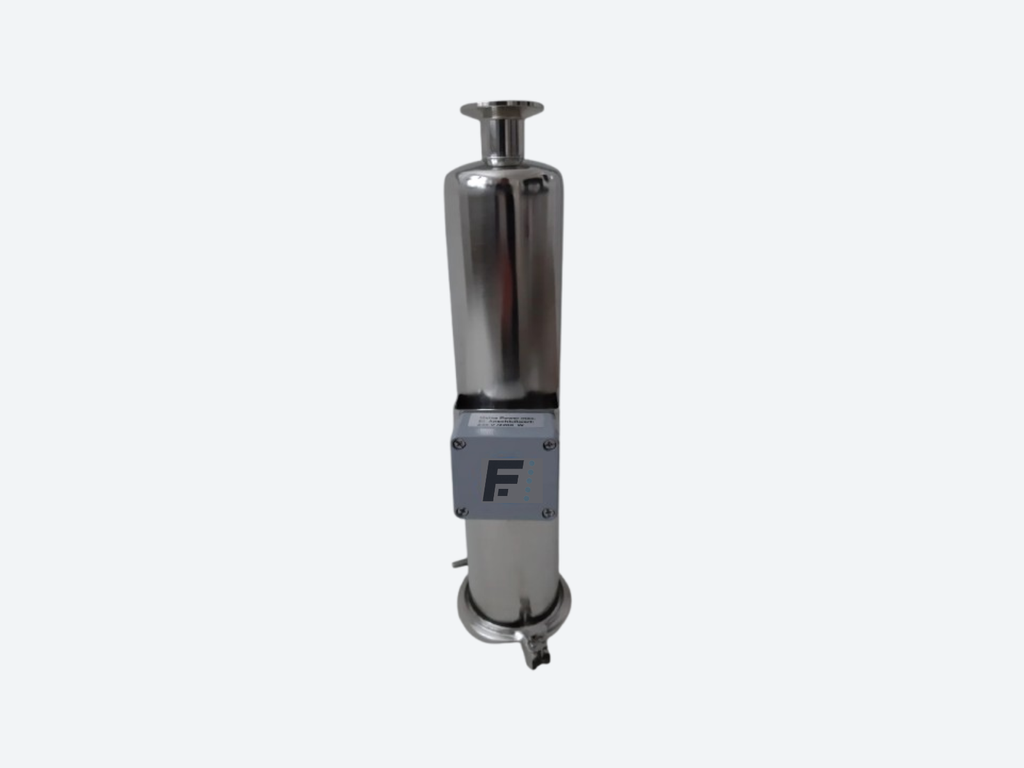

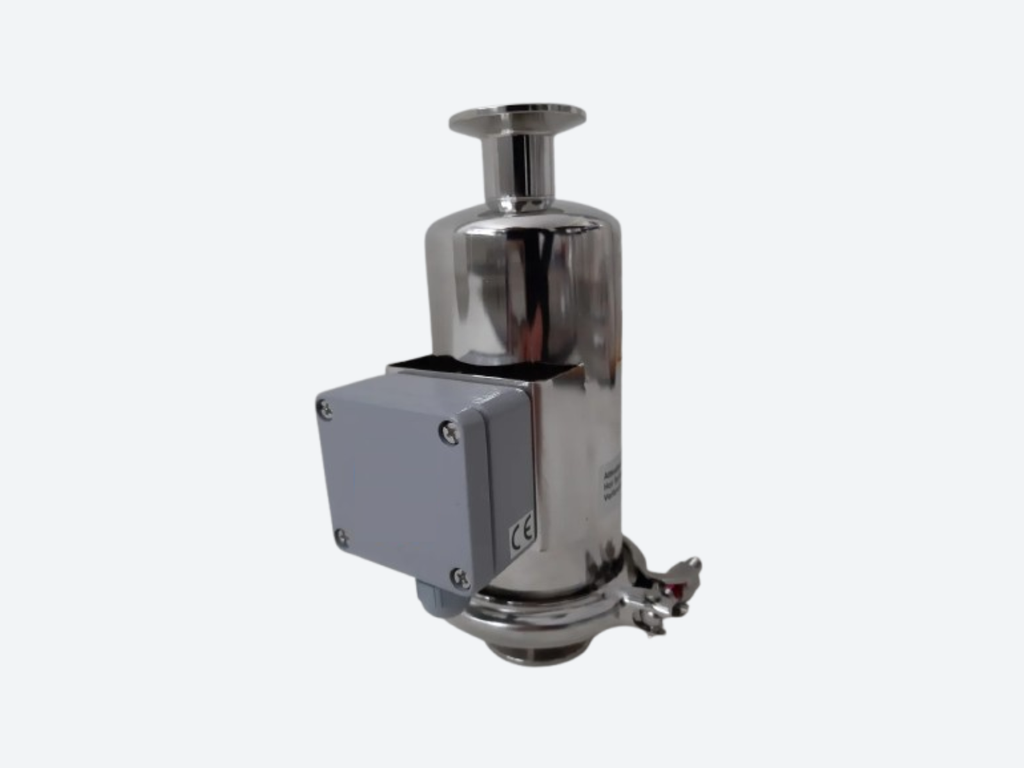

A filter dryer or pipe heater is used to dry membrane filters after integrity testing procedures such as water intrusion testing. The system provides controlled heating of the filter housing and connected piping in order to remove residual moisture from the filter element.
Technical overview
Certain membrane integrity tests, such as water intrusion testing, introduce water into the filter system during the validation process. Before the filter can be returned to service, the filter element must be properly dried.
A filter dryer or pipe heater provides controlled heating of the filter housing and surrounding piping, allowing moisture to evaporate from the filter structure and ensuring the filter is returned to its normal operating condition.
Operating principle
The filter dryer applies controlled heat to the filter housing and connected pipe sections. As the temperature increases, residual water trapped in the filter media and housing begins to evaporate.
The warm air or heated surfaces accelerate the drying process and help restore the original hydrophobic properties of the filter membrane.
Controlled heating ensures that the drying process is uniform and prevents condensation within the filtration system.
Material options
Filter drying systems are typically constructed from materials compatible with industrial filtration installations.
- Stainless steel heating components
- Industrial heating elements
- Thermally insulated pipe sections
- Temperature control instrumentation
Material selection depends on the filtration process and operating environment.
Available micron ratings
The drying system does not influence the filtration rating of the filter. Instead, it is used with cartridge filters or membrane filters that require drying after integrity testing.
Typical filters used with drying systems include:
- Hydrophobic PTFE membrane filters
- Sterile gas filtration cartridges
- Membrane filters used in integrity testing procedures
Design and construction
Filter dryers and pipe heaters are designed to integrate with existing filtration systems and integrity testing equipment.
Typical design features include:
- Heated pipe sections or heating jackets
- Temperature control systems
- Compatibility with filter housings
- Industrial-grade heating elements
The system is designed to ensure reliable drying of filters after integrity testing procedures.
Typical applications
- Drying filters after water intrusion testing
- Filter preparation after validation procedures
- Pharmaceutical sterile filtration systems
- Biotechnology filtration processes
- High-purity gas filtration systems
Key benefits
- Controlled drying of membrane filters
- Restoration of filter operating conditions after testing
- Compatible with integrity testing systems
- Suitable for laboratory and production environments
- Reduced downtime after filter validation procedures
Configuration and quotation
To configure a filter dryer or pipe heater, the following parameters should be specified:
- Filter housing size
- Pipe diameter
- Required operating temperature
- Heating system type
- Installation environment
Providing this information allows the drying system configuration to be matched to the filtration installation.
