Product description

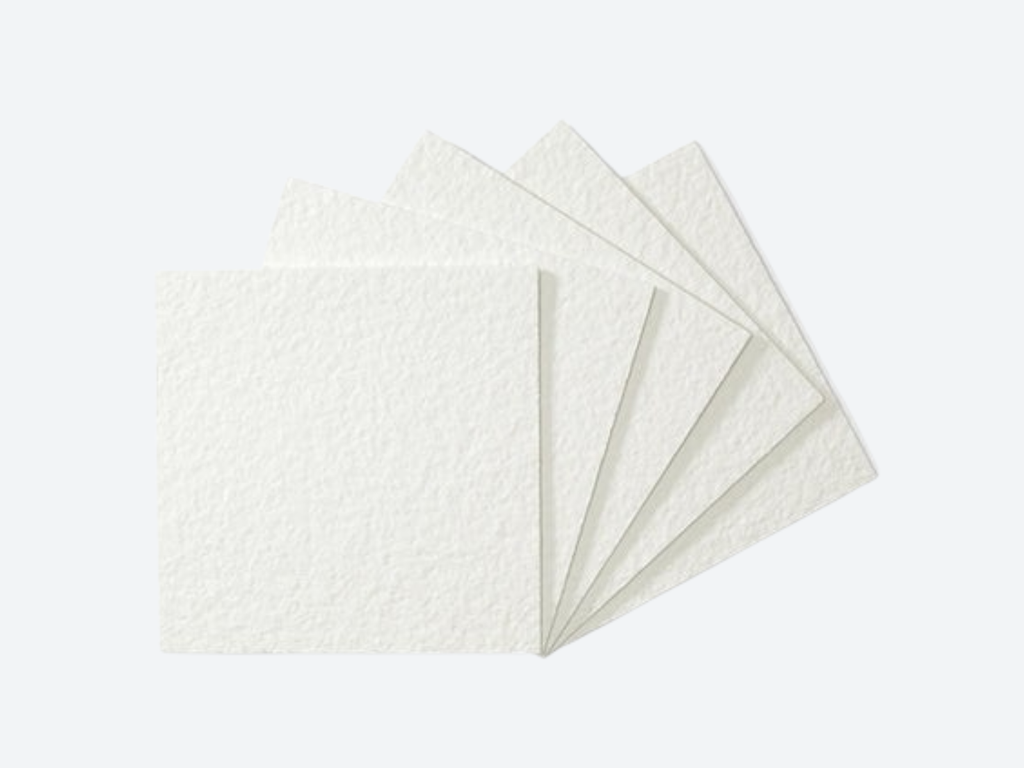

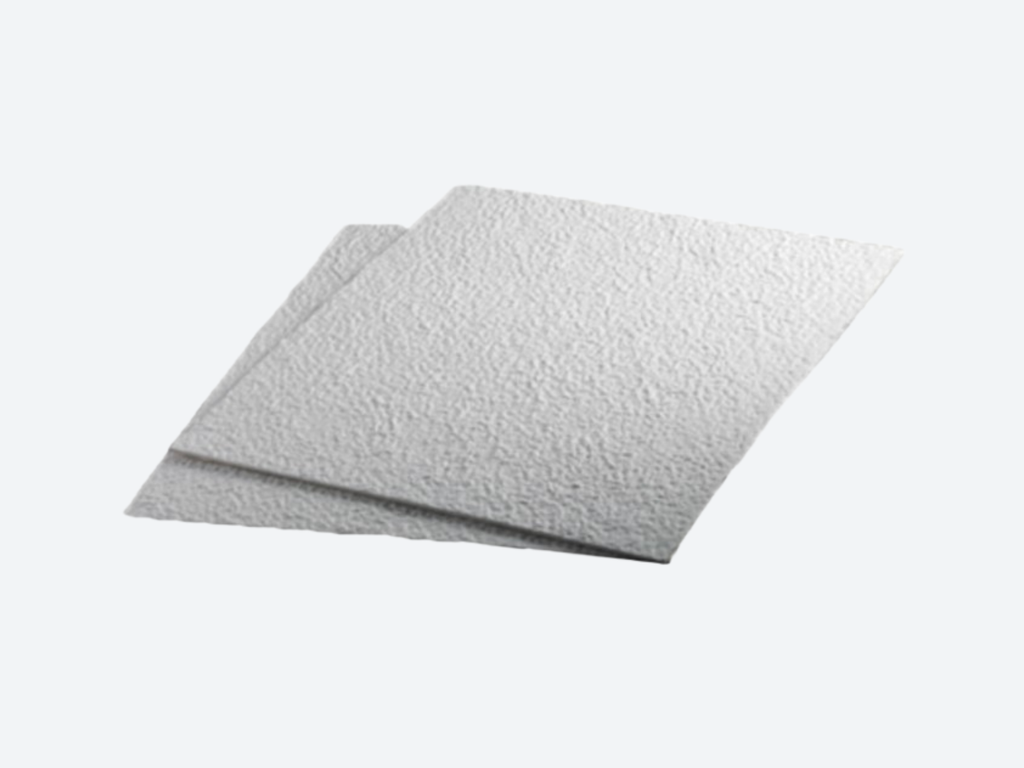

Depth filter sheets are porous filtration media for clarification, polishing, and particle reduction in liquid processes. Unlike surface filters, they retain contaminants throughout the sheet thickness to provide stable throughput and broad contaminant capture.Technical overview
These depth filter sheets are engineered as a three-dimensional matrix of fibers and filtration aids. The internal structure forms interconnected channels and cavities that increase effective filtration area and improve solids holding capacity compared with thin surface media. Filter sheets are typically installed in plate-and-frame sheet filter presses or dedicated sheet filter housings used in industrial liquid processing.Operating principle
Depth filtration captures particles within the internal structure of the sheet. Retention occurs through a combination of:- Mechanical entrapment within tortuous channels
- Adsorptive interactions on internal surfaces
- Electrostatic and electro-kinetic effects (grade-dependent)
Material options
Typical construction materials for industrial depth filter sheets include:- Cellulose fibers
- Diatomaceous earth (filtration aid)
- Perlite (filtration aid)
- Binder/resin system (for mechanical integrity)
Available micron ratings
Nominal retention depends on the selected grade. Typical ranges shown in the provided specifications include:- Microbiologically efficient / fine grades: 0.2 µm, 0.3 µm, 0.4 µm, 0.8 µm, 1 µm, 2 µm, 3 µm, 4 µm, 6 µm
- Fine to medium clarification: 5 µm, 6 µm, 8 µm, 10 µm, 11 µm, 20 µm, 30 µm, 40 µm, 50 µm
- Coarse clarification / high throughput: 60 µm, 80 µm, 110 µm, 250 µm
- Retention values are typically stated as approximate nominal retention and are grade-dependent.
- Selection should consider upstream solids loading, viscosity, desired clarity, and downstream protection requirements.
Design and construction
Depth filter sheets are supplied as rigid flat sheets designed for sealing in plate-and-frame systems. Grade families commonly cover:- Coarse clarification (high solids holding capacity)
- Fine polishing (improved clarity, lower particle carryover)
- Micro-reduction grades (targeting very fine particulate reduction)
- High-flow technical grades (optimized permeability)
- Specialty options (e.g., chemically resistant or low-extractables variants depending on process needs)
Typical applications
Common industrial uses include:- Beverage filtration (wine, beer, spirits, non-alcoholic beverages)
- Pharmacy and biotechnology process filtration
- Chemical processing and fine chemical clarification
- Cosmetics and personal care liquid clarification
- Pre-filtration before membrane or cartridge filters
Key benefits
- Depth retention for improved solids holding compared with surface-only media
- Broad grade range from coarse clarification to sub-micron nominal retention
- Multiple capture mechanisms (mechanical + adsorption), supporting stable clarification performance
- Compatible with common plate-and-frame sheet filter equipment
- Grade-dependent permeability to balance clarity and throughput
Configuration and quotation
To specify the correct depth filter sheet for your process, provide:- Target nominal retention (µm) and filtration objective (clarifying / polishing / fine reduction)
- Liquid type, operating temperature, viscosity, and chemical compatibility requirements
- Upstream solids loading and expected batch size or continuous flow rate
- Equipment type (plate-and-frame model) and required sheet dimensions
- Maximum allowable differential pressure and cleaning/backflushing approach (if applicable)
- Any compliance needs (e.g., low extractables / specialty formulations)
