Vibratory Separation Machines

Industrial sieving machines and vibratory screening systems

Industrial sieving machines are used to separate particles, remove contaminants, classify materials, and perform solid-liquid separation in continuous processing environments. These machines use controlled vibratory or gyratory motion together with precision screening surfaces to separate particles based on size, density, and flow characteristics.

Modern screening systems are widely used in powder processing, slurry filtration, particle classification, and impurity removal across many industries. Depending on the application, screening machines can process dry powders, granules, pellets, slurries, suspensions, or viscous process materials. By selecting the appropriate motion type, screen configuration, and mesh size, engineers can achieve consistent particle separation and reliable process performance.

Industrial screening equipment is typically constructed from stainless steel or other corrosion-resistant materials and may include sanitary designs, sealed housings, or clean-in-place systems. These features allow vibratory sieving machines to operate in demanding environments such as chemical plants, food processing facilities, pharmaceutical production lines, coatings manufacturing, mineral processing plants, and plastics processing operations.

Types of industrial sieving machines

Several types of industrial screening machines are used depending on the required throughput, material characteristics, and process conditions.

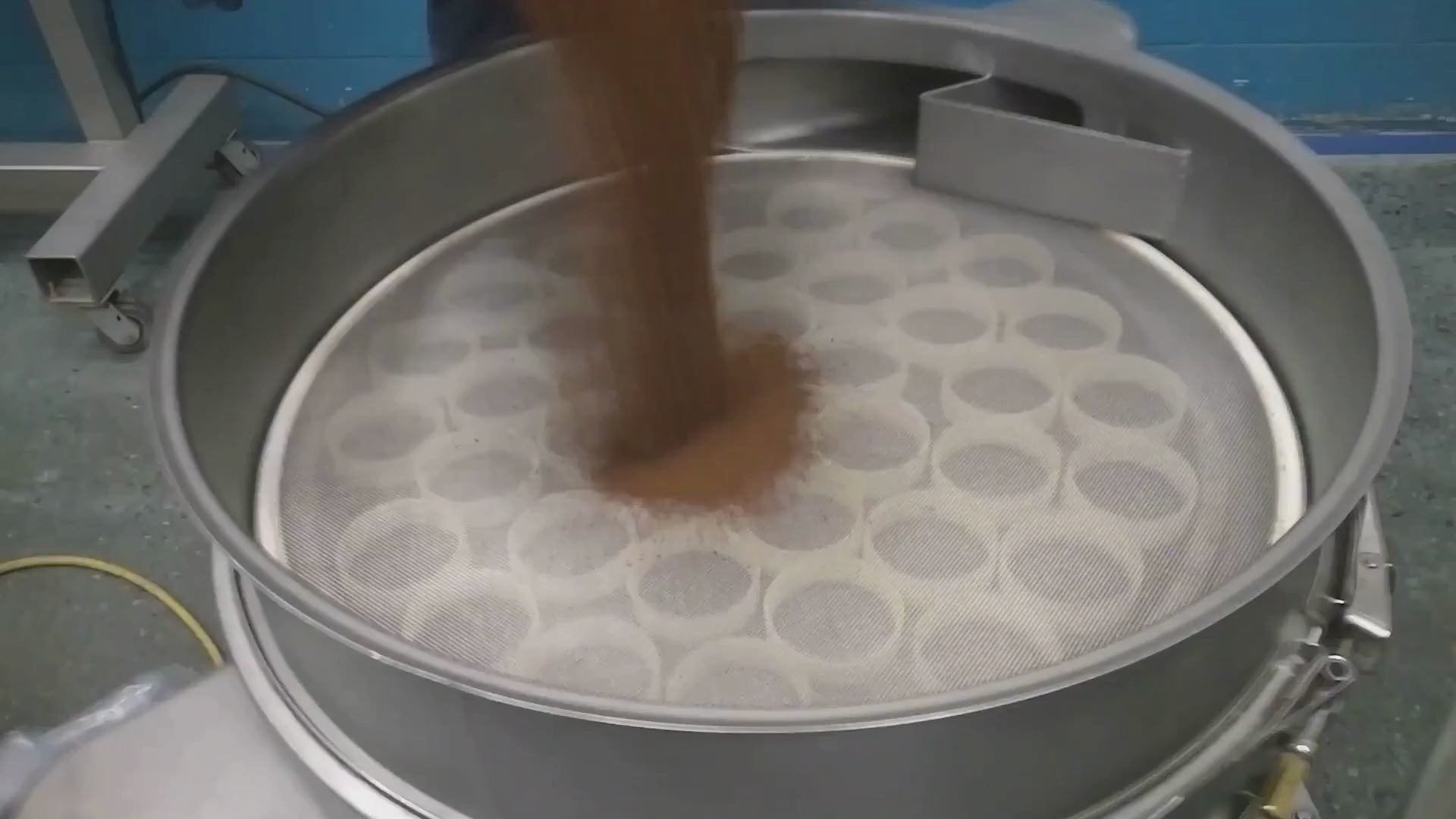

• Round vibratory separators Round separators are widely used for particle sizing, scalping, impurity removal, and solid-liquid separation. These machines use circular vibratory motion generated by eccentric weights to move material across the screen surface. Round separators are commonly used for screening powders, slurries, and granules in both wet and dry processing environments.

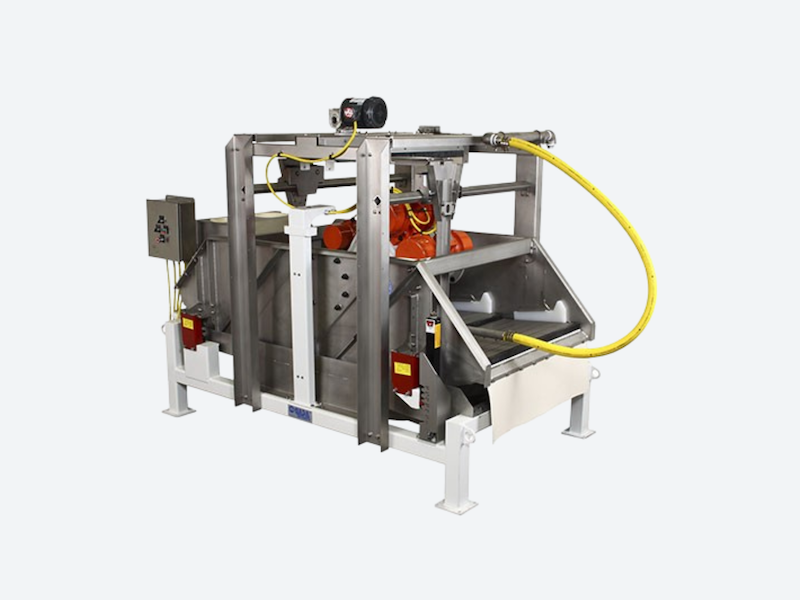

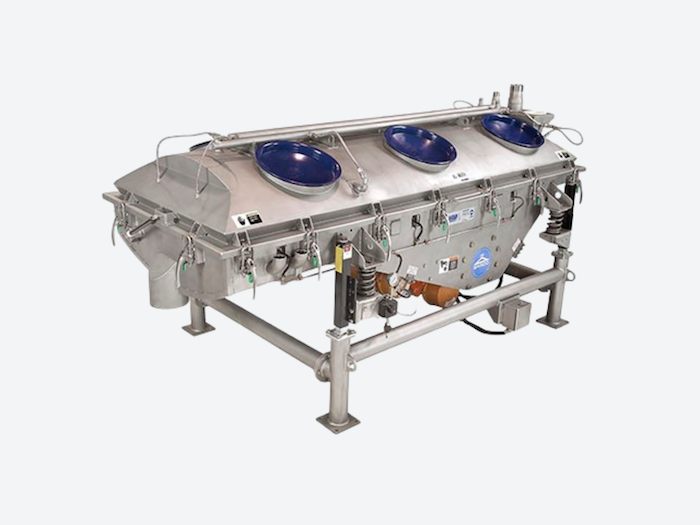

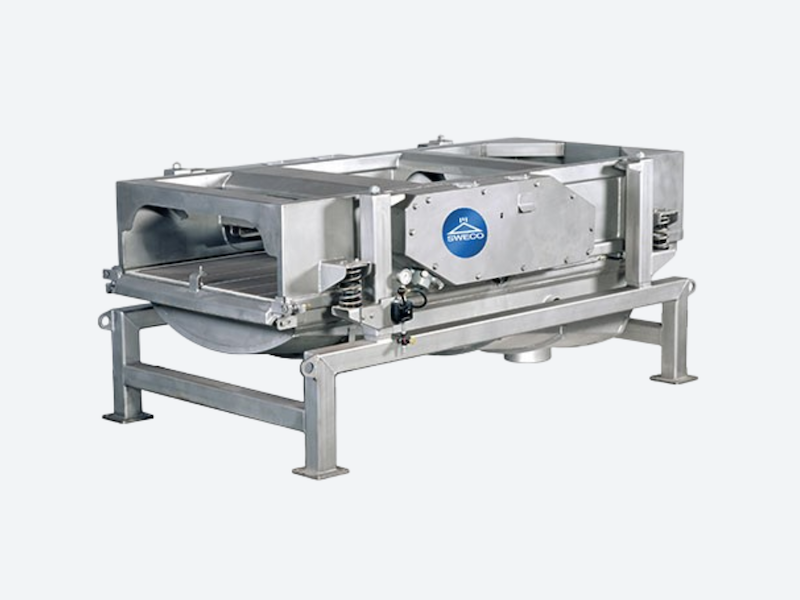

• Rectangular screening machines Rectangular separators are designed for high-capacity processing and large throughput applications. These machines can use linear, elliptical, or circular motion to convey material across long screen decks. They are commonly used for continuous wet screening, dewatering, slurry processing, and classification of large material volumes.

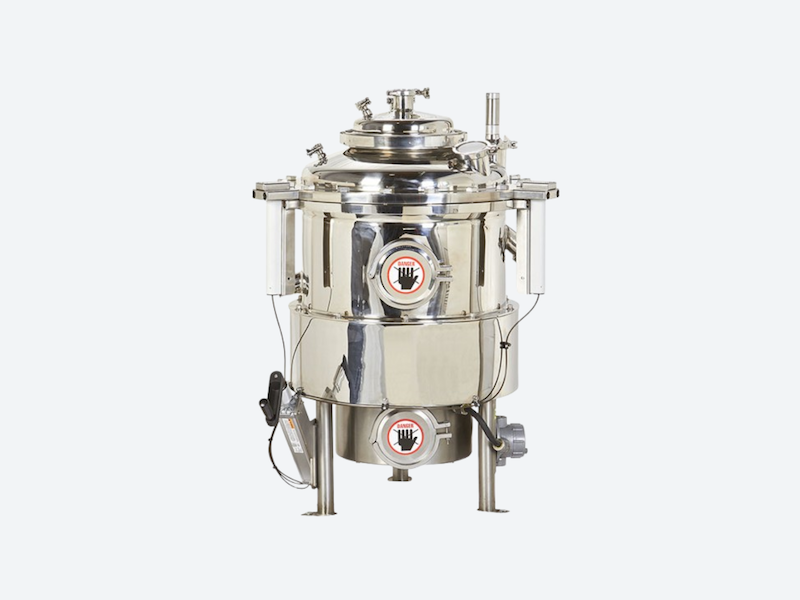

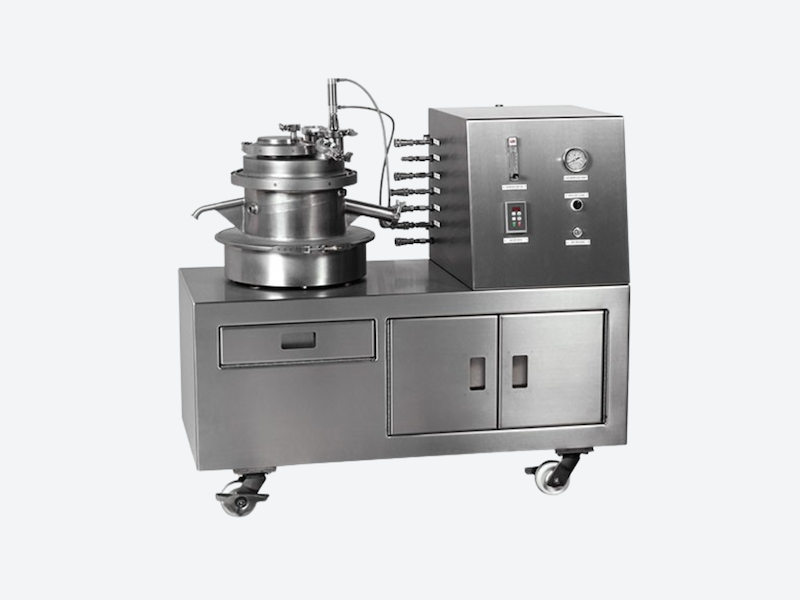

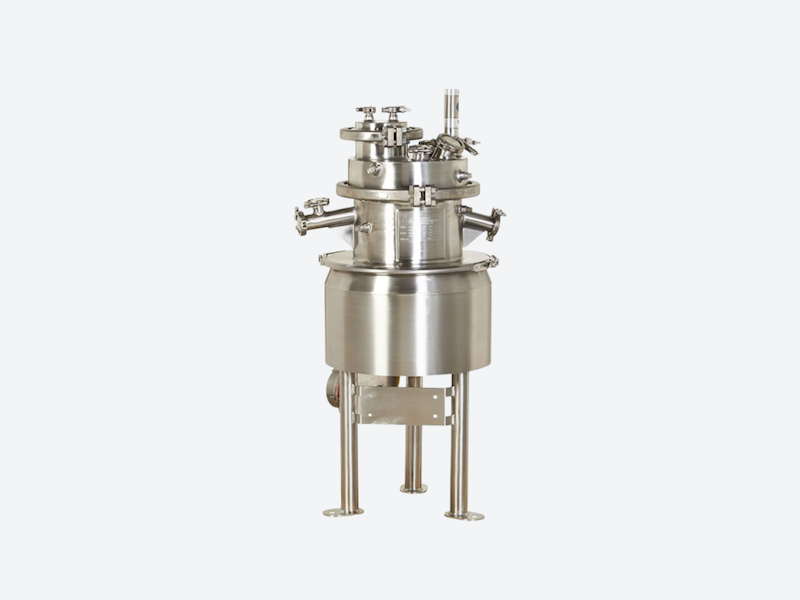

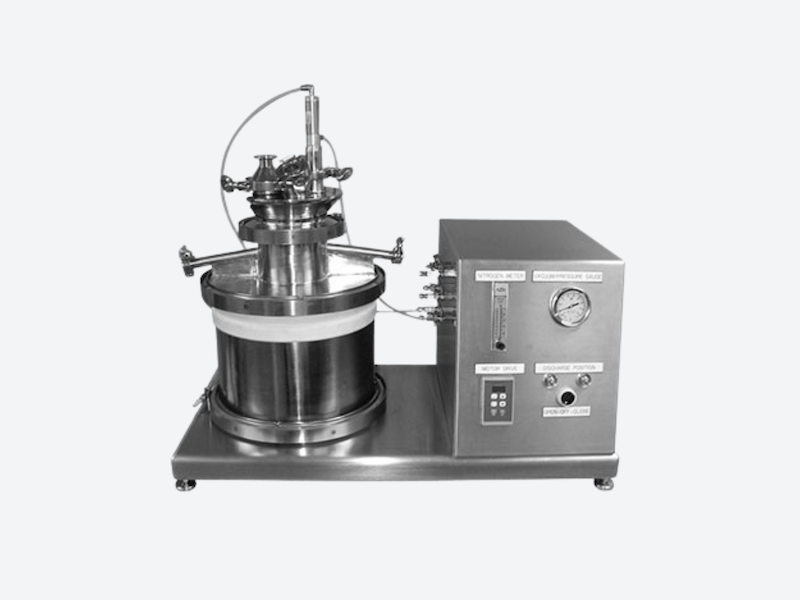

• Pharmaceutical aseptic separators Aseptic screening systems are designed for sterile pharmaceutical processing environments. These machines operate in sealed configurations and are typically integrated into contained production lines. They are used for slurry filtration, product washing, crystallization processes, and vacuum drying within controlled hygienic conditions.

Operating principle

Industrial screening machines separate materials by distributing product across a vibrating or gyrating screen surface. The motion of the machine continuously agitates the material while transporting it across the mesh.

Particles smaller than the screen opening pass through the mesh and are collected as the undersize fraction. Larger particles remain on the screen surface and are transported toward a discharge outlet as the oversize fraction. This process enables continuous separation of materials while maintaining a stable material flow through the machine.

Depending on the machine design, different motion types may be used to optimize separation performance:

• Circular motion used in round vibratory separators for efficient particle classification and impurity removal.
• Linear motion commonly used in rectangular screening machines for conveying large volumes of material across long screen decks.
• Elliptical motion combining conveying and screening efficiency for challenging slurry applications.
• Gyratory motion used for high-precision particle classification and multi-deck screening of dry bulk materials.

The choice of motion type influences material residence time, separation efficiency, and throughput capacity.

Typical applications

Industrial sieving machines are used across a wide range of industries to improve product quality, remove contamination, and classify materials according to particle size.

• Powder screening and particle classification
• Scalping and removal of oversize contaminants
• Wet screening and slurry separation
• Dewatering of slurries and suspensions
• Classification of mineral and metal powders
• Food ingredient screening and product purification
• Pharmaceutical slurry filtration and crystallization processing
• Pigment, coating, and resin processing
• Plastic pellet and polymer powder screening
• Chemical powder and granule classification
• Wastewater treatment and solids removal
• Protection of downstream pumps, mixers, and process equipment

Selection parameters

Selecting the appropriate industrial screening machine requires evaluation of several process and material characteristics. Correct configuration ensures optimal separation efficiency, reliable throughput, and long screen life.

• Required particle separation size or micron rating
• Screen mesh type and screen opening size
• Particle size distribution of the feed material
• Dry or wet process conditions
• Material flow rate and throughput capacity
• Bulk density, viscosity, or solids concentration
• Required number of screening stages or screen decks
• Motion type required for the process (circular, linear, elliptical, gyratory)
• Material of construction such as stainless steel grades
• Sanitary or hygienic design requirements
• Process conditions including temperature and pressure
• Cleaning requirements such as wash-down or clean-in-place systems
