Self-cleaning filters are used in industrial liquid filtration systems where continuous removal of suspended solids is required without disposable filter cartridges or filter bags. These filtration systems use wedge wire filter elements combined with scraper cleaning mechanisms to maintain stable operation during filtration.
Industrial self-cleaning filtration systems are commonly used in water treatment, coatings, chemicals, oils and process liquids where reliable particle removal and minimal maintenance downtime are essential.
-

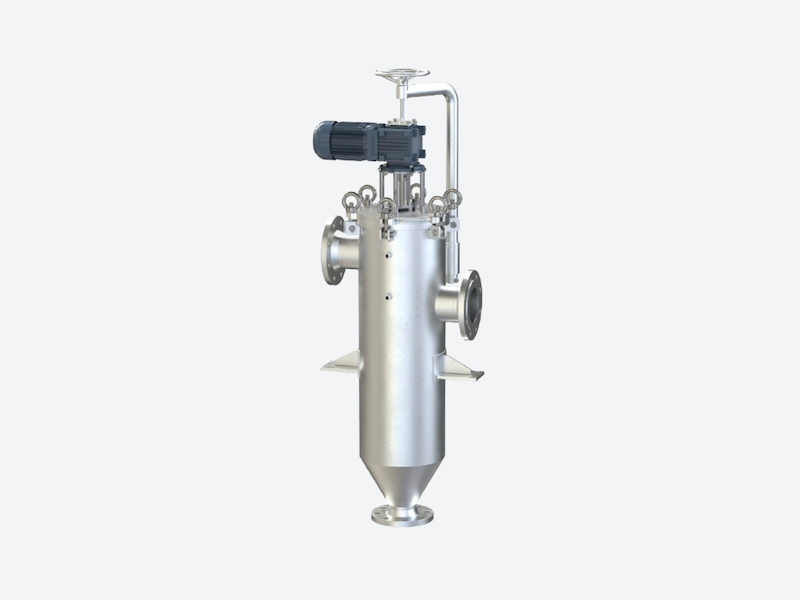

Self-Cleaning Wedge Wire Filter FSC-325 for Industrial Liquid Filtration -

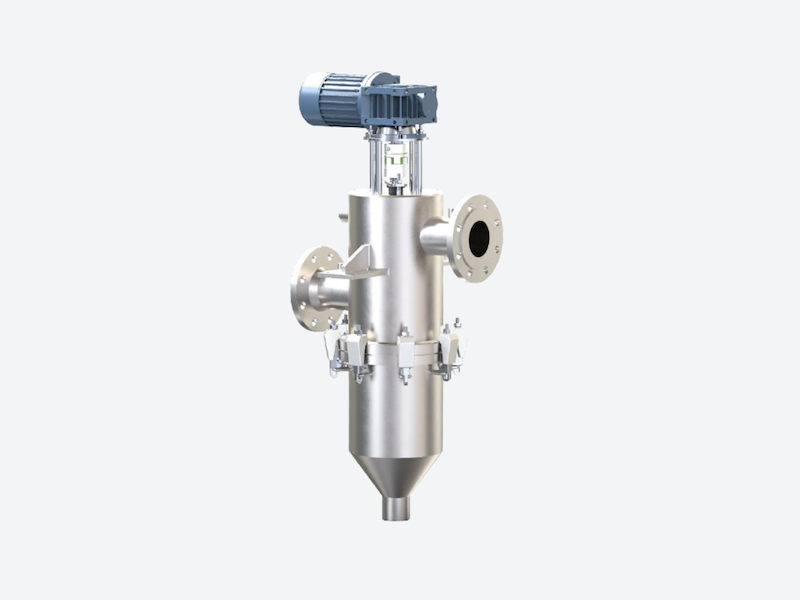

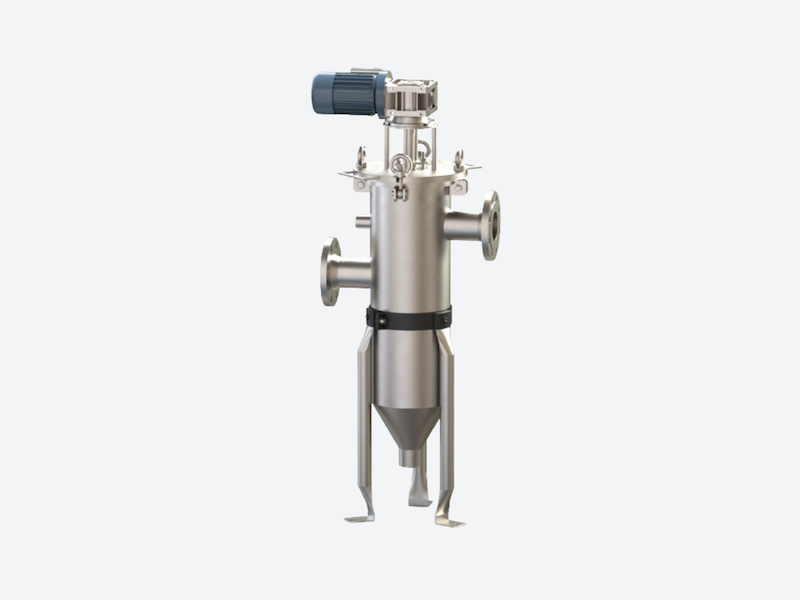

Self-Cleaning Wedge Wire Filter FSC-175 for Industrial Liquid Filtration -
Self-Cleaning Wedge Wire Filter FSC-110 for Industrial Liquid Filtration -

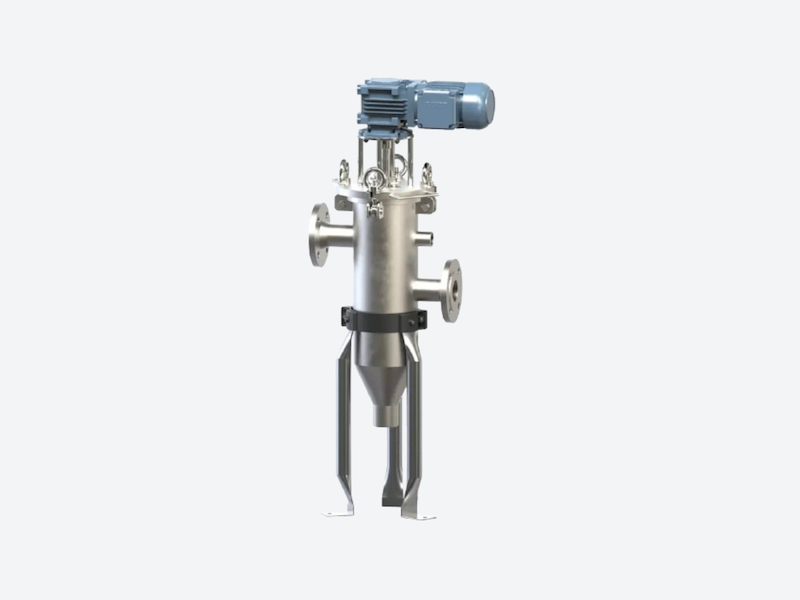

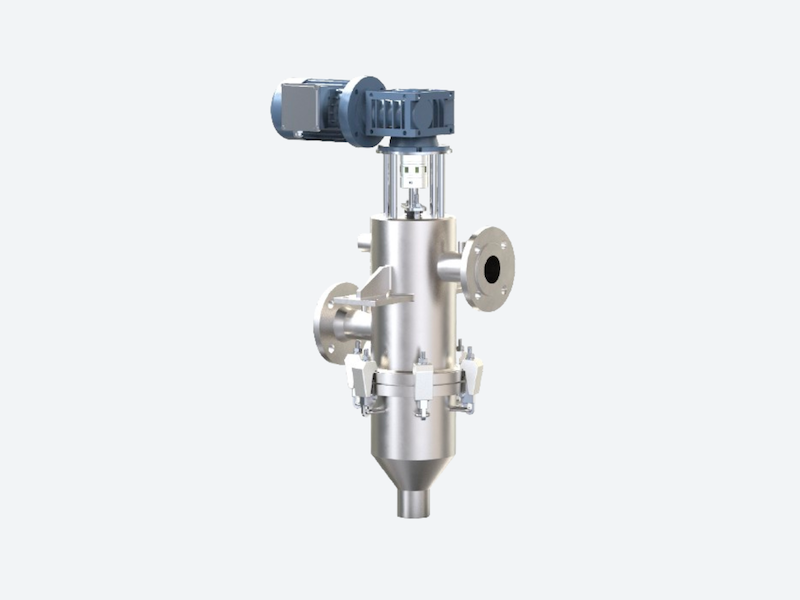

Self-Cleaning Wedge Wire Filter FSC-70 for Industrial Liquid Filtration -
Manual Wedge Wire Filter FSC-50M for Industrial Liquid Filtration -
Self-Cleaning Wedge Wire Filter FSC-50 for Industrial Liquid Filtration
Self-cleaning filtration – technical overview
Self-cleaning filters are industrial filtration systems designed for continuous removal of suspended solids from liquids without the need for disposable filter elements. These systems typically use stainless steel wedge wire filter elements combined with mechanical scraper cleaning mechanisms to maintain filtration performance during operation.
In industrial filtration systems the filter element captures suspended particles on the external surface of the screen while a rotating scraper removes accumulated solids. The particles are transported to a sediment chamber and discharged through a drain valve without interrupting the filtration process.
Operating principle

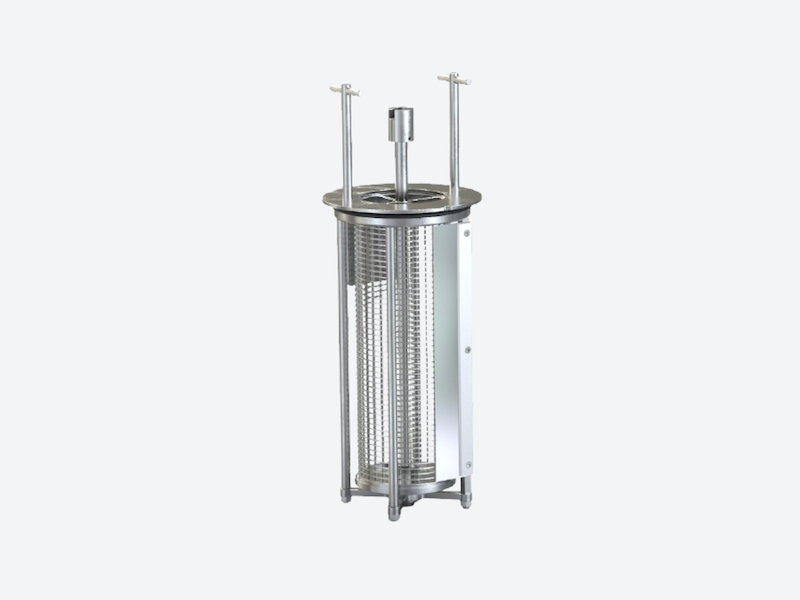

Self-cleaning wedge wire filters operate using a cylindrical filter element with precision slots that retain particles while allowing the process liquid to pass through. During operation the filter element rotates while a scraper blade removes solids from the screen surface. These particles settle in the lower chamber of the filter housing and are periodically discharged using system pressure.
Design and configuration
- Stainless steel wedge wire filter elements
- Motor-driven scraper cleaning mechanisms
- External-to-internal filtration flow design
- Sediment chamber for solids discharge
- Flanged pipeline connections for process integration
- Industrial worm gear motor drive units
- Optional automatic discharge control systems
Typical applications
- Industrial water treatment systems
- Paint and coating filtration
- Adhesive and resin processing
- Solvent and chemical filtration
- Oil and lubricant filtration
- Food and beverage liquid filtration
- Cooling lubricant filtration systems
- Protection of pumps, valves and downstream equipment
Selection parameters
- Required micron rating
- Liquid viscosity and composition
- Particle size distribution
- Required flow capacity
- Operating pressure and temperature
- Connection size and installation orientation
- Cleaning method and solids discharge configuration
