Testadores de integridade de filtros

Equipamento para teste de integridade de filtros
Para validação da filtração por membrana

Métodos de ensaio:
Ponto de bolha | Difusão | Manutenção da pressão | WIT

Os equipamentos de teste de integridade de filtros são utilizados para verificar o desempenho dos filtros de membrana em processos de filtração críticos. Estes instrumentos medem parâmetros como a pressão do ponto de bolha, o fluxo de difusão ou a intrusão de água para confirmar se a estrutura do filtro permanece intacta.

Os equipamentos típicos incluem testadores de integridade portáteis, testadores de ponto de bolha, caixas de filtro aquecidas e acessórios de teste complementares. Estes sistemas são utilizados na produção farmacêutica, em processos biotecnológicos e noutros ambientes de filtração industrial onde é necessária a validação de filtros.
Saltar para lista de resultados

Filter integrity testing – technical overview

Filter integrity testing is used to verify that a membrane filter maintains its expected filtration performance. Integrity tests measure the physical behaviour of gas or liquid passing through a filter element in order to confirm that the membrane structure is intact and free from defects.

These tests are commonly performed before and after filtration processes in industries where filtration performance must be verified, such as pharmaceutical manufacturing, biotechnology processing and high-purity industrial filtration systems.

Integrity testing methods

Several standardized methods are used to evaluate membrane filter integrity. Each method measures a different parameter related to the membrane structure.

  • Bubble point testing – Determines the pressure at which gas passes through the largest pores of a wetted membrane.
  • Diffusion testing (forward flow) – Measures gas diffusion through a wetted membrane filter.
  • Pressure hold testing – Evaluates pressure stability across a filter system.
  • Water intrusion testing (WIT) – Used primarily for hydrophobic membranes such as PTFE filters.

Typical testing equipment

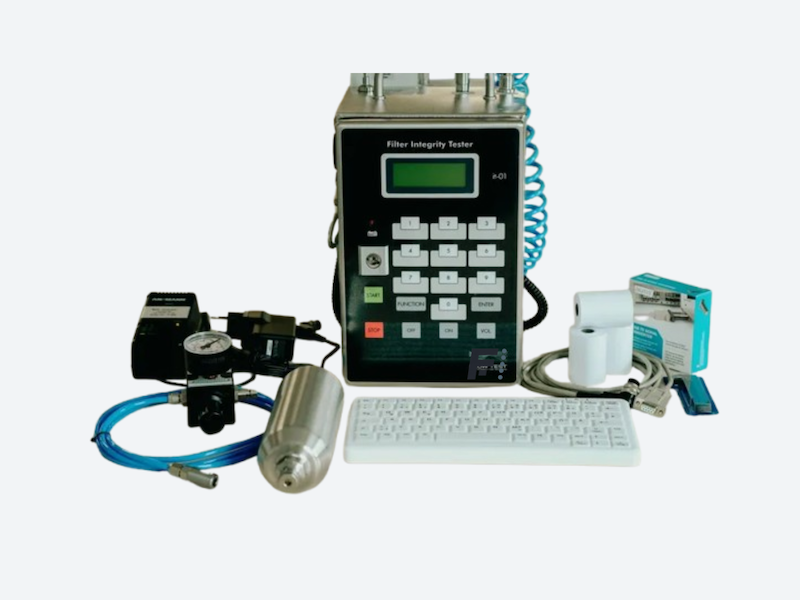

  • Portable filter integrity testers

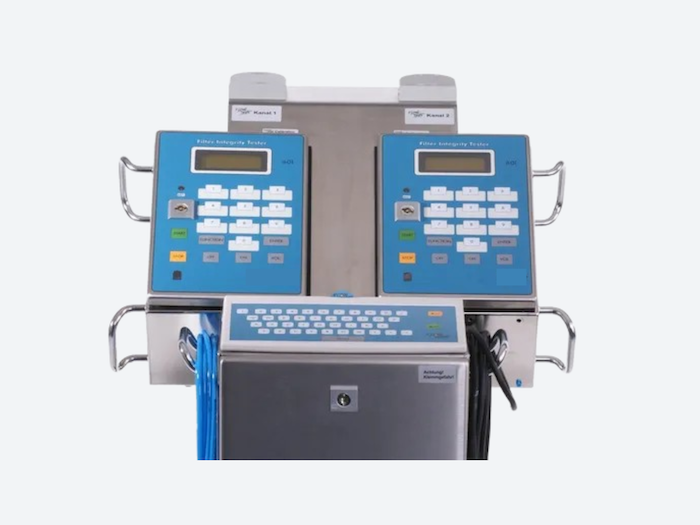

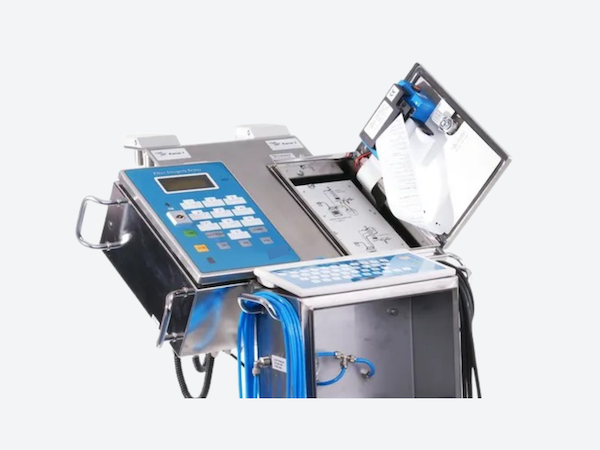

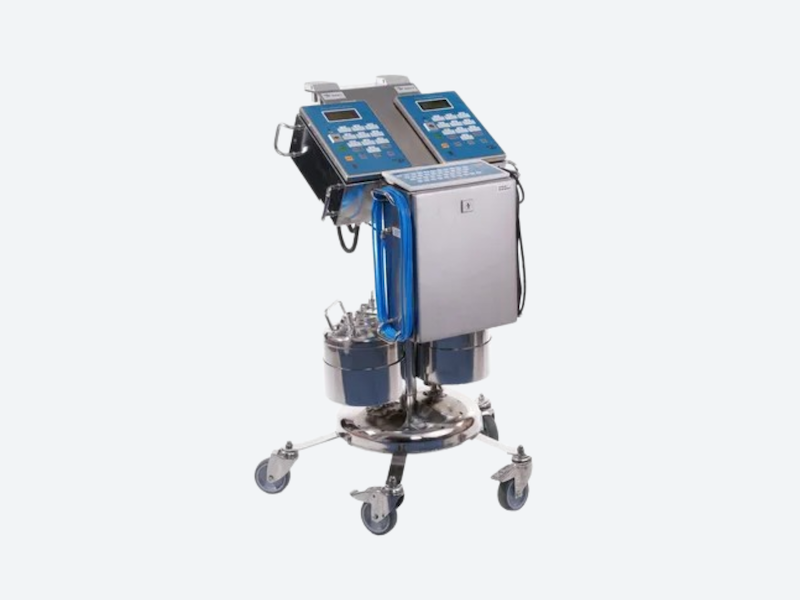

  • Mobile or multi-channel testing systems
  • ATEX integrity testers for hazardous environments
  • Bubble point testing instruments
  • Heated filter housings for WIT testing
  • Filter drying systems and pipe heaters
  • Adapters and tubing sets for test connections

Typical applications

  • Pharmaceutical sterile filtration validation
  • Biotechnology manufacturing processes
  • Membrane filter manufacturing quality control
  • Laboratory filtration testing
  • High-purity gas filtration systems
  • Chemical and industrial filtration processes

Selection parameters

  • Integrity testing method required
  • Filter type and membrane material
  • Pressure range required for testing
  • Single or multi-channel testing configuration
  • Installation environment (laboratory, production, ATEX zone)
  • Required documentation or data recording features

Common integrity testing terms

  • Bubble point – pressure at which gas passes through the largest membrane pores.
  • Diffusion test – measurement of gas flow through a wetted membrane.
  • Water intrusion test – integrity test used for hydrophobic filters.
  • Membrane filter – filtration media used for sterile filtration.

Precisa de ajuda para selecionar o testador de integridade de filtros adequado?

 Solicite um orçamento

Knowledge Center

Learn more about filter integrity testing

Explore three essential integrity test methods used for membrane filter validation, process control, and product quality assurance.
