Product description
Reliable filter bag for general industrial liquid filtration

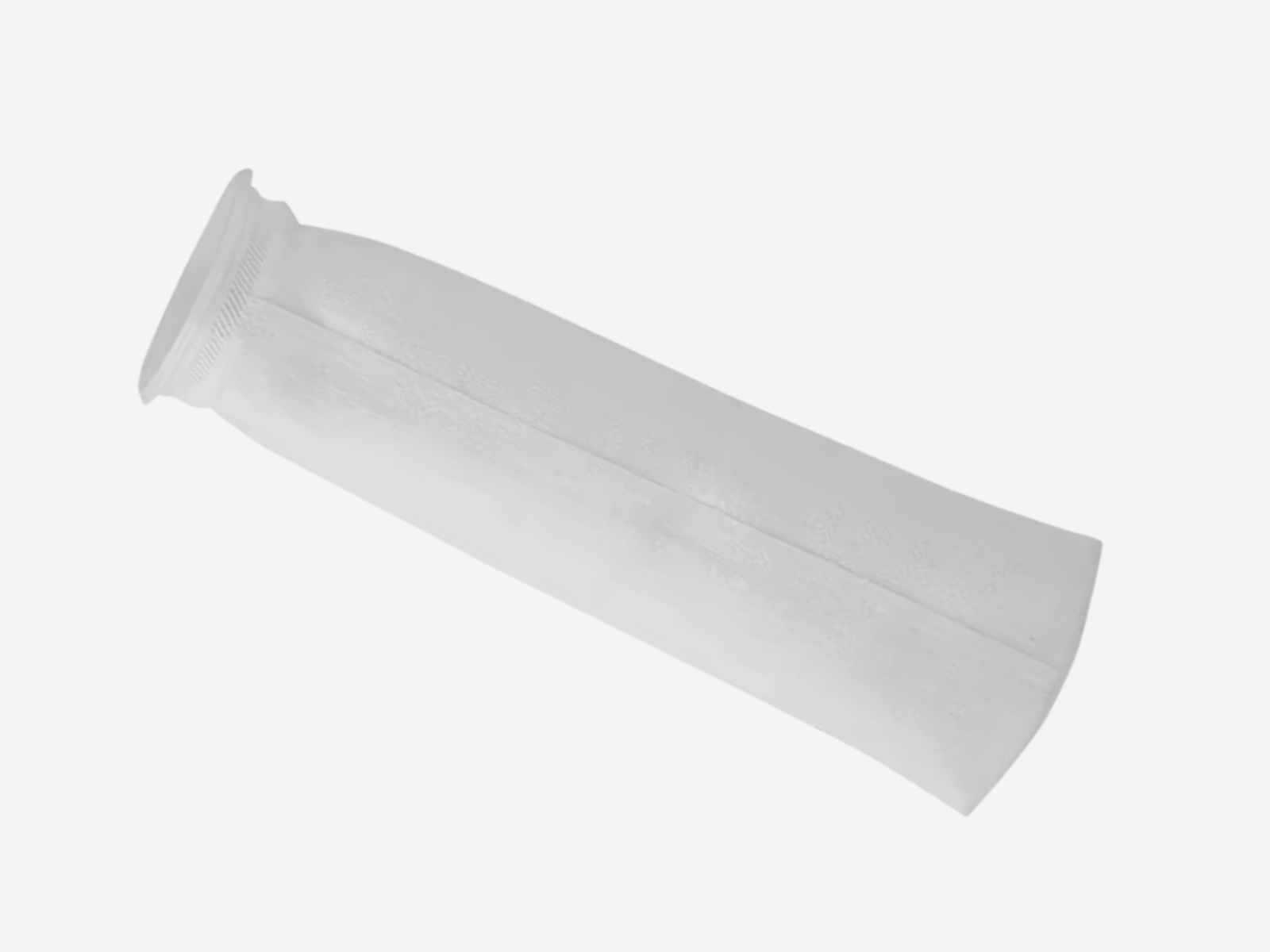

The X100 Filter Bag is designed for general industrial liquid filtration applications where reliable performance, consistent quality and cost effective operation are required. This filter bag is commonly used as a primary filtration stage or as pre filtration before finer filtration steps.
The X100 Filter Bag is compatible with standard industrial bag filter housings and is supplied in a fixed, widely used industrial size.
Filtration principle
The X100 Filter Bag operates using either depth filtration or surface filtration, depending on the selected filter media.
Polypropylene felt
The felt version provides depth filtration, capturing particles throughout the thickness of the filter material. This offers good dirt holding capacity and stable pressure behaviour.
Nylon monofilament
The monofilament version provides surface filtration with a defined mesh structure. This allows precise particle retention and easy cleaning in applications where reusable filtration is preferred.
Design and construction
The X100 Filter Bag is available in two material constructions to suit different process requirements:
-
Polypropylene felt for depth filtration and higher dirt holding capacity
-
Nylon monofilament for surface filtration and defined particle retention
Both versions are manufactured for industrial use and designed to ensure a secure fit inside the filter housing.
Standard dimensions
The X100 Filter Bag is supplied in a fixed standard size:
-
Diameter x length: 6 inch x 20 inch
-
Approximate metric dimensions: ±15 cm x 51 cm
This standard size ensures compatibility with commonly used industrial bag filter housings.
Performance characteristics
Depending on the selected material, the X100 Filter Bag offers:
-
reliable particle retention
-
stable flow behaviour
-
predictable pressure drop
-
consistent filtration performance
The choice between felt and monofilament allows the filter bag to be matched precisely to the filtration duty.
Material compatibility
-
Polypropylene felt provides good compatibility with a wide range of industrial liquids and water based solutions.
-
Nylon monofilament is suitable for applications where defined particle separation and mechanical strength are required.
Material compatibility should always be confirmed for specific process conditions.
Typical applications
The X100 Filter Bag is commonly used in:
-
industrial water treatment
-
chemical processing
-
surface treatment processes
-
cooling water filtration
-
general process filtration
-
pre filtration before fine filtration stages
Key benefits
-
Available in polypropylene felt and nylon monofilament
-
Fixed standard industrial size for easy selection
-
Reliable filtration performance
-
Compatible with standard bag filter housings
-
Cost effective filtration solution
-
Easy installation and replacement
Configuration and quotation
X100 Filter Bags are supplied based on material selection and filtration requirements. Selection parameters include:
-
filter media type
-
micron or mesh rating
-
process liquid characteristics
-
operating conditions
Filtra International can support correct filter selection based on application needs.
