Product description

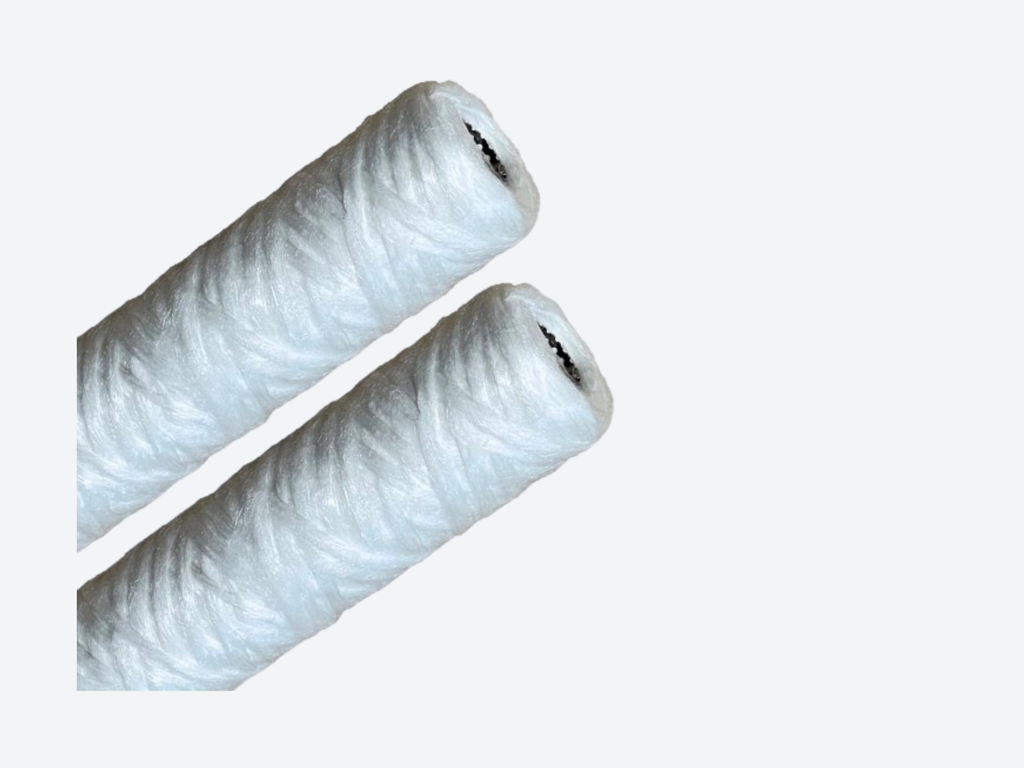

Glass fibre wound depth filter cartridge for high capacity industrial liquid filtration
The glass fibre wound depth filter cartridge is designed for demanding liquid filtration applications requiring high dirt holding capacity, stable pressure behaviour and wide chemical compatibility. Manufactured from fine glass fibre yarn wound around a rigid support core, this cartridge provides true depth filtration for effective removal of suspended solids and particulate contaminants.
Glass fibre wound cartridges are particularly suitable for industrial processes involving aggressive fluids or elevated operating temperatures where polymer-based wound cartridges may not be suitable.
Filtration principle
The cartridge operates using a gradient density depth filtration principle. Glass fibre yarn is wound around a central core with decreasing density from the outer to the inner layers. Larger particles are retained on the outer layers, while finer particulates are captured progressively deeper within the media structure.
This filtration principle provides:
-
progressive particle retention from coarse to fine
-
high dirt holding capacity
-
stable differential pressure over service life
-
effective filtration for high solids loading
Contaminants are distributed throughout the full depth of the cartridge, extending operational life.
Media technology and uniqueness
The filter media is manufactured from high quality glass fibre yarn selected for its mechanical strength, temperature resistance and chemical compatibility. The wound construction forms a rigid and stable filtration matrix without the use of binders or adhesives.
Key media characteristics include:
-
glass fibre wound depth structure
-
graded pore density for efficient depth filtration
-
excellent resistance to chemical attack
-
higher temperature tolerance than polymer wound media
This makes the cartridge suitable for demanding industrial environments.
Design and construction
The cartridge consists of multiple layers of glass fibre yarn wound precisely around a central support core. The construction provides mechanical stability, high flow capability and resistance to deformation under differential pressure.
Typical design features include:
-
wound glass fibre depth media
-
gradient pore structure
-
robust mechanical construction
-
stable performance at high solids loading
The cartridge is designed for installation in standard industrial filter housings.
Materials of construction
Standard construction materials include:
-
Filter media: Glass fibre yarn
-
Inner core: Polypropylene or stainless steel
-
End faces: Glass fibre wound structure
Sealing materials and core selection are defined based on application requirements.
Available micron ratings
Typical micron ratings include:
-
1 µm
-
5 µm
-
10 µm
-
20 µm
-
50 µm
This range allows accurate selection for both coarse and fine depth filtration applications.
Operating conditions
Typical operating conditions include:
-
Suitable for elevated operating temperatures
-
High differential pressure resistance
-
Recommended change-out at defined pressure drop
Exact pressure and temperature limits depend on cartridge configuration and housing design.
Key benefits
-
High dirt holding capacity
-
True depth filtration performance
-
Stable pressure drop characteristics
-
Wide chemical compatibility
-
Suitable for high temperature applications
-
Robust construction for industrial use
Typical applications
Glass fibre wound depth filter cartridges are commonly used in:
-
industrial process water filtration
-
chemical and petrochemical processing
-
power generation water systems
-
solvent and oil filtration
-
pre-filtration for membranes and fine filters
-
high solids liquid filtration
Configuration and quotation
Glass fibre wound depth filter cartridges are supplied on a configuration basis. Selection parameters include:
-
micron rating
-
cartridge length
-
core material
-
sealing material
This ensures the cartridge is correctly matched to the process and operating conditions.
