Product description

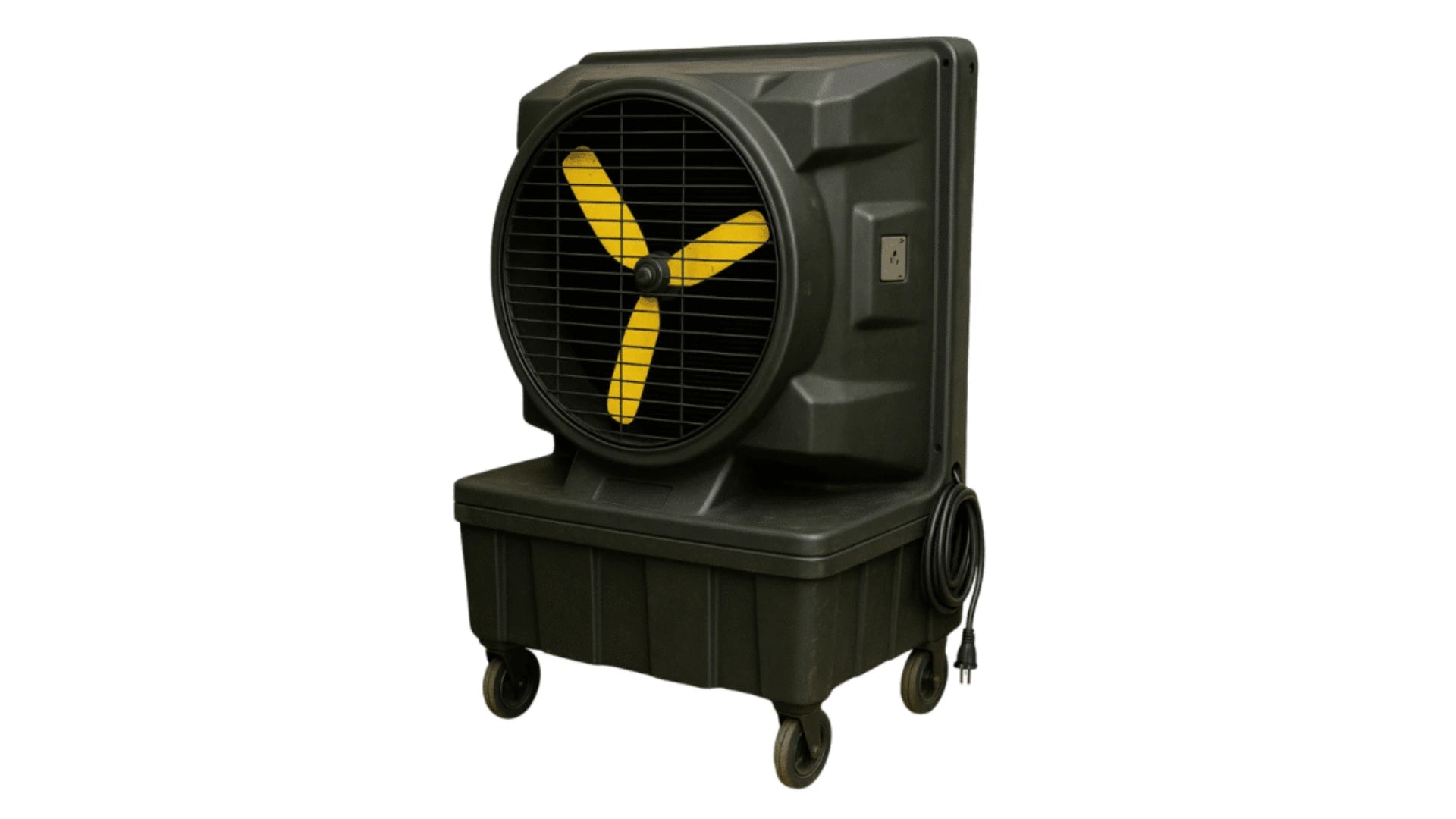

The VL220 EC-W is a mobile evaporative air cooler designed for commercial and professional spaces up to approximately 250 m². With a maximum airflow of 22,000 m³/h, it provides high-volume air movement for larger occupied spaces, workshops, warehouses and other ventilated work areas.
The 2027 EC-W configuration combines evaporative cooling with an EC motor, continuously adjustable airflow, integrated UV water treatment, automatic swing and Wi-Fi connectivity for remote operation and monitoring.
Technical overview
- Maximum airflow: 22,000 m³/h
- Recommended area: up to 250 m²
- Airflow adjustment: continuously adjustable from 0 to 100%
- Motor: EC motor
- Connectivity: Wi-Fi
- Water treatment: integrated UV treatment
- Air distribution: automatic swing function
- Protective cover: included
- Application class: commercial and professional spaces
- Warranty: 1 year
Operating principle
The VL220 EC-W uses evaporative, also known as adiabatic, cooling. Warm ambient air is drawn through a water-wetted evaporative medium. As part of the water evaporates, heat is absorbed from the incoming air and its temperature is reduced before the cooled air is discharged into the workspace.
The process does not require a conventional refrigerant circuit or compressor-based refrigeration system. Because evaporative cooling increases the moisture content of the treated air, sufficient air renewal is important.
Doors, windows, ventilation openings or mechanical extraction should allow humidified air to leave the building while fresh air enters. Actual performance depends on ambient temperature, relative humidity, ventilation, internal heat load and cooler positioning.
Material options
No selectable material variants are specified for the VL220 EC-W. The unit is supplied as a complete mobile evaporative cooling system.
Available micron ratings
Not applicable to this model. The VL220 EC-W does not include the dedicated Pureflow G4 air pre-filtration system used on the corresponding industrial cooler configuration.
Where cooling and coarse incoming-air pre-filtration are both required, the industrial KM22 EC-W configuration should be considered.
Design and construction
The VL220 EC-W is designed as a mobile high-airflow cooling unit for larger professional spaces. Its EC motor allows airflow to be adjusted continuously according to the required cooling demand rather than operating only at fixed fan speeds.
- Mobile construction for flexible positioning
- High-volume axial airflow
- EC motor technology
- Continuously adjustable output from 0 to 100%
- Integrated UV water treatment
- Automatic swing for wider air distribution
- Wi-Fi connectivity
- Remote operation through connected control
- Real-time operating information
- Protective cover included
Typical applications
- Commercial spaces
- Large workshops
- Warehouses
- Logistics and order-picking areas
- Garages and vehicle service areas
- Showrooms
- Training and activity spaces
- Covered event areas
- Light-duty production areas
- Local cooling of occupied work zones
Key benefits
- Suitable for spaces up to approximately 250 m²
- Maximum airflow of 22,000 m³/h
- Continuously adjustable airflow from 0 to 100%
- EC motor for controlled fan operation
- Wi-Fi connectivity for remote control
- Integrated UV water treatment
- Automatic swing for wider airflow distribution
- Mobile configuration for flexible positioning
- No fixed conventional air-conditioning installation required
- Evaporative cooling without refrigerant gas
Configuration and quotation
The stated coverage of up to 250 m² is a general sizing guideline. Floor area alone is not sufficient to determine the correct cooling capacity for every installation.
For a technical recommendation or quotation, provide the following information where possible:
- Floor area in m²
- Approximate ceiling height
- Type of commercial or professional workspace
- Typical indoor temperature during warm periods
- Available ventilation or mechanical extraction
- Machinery, equipment or other internal heat sources
- Number and location of occupied work areas
- Required cooling area: local zone or complete workspace
These parameters help determine whether the VL220 EC-W provides sufficient airflow or whether a smaller or larger evaporative cooler is more appropriate.
