Product description

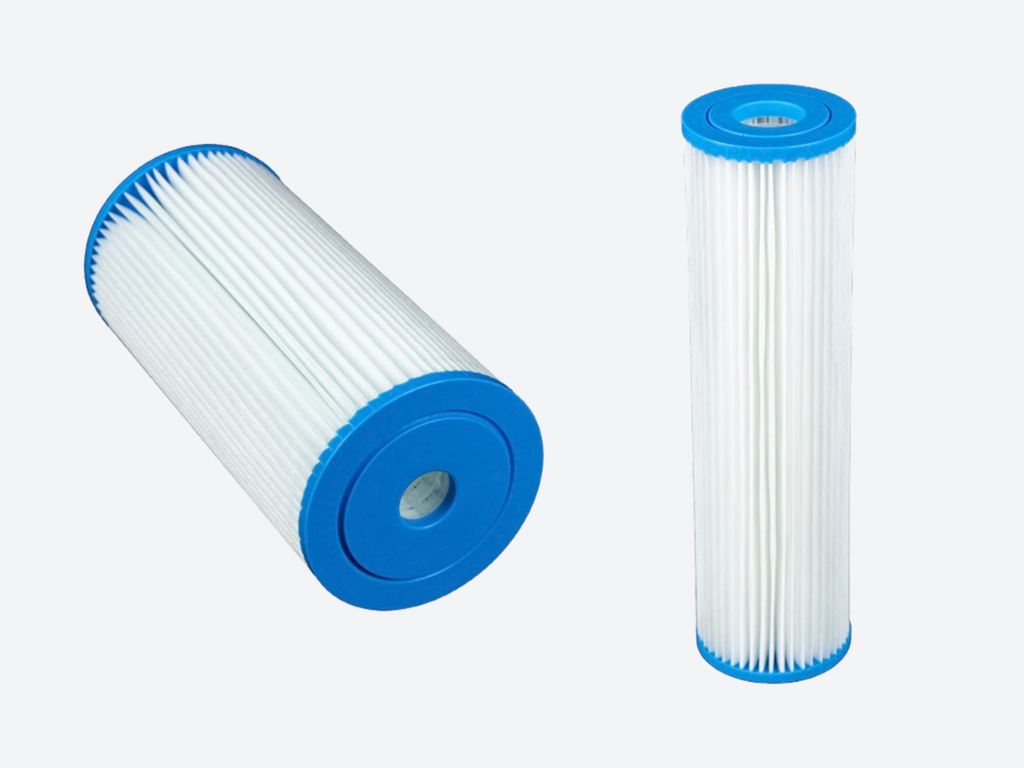

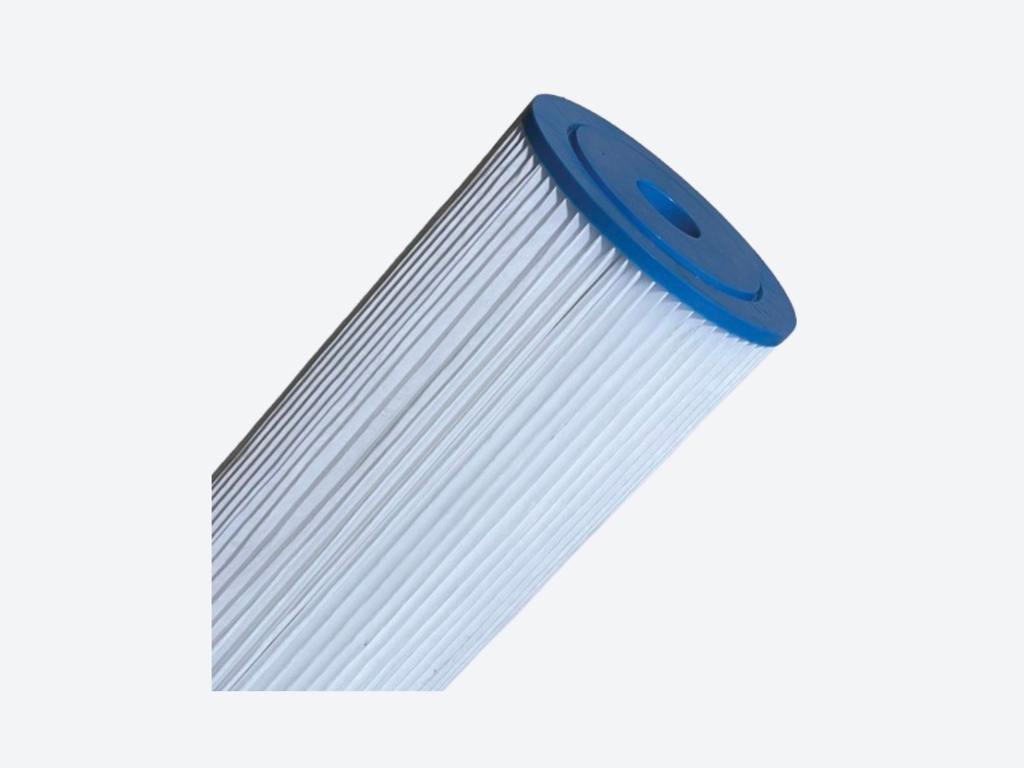

Polyester pleated filter cartridge for economical, high efficiency liquid filtration
The polyester pleat filter cartridge is designed to deliver efficient particulate filtration with high flow capacity and low pressure drop. Using a mono layer pleated polyester filter media, this cartridge provides a large effective filtration surface area while maintaining stable hydraulic performance.
The cartridge is suited for a wide range of applications, from natural water sources such as borehole and river water to more demanding chemical process environments.
Filtration principle
The cartridge utilises mono layer pleated polyester filter media to retain particulate contaminants on the surface of the pleats. Process liquid flows evenly through the pleat pack, allowing efficient particle capture while maintaining low differential pressure.
This filtration principle provides:
-
high flow potential with low pressure drop
-
efficient surface filtration
-
uniform flow distribution through the pleats
-
predictable filtration performance
The pleated design maximises usable filtration area within a compact cartridge format.
Media technology and uniqueness
The pleated filter media is manufactured from resilient polyester fibres selected for durability and chemical resistance. The mono layer construction provides an economical solution while maintaining effective particle retention across a wide micron range.
Key media characteristics include:
-
mono layer pleated polyester media
-
high surface area pleat construction
-
good chemical compatibility
-
stable performance over service life
For applications requiring tighter classification or higher efficiency, multi-layer pleated alternatives are available.
Design and construction
The cartridge features moulded vinyl plastisol end caps that eliminate the need for separate gaskets, ensuring consistent sealing and maintaining pleat pack integrity. A robust inner polypropylene core supports the pleated media and prevents collapse under flow conditions.
Typical design features include:
-
pleated polyester filter media
-
integrated vinyl plastisol end caps
-
gasket-free design
-
rigid polypropylene inner core
The construction provides a lightweight yet durable cartridge suitable for repeated replacement cycles.
Materials of construction
Standard construction materials include:
-
Filter media: Polyester
-
Inner core: Polypropylene
-
End caps: Vinyl plastisol
Materials are selected for durability, versatility and compatibility with a wide range of process liquids.
Available micron ratings
Typical micron ratings include:
-
0.5 µm
-
1 µm
-
5 µm
-
10 µm
-
20 µm
-
30 µm
-
50 µm
This range allows accurate selection for both pre-filtration and final filtration duties.
Operating conditions
Typical operating conditions include:
-
Maximum operating temperature: 38 °C
-
Maximum differential pressure: 4 bar at 21 °C
-
Suitable for continuous liquid filtration
Exact limits depend on cartridge length, micron rating and system conditions.
Key benefits
-
Economical pleated filter cartridge
-
High surface area for improved service life
-
High flow capacity with low pressure drop
-
Gasket-free end cap design
-
Broad chemical compatibility
-
Suitable for general and industrial water applications
Typical applications
Polyester pleat filter cartridges are commonly used in:
-
borehole and river water filtration
-
general process water treatment
-
pre-filtration for carbon or membrane systems
-
cooling water filtration
-
light chemical processing
Configuration and quotation
Polyester pleat filter cartridges are supplied in multiple configurations. Selection parameters include:
-
micron rating
-
cartridge length
-
diameter (standard or large diameter)
This ensures the cartridge is correctly matched to the filtration duty.
