Product description

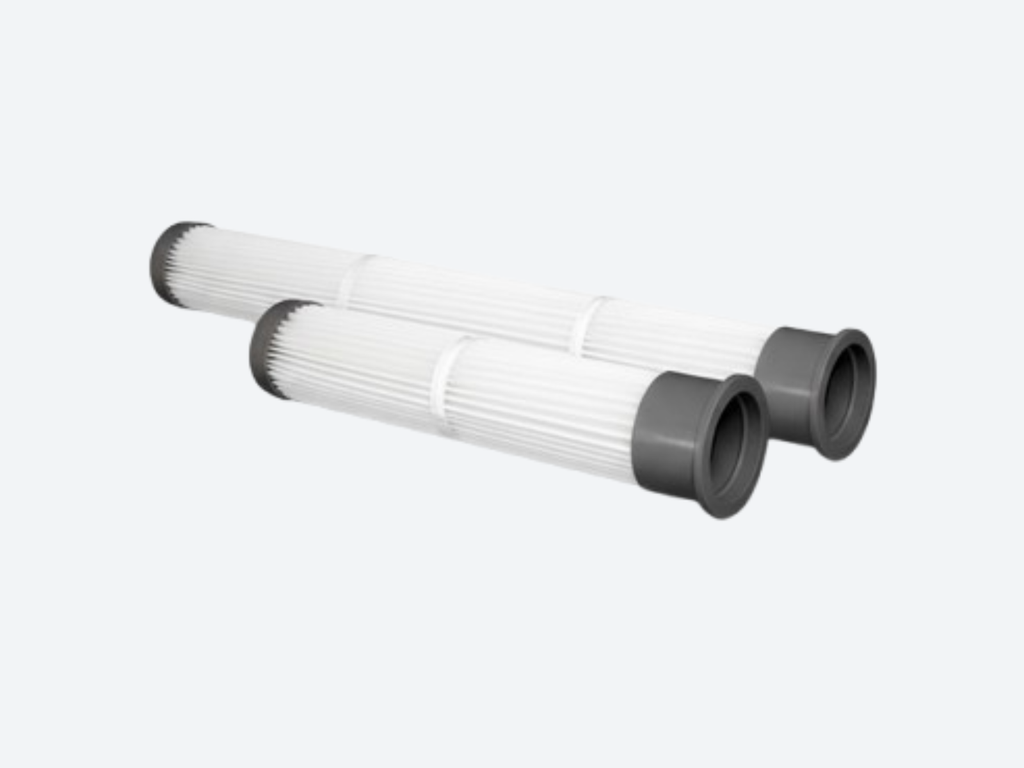

Pleated bag filter cartridges (top loader type) are designed for industrial dust collection systems requiring installation from the clean air side. These filters provide increased filtration area and improved dust handling efficiency compared to traditional filter bags.
Technical overview

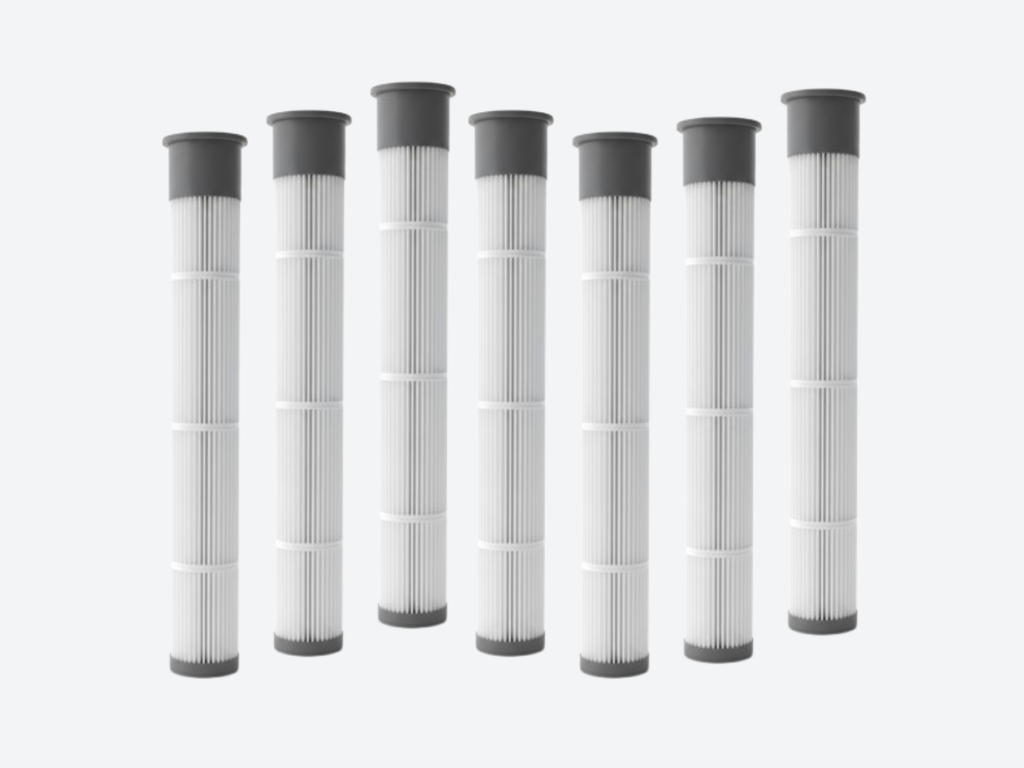

Top loader pleated bag filters are cylindrical elements with pleated filter media supported by internal and external metal mesh structures. They are installed from the clean air plenum, allowing simplified maintenance and replacement. Typical lengths range from 600 mm to 2000 mm with multiple diameter configurations.
Operating principle
Dust-laden air flows through the pleated filter media, where particles are retained on the surface and within the media structure. Clean air passes through the filter and exits the system. The pleated configuration increases filtration area, reducing air velocity and improving dust cake formation. Pulse-jet cleaning systems periodically remove accumulated dust, maintaining stable pressure drop.
Material options
- Cellulose media
- Polyester media
- Cellulose/polyester blends
- Nano-coated media
- PTFE membrane laminated media
- Flame-retardant media
- Water and oil repellent treated media
- Aluminum-coated polyester media
Filtration classes range from M5 to high-efficiency classes such as F9, E11, and H13 depending on media selection. :contentReference[oaicite:1]{index=1}
Available efficiencies
- ePM10
- ePM2.5
- Fine filtration (F7–F9)
- High-efficiency filtration (E10–H13)
Design and construction
- Pleated filter media with approx. 15 mm pleat height
- Inner and outer perforated galvanized steel support
- Polyurethane or metal end caps
- Optimized for top-side installation
Typical configurations:
- Outer diameter: 125 mm, 145 mm
- Inner diameter: 100 mm, 124 mm
- Length: 600–2000 mm
Typical applications
- Central dust collection systems
- Woodworking and panel processing
- Food and powder processing
- Pharmaceutical production
- Metal finishing and surface treatment
Key benefits
- High filtration area in compact design
- Reduced pressure drop
- Improved cleaning efficiency
- Accessible installation from clean air side
- Adaptable media configurations
Configuration and quotation
- Outer diameter (OD)
- Inner diameter (ID)
- Length
- Media type and efficiency
- Operating temperature
- Dust characteristics
- End cap configuration
- Cleaning system type
