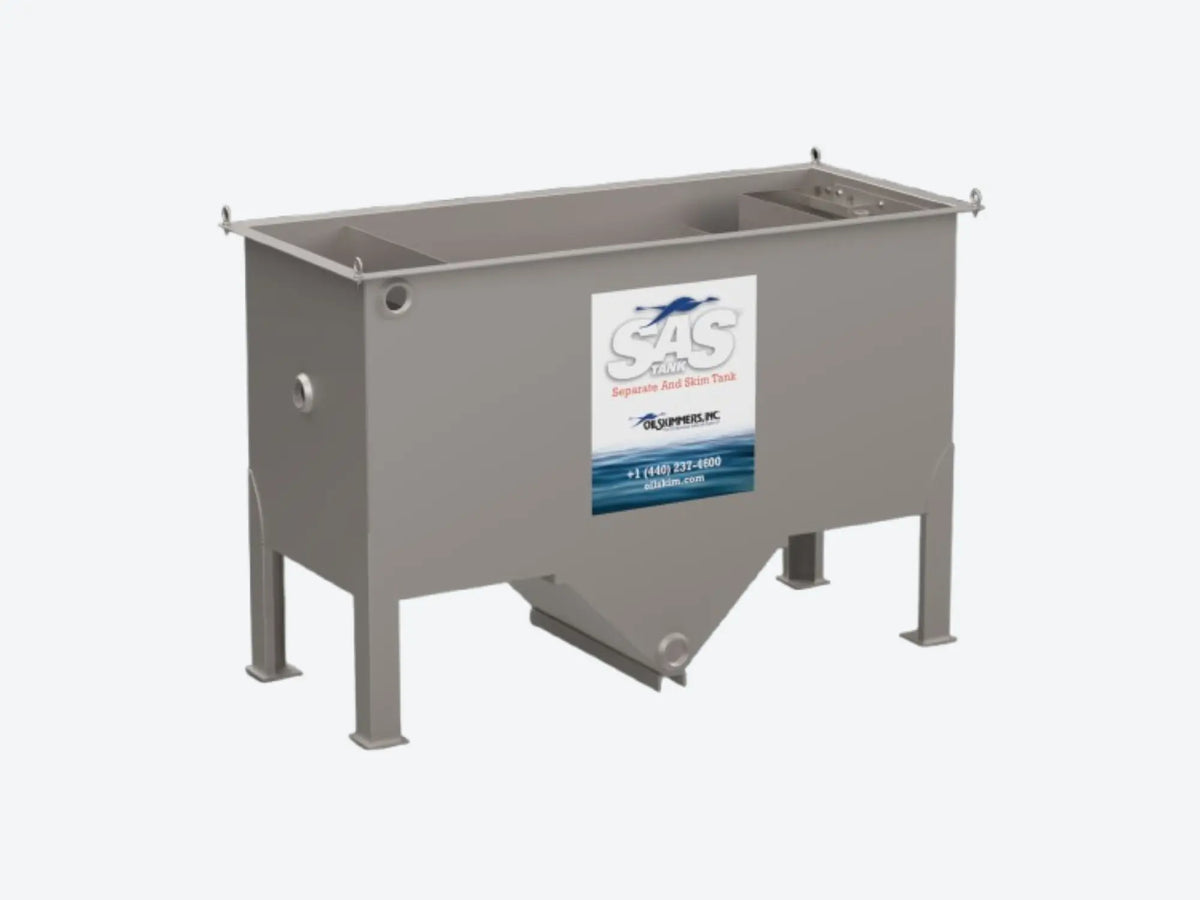

SAS® Oil-Water Separator

Separate a continuous oily-water stream. Keep removing the oil.

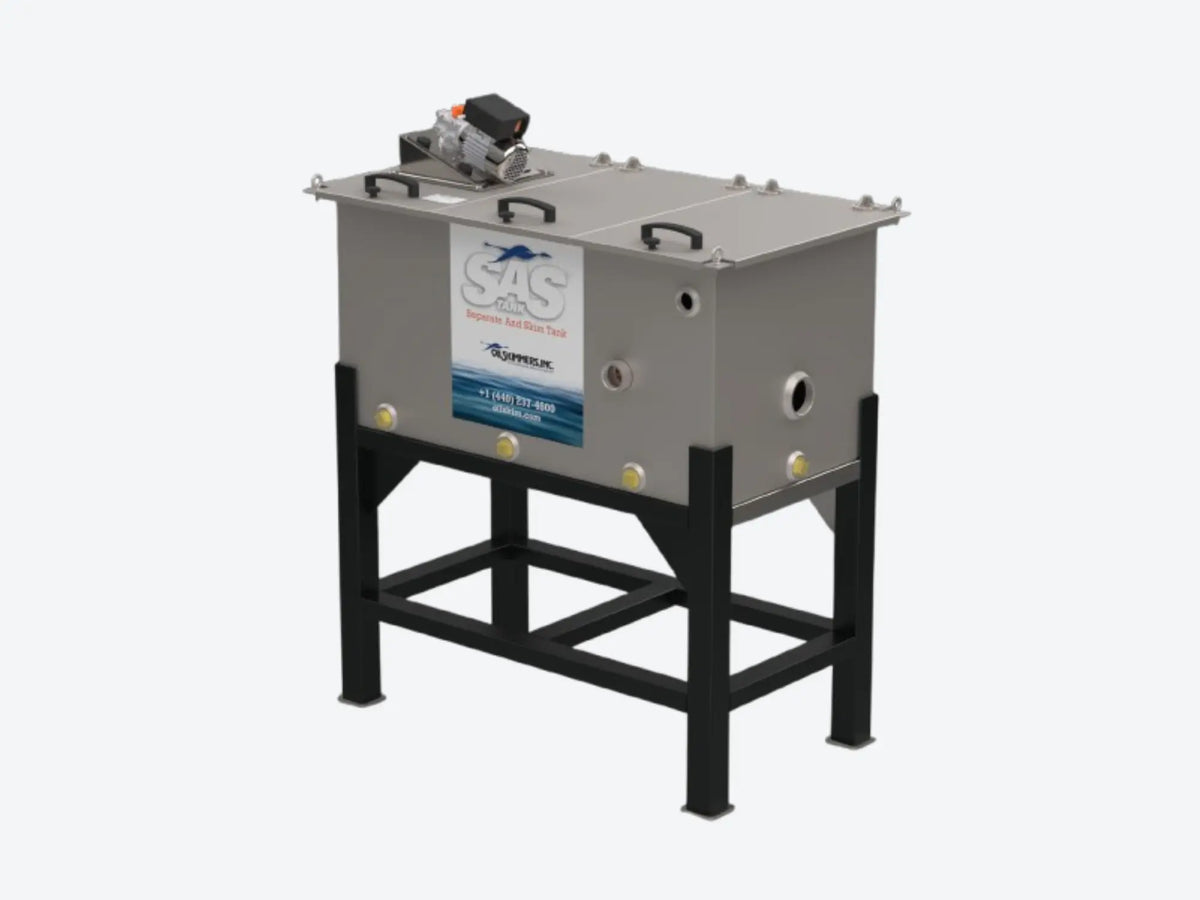

The SAS® Separate and Skim system is an industrial oil-water separator that combines gravity separation and coalescing with active surface-oil recovery.

It is designed for process water and wastewater applications where a continuous oily-water stream requires a dedicated separation stage and the separated free-floating oil needs to be removed continuously rather than allowed to accumulate inside the tank.

Filtra International supports the selection and configuration of the complete SAS system around the actual water flow, oil loading, fluid characteristics and installation conditions.

Operating duty Continuous oily-water flow
Separation Gravity + coalescing media
Oil removal Integrated Brill® tube skimmer
Collector technology Free Floating Collector Tube®
Recovered oil Integrated decanter stage
System sizing Application-specific
Operating principle

How the SAS oil-water separator works

The SAS combines a controlled separation stage with continuous removal of the free-floating oil that rises to the liquid surface.

1

Control the inlet

The incoming oily-water stream enters through an inlet designed to reduce velocity and support a more controlled flow through the separator.

2

Separate oil and water

Inside the separation chamber, gravity and coalescing media help oil droplets combine, rise and form a distinct surface layer.

3

Remove the separated oil

The integrated Brill® tube-type oil skimmer continuously collects free-floating oil from the surface using a Free Floating Collector Tube®.

4

Separate the outlet streams

Skimmed oil passes through the decanter while the treated water continues into the clean-water section for gravity discharge or pumping.

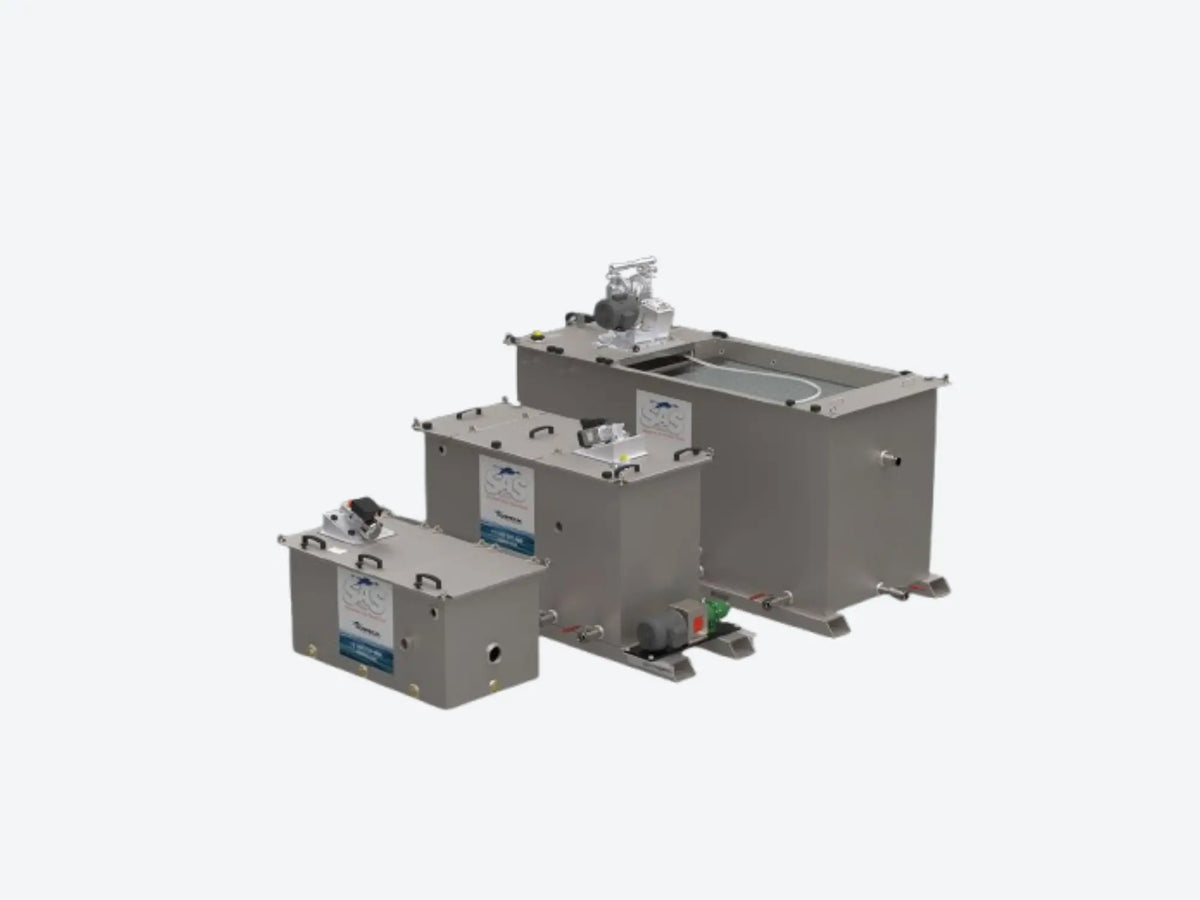

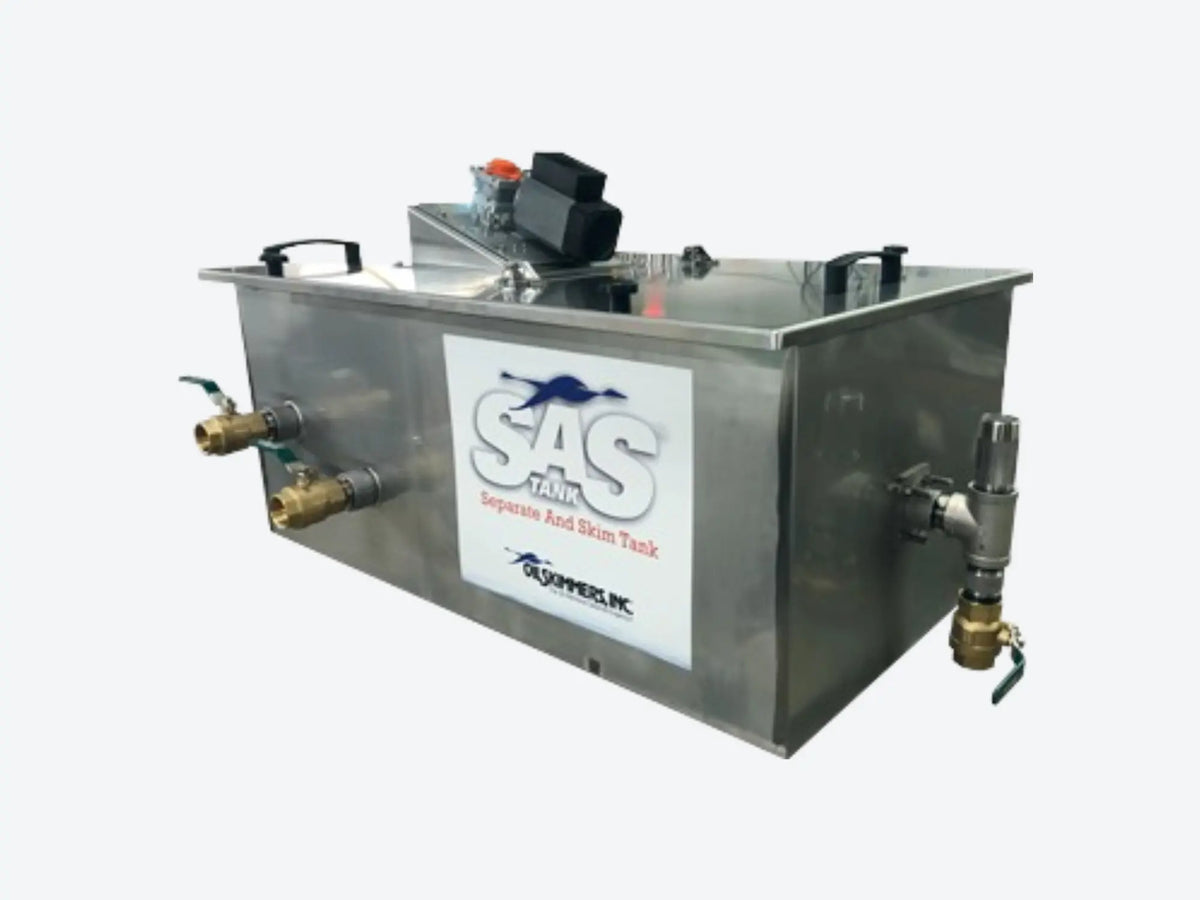

System components

The main stages inside an SAS system

The SAS combines the functions required to slow the incoming flow, promote oil-water separation, actively recover separated oil and manage the outgoing water stream.

1
Water inlet Designed to balance the velocity of the incoming liquid and support controlled flow into the separation chamber.
2
Separation chamber Provides the space in which oil and water can form distinct layers.
3
Coalescing media Helps smaller oil droplets combine into larger droplets that rise more readily to the liquid surface.
4
Brill® tube-type oil skimmer Continuously removes separated free-floating oil from the surface of the separation chamber.
5
Oil-water decanter Provides an additional stage for separating water carried with the oil recovered by the skimmer.
6
Baffle and weir Establish the operating liquid level and support controlled flow through the tank.
7
Clean-water section Allows the separated water stream to leave the system by gravity or by pump according to the installation.
8
Inspection and clean-out access Drain couplings and hinged removable lids provide access for inspection, maintenance and solids removal.
Technical overview

SAS system characteristics

System type Industrial oil-water separator with integrated active oil removal
Flow regime Continuous oily-water flow
Primary separation Gravity separation supported by coalescing media
Oil recovery Brill® tube-type oil skimmer with Free Floating Collector Tube®
Recovered-oil treatment Oil-water decanter
Water discharge Clean-water section suitable for gravity drainage or pumping, according to system configuration
Maintenance access Drain couplings and hinged removable lids
System sizing Selected around the actual flow rate, temperature, oil characteristics, oil quantity and installation requirements

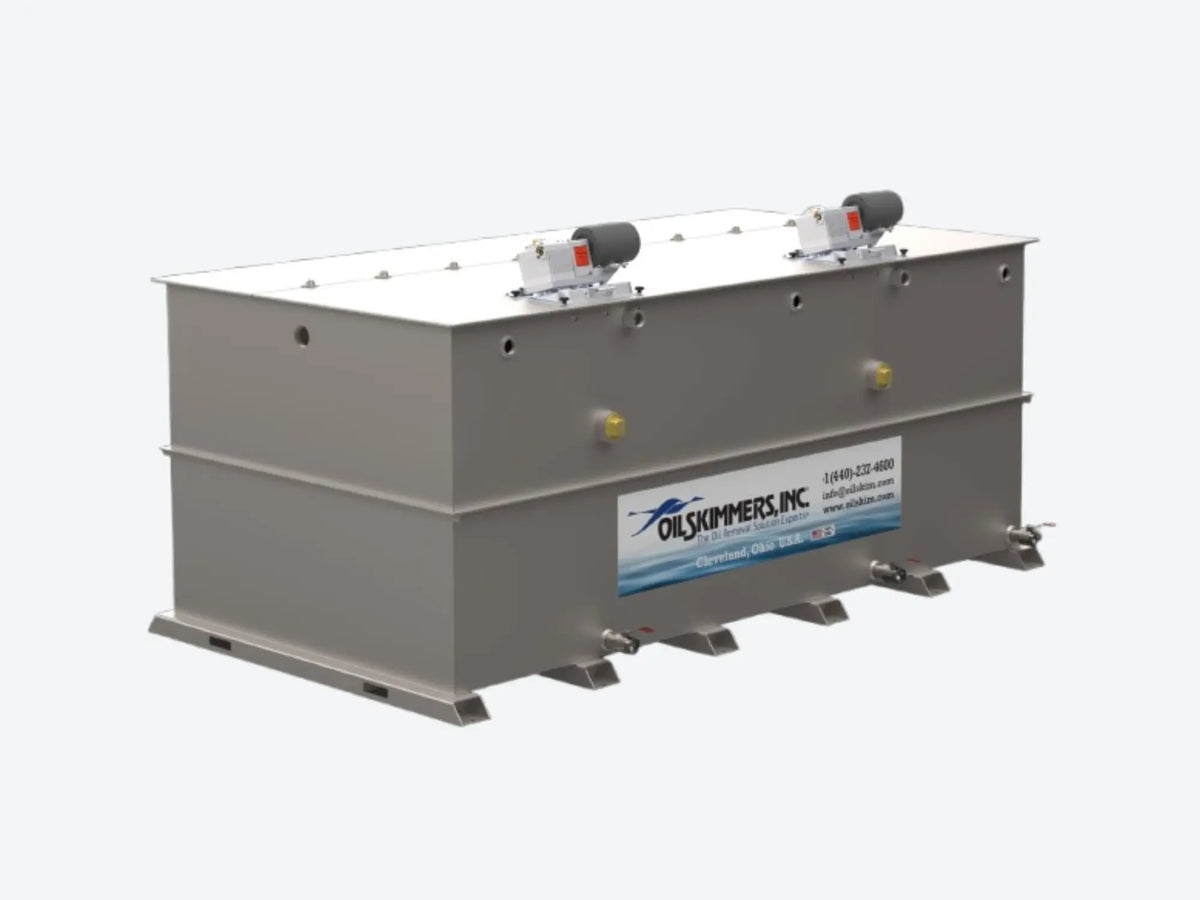

Application-specific configuration

Configure the SAS around the process

The separator should be selected from the actual process conditions rather than from a single nominal oil-recovery figure.

High or changing oil loads

Applications with large quantities of oil or occasional heavy oil slugs can be reviewed separately during system sizing.

Controls and automation

Pumps, level switches, alarms, beacon lights and other control functions can be considered as part of the complete installation.

Oil sensing

Oil-sensing technology can be considered where the process should trigger a defined control or alarm response.

Coatings and materials

Special coatings or materials can be reviewed where fluid chemistry or the operating environment requires them.

Recovered-oil storage

Oil collection reservoirs and downstream transfer arrangements can be integrated according to the site requirements.

Heating and insulation

Heat tracing and insulation can be considered where low temperatures may affect separation or recovered-oil flow.

Electrical and hazardous-area installations: motor, control, enclosure and hazardous-area requirements must be confirmed for the actual installation. A manufacturer description of a US explosion-proof option should not be interpreted automatically as European ATEX compliance.
Sizing and selection

Size the separator around both water flow and oil load

Water throughput and oil recovery are separate design duties. Correct SAS selection therefore starts with the complete process, not only with the amount of oil expected to be recovered.

Water flow

Provide normal and maximum water flow and describe any short-term surges or changing operating conditions.

Oil quantity

Estimate the normal oil load and identify whether occasional large slugs of oil can enter the system.

Oil characteristics

Oil density, viscosity, temperature and the way the oil behaves in the process liquid influence system selection.

Installation conditions

Available floor space, inlet and outlet elevations, drainage, utilities, access and downstream treatment should be included in the review.

Important: the SAS is intended to separate and remove free oil that can form a recoverable surface layer. Stable emulsions, dissolved hydrocarbons or a specified final discharge limit may require additional treatment stages.
Applications

Typical SAS applications

SAS systems are used where an industrial water stream contains separable oil and requires a dedicated continuous-flow separation stage.

Food process oven lines

Continuous separation and active removal of suitable free oil from process-water streams.

Industrial sumps and pits

Treatment of collected oily water where a separate flow-through separator is preferred.

Wash tanks

Removal of separable oil from suitable industrial wash-water streams.

Truck wash water

Oil-water separation as part of an industrial vehicle-wash water treatment process.

Wastewater pretreatment

Free-oil removal before suitable downstream wastewater-treatment equipment.

Runoff and infiltration water

Treatment of appropriate oily rainwater runoff or groundwater infiltration streams following application review.

Application fit

When should you consider an SAS system?

Strong SAS applications

  • A continuous oily-water stream requires treatment.
  • The oil can separate and form a free-floating surface layer.
  • A dedicated separation tank is preferable to installing only a skimmer in the existing sump.
  • Separated oil should be removed continuously instead of accumulating inside the separator.
  • The water needs to continue to another process, treatment stage or controlled discharge point.

Review another approach when

  • The oily water arrives mainly as batches or occasional surges; Skim 1st may be the more appropriate starting point.
  • The requirement is a compact low-flow treatment system; CoolSkim should be compared.
  • Free-floating oil already collects inside an accessible tank and only direct surface skimming is required.
  • The contamination is predominantly a stable emulsion or dissolved oil rather than separable free oil.
Collector Tube Test

Test oil pickup before finalizing the tube-skimmer configuration

Tube Test Kit

The SAS uses a Brill® tube-type oil skimmer with a Free Floating Collector Tube®. Where oil pickup is uncertain, the collector-tube material can be evaluated using the actual oil and process liquid.

This is particularly useful when the oil characteristics, temperature or process chemistry make pickup behaviour difficult to predict from a description alone.

What does the test establish?

The test helps evaluate whether the collector tube can pick up the actual floating oil from the process liquid.

It does not determine separator capacity, retention time, water throughput or final treated-water quality. Those parameters remain part of the complete SAS application review.

Oil-water separator family

SAS, CoolSkim or Skim 1st?

The correct system depends primarily on how the oily water enters the treatment process and how much space and retention time are available.

Continuous flow

SAS®

For continuous oily-water streams requiring dedicated oil-water separation and active oil removal.

Current product
Compact low-flow treatment

CoolSkim®

For compact low-flow applications where a smaller dedicated separation system is appropriate.

Batch or surge flow

Skim 1st®

For intermittent batches or surges where the liquid can remain in the tank for a defined separation period.

Already have a suitable tank with free-floating oil? A dedicated separator may not always be necessary. Compare direct tube oil skimming solutions.
Application review

Define the SAS around your process

The most useful starting point is a simple description of where the oily water comes from, how much water enters the system and what must happen to the treated water and recovered oil afterward.

Useful information for selection

  • Normal and maximum water flow
  • Oil type and approximate oil quantity
  • Oil viscosity or density where known
  • Minimum and maximum liquid temperature
  • Process chemicals or cleaning agents
  • Available installation space
  • Inlet and outlet elevations
  • Destination of the treated water
  • Recovered-oil storage or transfer requirement
  • Electrical supply
  • Hazardous-area classification where applicable

Request an SAS application review

Filtra International can review the process conditions and help define the appropriate SAS configuration before quotation.

Process drawings, photographs, wastewater data and representative oil or liquid information are useful where available.

Frequently asked questions

SAS oil-water separator questions

Common questions about continuous industrial oil-water separation and active oil removal.

What is an SAS oil-water separator?

The SAS® Separate and Skim system is an industrial oil-water separator for continuous oily-water streams. It combines a separation chamber and coalescing media with an integrated Brill® tube-type oil skimmer that continuously removes separated free-floating oil.

Is the SAS designed for continuous or batch flow?

SAS is designed around a continuing flow of oily water. Where wastewater arrives mainly as intermittent batches or large surges, a Skim 1st system should also be evaluated.

How does the SAS separate oil from water?

The incoming stream enters the separation chamber where reduced flow velocity, gravity and coalescing media help oil droplets combine and rise to the surface. The integrated tube skimmer then actively removes the separated surface oil.

What type of oil skimmer is installed in the SAS?

The SAS uses a Brill® tube-type oil skimmer with a Free Floating Collector Tube® to recover free-floating oil from the surface of the separation chamber.

What does the SAS decanter do?

The decanter provides an additional separation stage for water that is carried with the oil removed by the tube skimmer, helping reduce water in the recovered-oil stream.

How is the treated water discharged?

The SAS includes a clean-water section from which the separated water can be gravity drained or pumped, depending on the system and installation configuration.

How is an SAS system sized?

System selection should consider water flow rate, temperature, oil characteristics, oil quantity and the installation requirements. Filtra International reviews these conditions before defining the proposed system configuration.

Can the SAS handle large oil slugs?

Oil Skimmers, Inc. identifies configurations for applications with high oil-to-water quantities or heavy oil slugs. The actual application should be reviewed so the separator, oil recovery and storage arrangement can be sized appropriately.

Can pumps, alarms and controls be integrated?

Pumps, collection tanks, level switches, alarms, beacon lights, oil sensing and other controls can be considered as part of an application-specific system.

Can the SAS be heated or insulated?

Heat tracing and insulation are available options for suitable applications where low temperatures may affect separation or the flow of recovered oil.

Can a Tube Test Kit be used for an SAS application?

Yes. Because the SAS uses a collector-tube oil skimmer, a Tube Test Kit can help evaluate oil pickup using the actual oil and process liquid. The test evaluates collector-tube pickup; it does not replace separator sizing or water-treatment assessment.

Can the SAS remove emulsified or dissolved oil?

The SAS is designed around separation and recovery of oil that can form a separable free-oil layer. Stable emulsions or dissolved hydrocarbons may require additional or different treatment processes.

What information should I send for an SAS quotation?

Useful information includes normal and maximum water flow, oil type and quantity, temperature, fluid chemistry, available space, inlet and outlet elevations, the required destination of the treated water, recovered-oil handling requirements and any applicable electrical or hazardous-area requirements.
