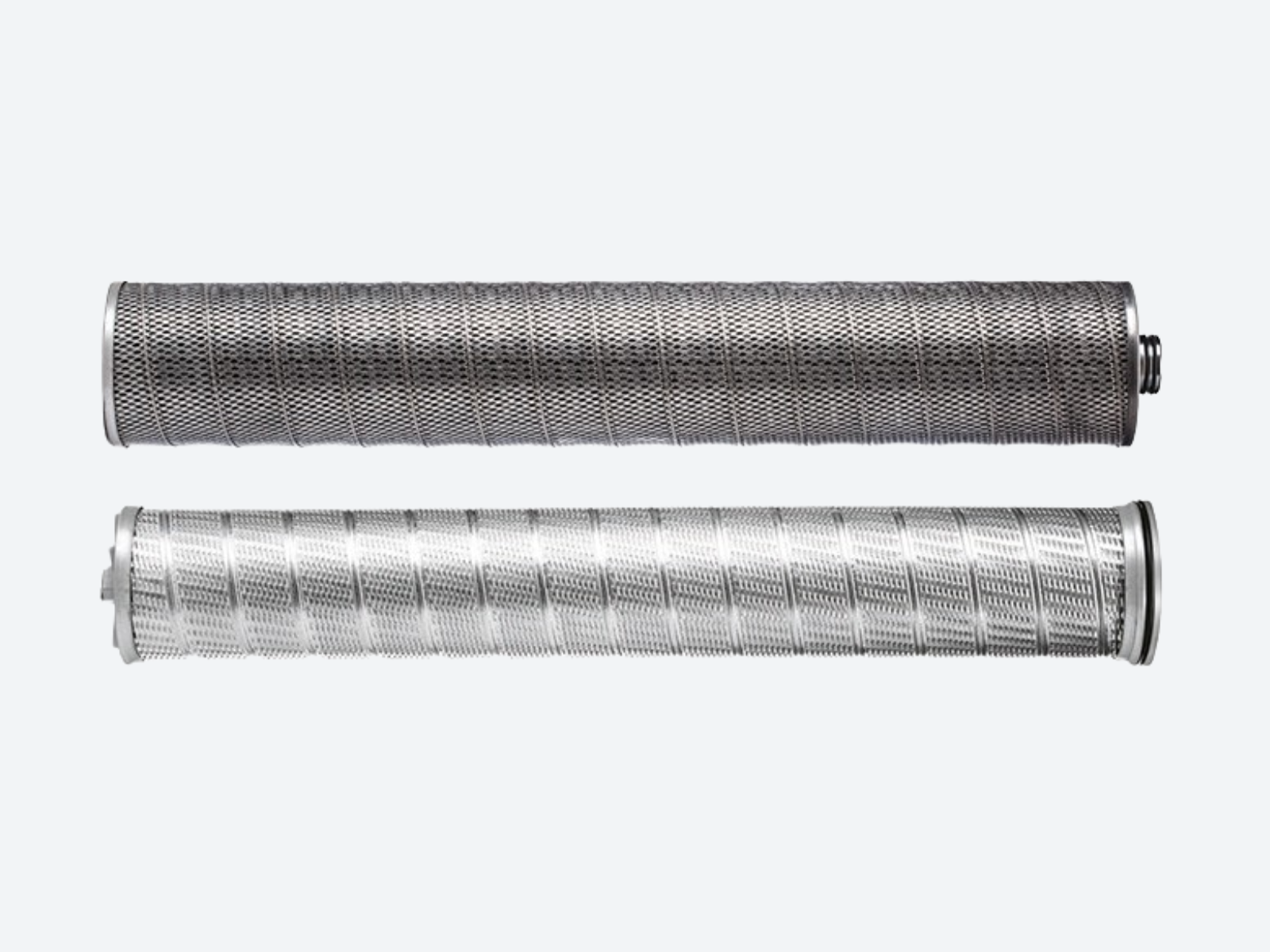

Metallic High Flow Filter Cartridge

Product description

High flow pleated metallic filter cartridge for demanding industrial filtration

Metallic High Flow Filter Cartridges are designed for industrial liquid filtration applications where very high flow rates, fine filtration efficiency and long service life are required. The pleated depth media construction provides an exceptionally large filtration surface, allowing high throughput with low pressure loss.

These cartridges are developed for processes where performance, reliability and cleanable metallic construction are essential. The rigid pleat pack design ensures mechanical stability even at high flow rates and under varying operating conditions.

Filtration principle

Metallic High Flow Filter Cartridges operate using pleated depth filtration. Process fluid flows through the pleated metallic filter media, where particles are retained within the depth of the media structure.

This filtration method provides:

• very high flow capacity

• low pressure drop at high throughput

• high dirt holding capacity

• consistent and reliable filtration efficiency

• suitability for fine polishing applications

The pleated design maximises effective filtration area within a compact high flow cartridge format.

Construction and materials

Metallic High Flow Filter Cartridges feature a fully pleated metallic filter design with thermally bonded construction to ensure cartridge integrity and eliminate bypass.

Materials of construction

Filter media options:

• Stainless steel 316L

Internal components:

• Inner core: stainless steel 316L

• Outer cage: stainless steel 316L

• End caps: stainless steel 316L

Sealing materials available:

• EPDM

• Buna-N

• Silicone

• Viton

• FEP

The all-metal construction allows use in applications requiring higher temperature resistance and wide chemical compatibility.

Performance characteristics

Typical performance characteristics include:

• very large filtration surface area per cartridge

• absolute rated filtration for consistent performance

• low pressure loss even at high flow rates

• high dirt holding capacity

• stable pleat structure under all operating conditions

The rigid pleat pack design maintains performance and prevents media deformation at elevated flow rates.

Available micron ratings

Metallic High Flow Filter Cartridges are available in the following micron ratings:

• 0.5 micron

• 1 micron

• 5 micron

• 10 micron

• 20 micron

• 50 micron

• 70 micron

• 90 micron

Micron selection depends on process requirements and desired filtration performance.

Dimensions and configurations

Standard cartridge dimensions include:

• Lengths:

  • 20"

  • 40"

  • 60"

• Outer diameter:

  • approximately 160 mm

• Core diameter:

  • approximately 75 mm

Cartridges are designed for use in dedicated high flow filter housings.

Operating limits

Typical operating limits include:

• Maximum continuous temperature:

  • up to 100 °C with stainless steel construction

• High flow capability:

  • suitable for very high volumetric flow rates at low pressure drop

Exact operating limits depend on process conditions, fluid viscosity and cartridge configuration.

Typical applications

Metallic High Flow Filter Cartridges are commonly used in:

• chemical processing

• fine chemicals

• pharmaceutical production

• water treatment systems

• oil and gas processes

• automotive manufacturing

• power generation

Typical duties include:

• fine polishing filtration

• pre-reverse osmosis protection

• resin trap filtration

• solvent and chemical filtration

• cooling fluids and wash solutions

Key benefits

• Pleated metallic depth media for very high flow rates

• Large filtration surface area

• Low pressure drop

• High dirt holding capacity

• Robust stainless steel construction

• Suitable for high temperature applications

• Cleanable and reusable design

• Long service life

Installation considerations and quotation

For optimal performance, Metallic High Flow Filter Cartridges should be:

• Installed in housings designed for high flow cartridges

• Selected with the correct micron rating for the application

• Equipped with seal materials compatible with the process fluid

• Operated within recommended flow and temperature limits

Because these cartridges are typically used in high performance and process critical applications, Filtra International supplies them on a quotation basis.

Configuration options include:

• Micron rating

• Cartridge length

• Sealing material

• Quantity and delivery requirements

Request a quote to receive a Metallic High Flow Filter Cartridge matched precisely to your process conditions.
