Product description

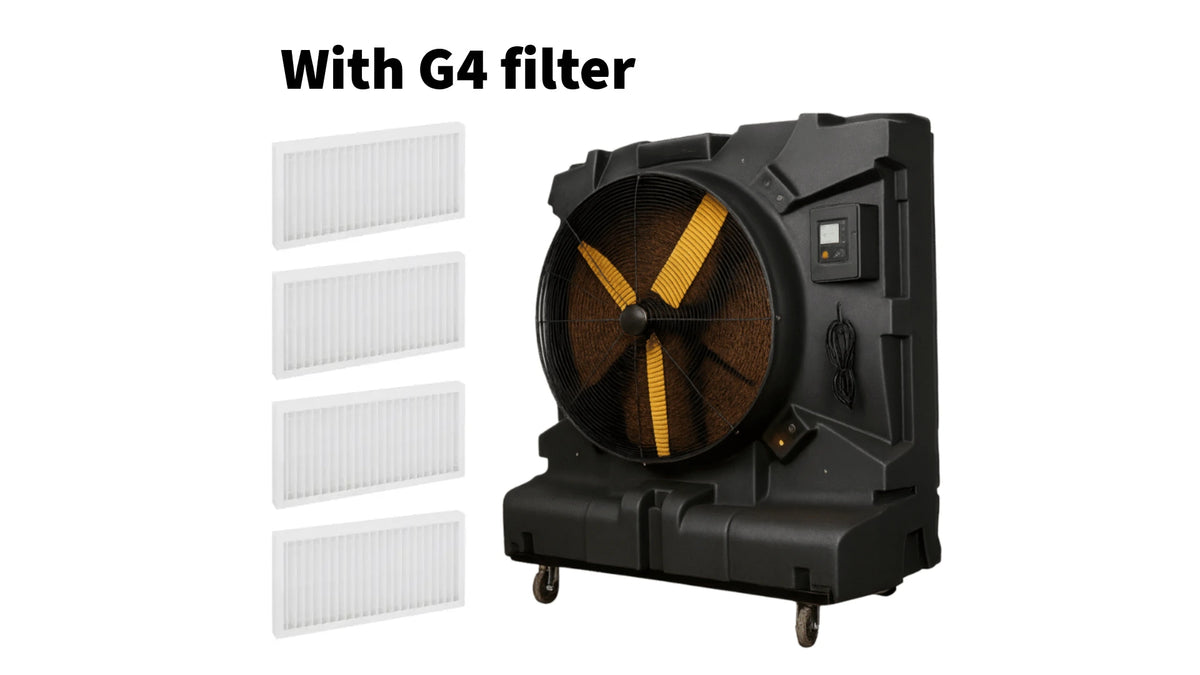

The KM30 EC-W is a high-capacity mobile industrial evaporative air cooler designed for warehouses, production areas, workshops and other demanding work environments up to approximately 400 m².
With a maximum airflow of 30,000 m³/h, continuously adjustable EC motor control and integrated G4 air pre-filtration, the unit combines high-volume evaporative cooling with additional protection against coarse airborne contamination in industrial environments.
Technical overview
- Maximum airflow: 30,000 m³/h
- Recommended area: up to 400 m²
- Airflow adjustment: continuously adjustable from 0 to 100%
- Motor: EC motor
- Air pre-filtration: G4 pre-filter
- Water treatment: integrated UV treatment
- Swing function: not included
- Connectivity: Wi-Fi
- Protective cover: included
- Application class: industrial
- Warranty: 5 years
Operating principle
The KM30 EC-W uses evaporative, also known as adiabatic, cooling. Warm ambient air is drawn through a water-wetted evaporative medium. As water evaporates, heat is absorbed from the incoming air before the cooled air is discharged into the workspace.
The process does not require a conventional refrigerant circuit or compressor-based refrigeration system. Instead, cooling is generated through water evaporation combined with high-volume airflow.
Because evaporative cooling increases the moisture content of the treated air, sufficient air renewal is required. Doors, windows, ventilation openings or mechanical extraction should allow humidified air to leave the building while fresh air enters.
Actual cooling performance depends on ambient temperature, relative humidity, ventilation, ceiling height, internal heat sources and cooler positioning.
Material options
No selectable material variants are specified for the KM30 EC-W. The unit is supplied as a complete mobile industrial evaporative cooling system.
Available micron ratings
The KM30 EC-W uses a G4 air pre-filter rather than a selectable micron-rated filtration stage. This pre-filter is intended to reduce coarse airborne contamination entering the cooling system in industrial environments.
The G4 pre-filter should not be interpreted as HEPA or fine-particle filtration. No selectable micron ratings are specified for this model.
Design and construction
The KM30 EC-W is designed for high-airflow industrial cooling in larger workspaces. Its mobile construction allows the unit to be positioned close to occupied zones, production lines or heat-generating processes.
- Mobile industrial construction
- High-volume axial airflow
- EC motor technology
- Continuously adjustable output from 0 to 100%
- G4 incoming-air pre-filtration
- Integrated UV water treatment
- Wi-Fi connectivity
- Remote operation and monitoring
- Protective cover included
- 5-year warranty
Typical applications
- Large industrial warehouses
- Manufacturing and production halls
- Industrial workshops
- Logistics and distribution centres
- Packaging and processing areas
- Automotive and mechanical workshops
- Metalworking environments
- Industrial maintenance areas
- Large assembly areas
- Local or zoned cooling around operator workstations
Key benefits
- Suitable for industrial spaces up to approximately 400 m²
- Maximum airflow of 30,000 m³/h
- G4 air pre-filtration for industrial environments
- Continuously adjustable airflow from 0 to 100%
- EC motor for controlled fan operation
- Wi-Fi connectivity for remote operation
- Integrated UV water treatment
- Mobile configuration for flexible positioning
- High airflow for larger industrial work zones
- Evaporative cooling without refrigerant gas
- 5-year warranty
Configuration and quotation
The stated coverage of up to 400 m² is a general sizing guideline. Correct cooler selection should take the complete operating environment into account rather than floor area alone.
For a technical recommendation or quotation, provide the following information where possible:
- Floor area in m²
- Approximate ceiling height
- Type of industrial process or workspace
- Typical indoor temperature during warm periods
- Available ventilation or extraction
- Dust level and type of airborne contamination
- Machinery, ovens or other internal heat sources
- Number and location of occupied workstations
- Required cooling area: local zone or complete workspace
These parameters help determine whether the KM30 EC-W provides sufficient capacity or whether another cooler size is more appropriate.
