Product description

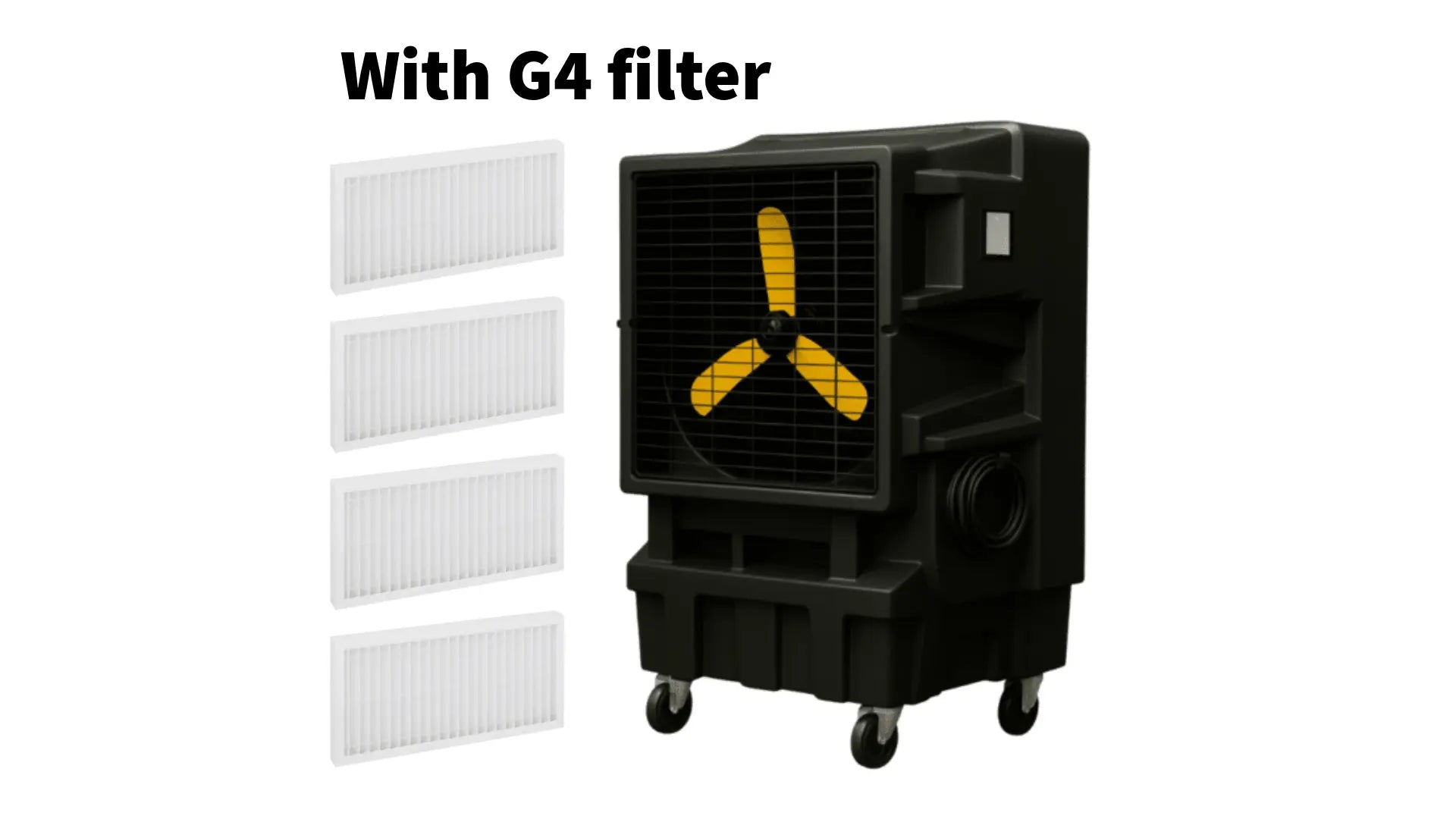

The KM12 EC-W is a mobile industrial evaporative air cooler designed for workshops, warehouses, production areas and other demanding work environments up to approximately 150 m².
With a maximum airflow of 12,000 m³/h, adjustable EC motor control and integrated G4 air pre-filtration, the unit combines evaporative cooling with additional protection against coarse airborne contamination entering the cooling system.
Technical overview
- Maximum airflow: 12,000 m³/h
- Recommended area: up to 150 m²
- Airflow adjustment: continuously adjustable from 0 to 100%
- Motor: EC motor
- Air pre-filtration: G4 pre-filter
- Water treatment: integrated UV treatment
- Air distribution: automatic swing function
- Connectivity: Wi-Fi
- Protective cover: included
- Application class: industrial
- Warranty: 5 years
Operating principle

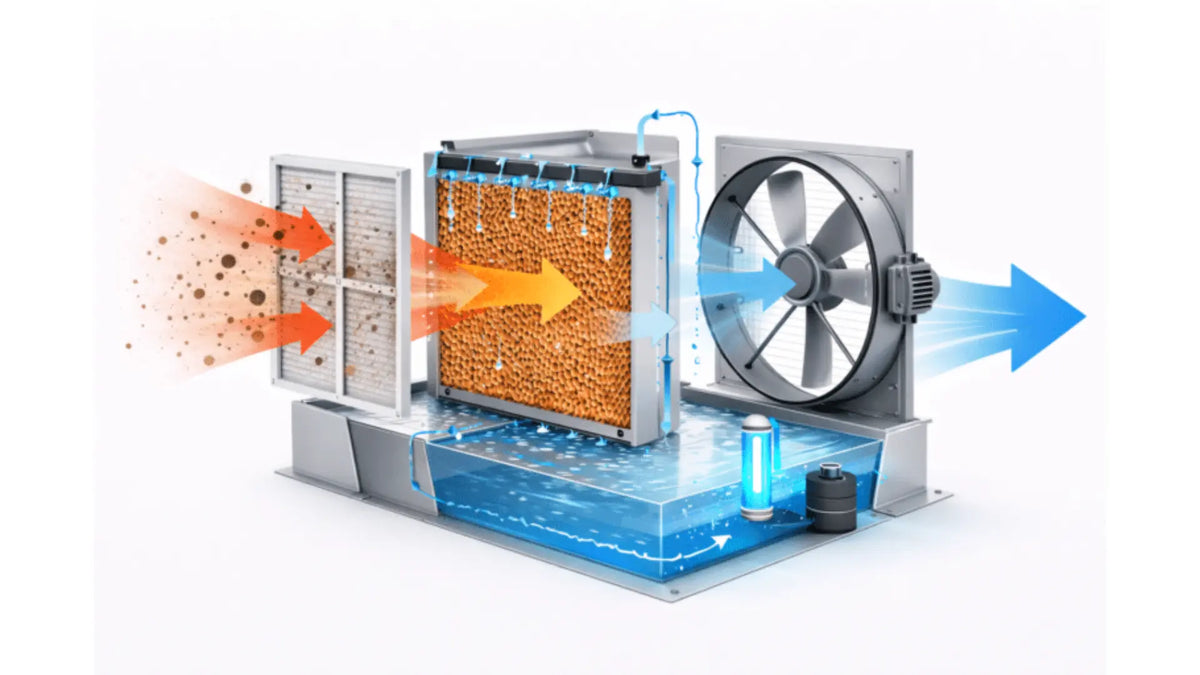

The KM12 EC-W uses evaporative, or adiabatic, cooling. Warm ambient air is drawn through a water-wetted evaporative medium. As water evaporates, it absorbs heat from the incoming air before the cooled air is discharged into the workspace.
The cooling process does not require a refrigerant circuit or conventional refrigeration compressor. Because evaporative cooling increases the moisture content of the treated air, the workspace should provide sufficient air renewal through doors, windows, ventilation openings or mechanical extraction.
Cooling performance depends on ambient temperature, relative humidity, building ventilation, ceiling height, internal heat sources and cooler positioning.
Material options
No selectable material variants are specified for this model. The KM12 EC-W is supplied as a complete mobile industrial evaporative cooling unit.
Available micron ratings
The KM12 EC-W uses a G4 air pre-filter rather than a selectable micron-rated filtration stage. G4 filtration is intended as coarse pre-filtration of incoming air and should not be interpreted as HEPA or fine-particle filtration.
There are no selectable micron ratings specified for this cooler.
Design and construction
The KM12 EC-W is configured for industrial environments where the cooling unit may be exposed to dust and airborne contamination. The integrated G4 pre-filtration stage helps reduce the amount of coarse contamination entering the cooling system.
- Mobile industrial construction
- Integrated castors for repositioning
- High-volume axial airflow
- EC motor technology
- Continuously adjustable output from 0 to 100%
- G4 incoming-air pre-filtration
- Integrated UV water treatment
- Automatic swing for broader air distribution
- Wi-Fi connectivity for remote operation
- Real-time operating information including ambient temperature
- Protective cover included
- 5-year warranty
Typical applications
- Industrial workshops
- Warehouses and logistics areas
- Order-picking zones
- Production and assembly areas
- Automotive workshops
- Packaging facilities
- Food production environments
- Maintenance areas
- Machine shops
- Local cooling of operator workstations
Key benefits
- Suitable for industrial spaces up to approximately 150 m²
- Maximum airflow of 12,000 m³/h
- G4 air pre-filtration for demanding work environments
- Continuously adjustable airflow from 0 to 100%
- EC motor for controlled fan operation
- Wi-Fi connectivity for remote control
- Integrated UV water treatment
- Automatic swing for wider airflow distribution
- Mobile configuration for flexible positioning
- Evaporative cooling without refrigerant gas
- 5-year warranty
Configuration and quotation
The stated coverage of up to 150 m² is a sizing guideline. The correct cooler should be selected according to the complete operating environment rather than floor area alone.
For a technical recommendation or quotation, provide the following information where possible:
- Floor area in m²
- Approximate ceiling height
- Type of industrial process or workspace
- Typical indoor temperature during warm periods
- Available ventilation or extraction
- Dust level and type of airborne contamination
- Machinery, ovens or other internal heat sources
- Number and location of occupied workstations
- Required cooling area: local zone or complete workspace
These parameters help determine whether the KM12 EC-W provides sufficient capacity or whether a higher-airflow industrial cooler is required.
