Product description

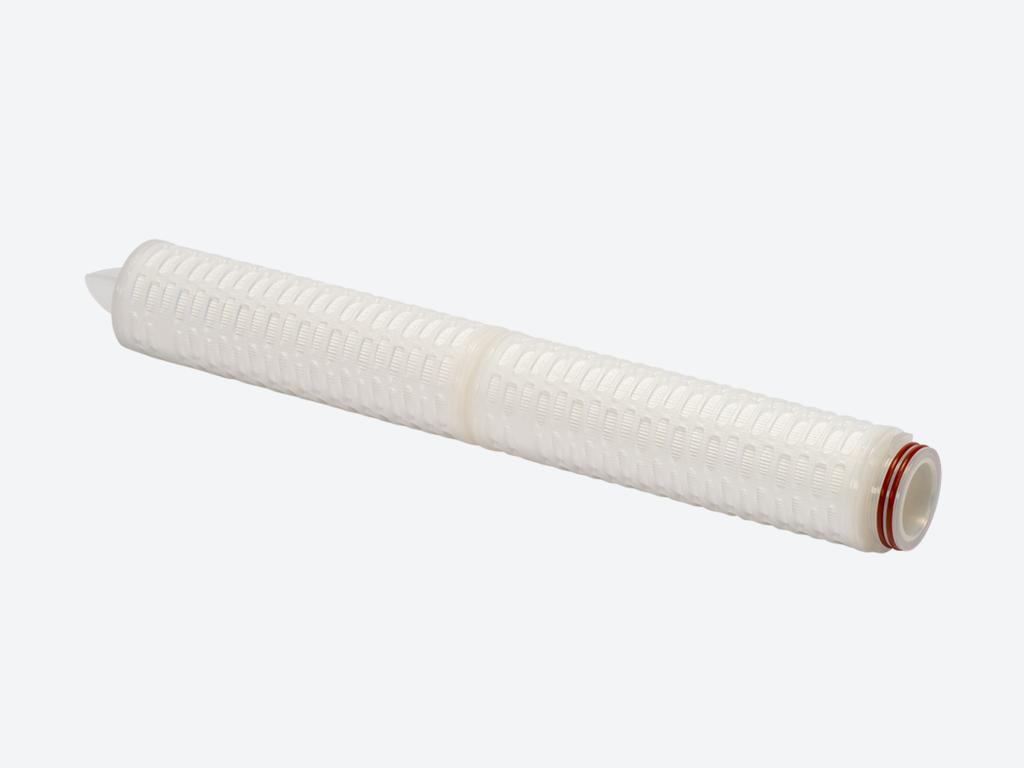

Absolute rated glass fibre pleated filter cartridge for high efficiency liquid filtration
The glass fibre pleated filter cartridge – absolute is designed for applications requiring consistent, known and absolute particle removal combined with high flow rate capability. Manufactured using high strength borosilicate glass fibre media, this cartridge delivers superior filtration efficiency compared to standard pleated polymer cartridges.
The rigid pleated construction ensures reliable performance in demanding process conditions without compromising media integrity or flow performance.
Filtration principle
The cartridge utilises pleated borosilicate glass fibre filter media supported by two rigid support layers. Process liquid flows evenly through the pleated structure, where particles are retained according to the absolute micron rating of the cartridge.
This filtration principle provides:
-
absolute rated particle retention
-
consistent and repeatable filtration performance
-
high flow rates at low pressure drop
-
predictable pressure behaviour over service life
The pleated configuration maximises filtration surface area while maintaining structural stability.
Media technology and uniqueness
The filter media is manufactured exclusively from borosilicate glass fibre, selected for its strength, uniform fibre structure and excellent filtration efficiency. Two rigid support layers reinforce the media, allowing operation at elevated flow rates without deformation or fibre migration.
Key media characteristics include:
-
borosilicate glass fibre filtration media
-
absolute rated particle removal
-
reinforced pleated structure with dual support layers
-
stable efficiency across the full service life
This construction makes the cartridge suitable for critical filtration duties where absolute performance is required.
Design and construction

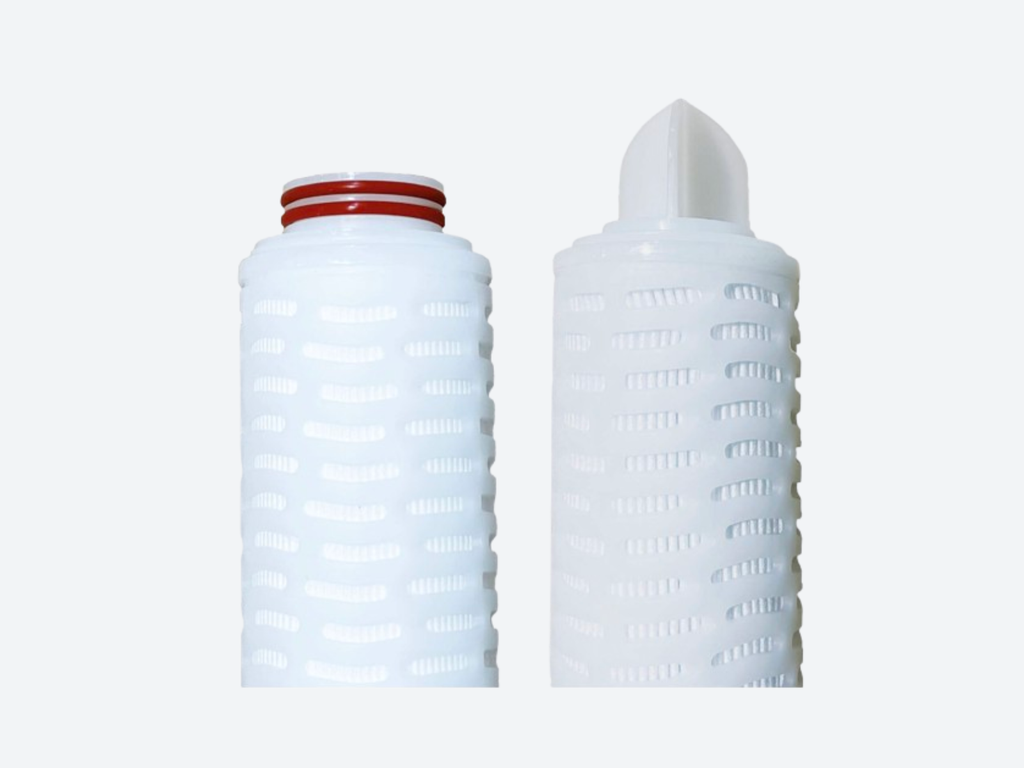

The cartridge features a pleated glass fibre media pack supported internally and externally to ensure mechanical stability. All components are designed to withstand demanding flow conditions while maintaining precise filtration characteristics.
Typical design features include:
-
pleated glass fibre filter media
-
dual rigid support layers
-
thermally welded construction
-
robust design for high flow applications
The cartridge is suitable for installation in standard industrial filter housings.
Materials of construction
Standard construction materials include:
-
Filter media: Borosilicate glass fibre
-
Support media: Polypropylene
-
Core: Polypropylene
-
Cage: Polypropylene
-
End caps: Polypropylene
-
Sealing: Thermally welded
Materials are selected for durability, chemical compatibility and process reliability.
Available micron ratings
Typical absolute micron ratings include:
-
0.45 µm
-
1 µm
-
3 µm
-
5 µm
-
10 µm
Exact micron selection depends on the required level of particle control.
Operating conditions
Typical operating conditions include:
-
Maximum operating temperature: up to 82 °C
-
Maximum differential pressure: up to 6 bar at 21 °C
-
Suitable for continuous liquid filtration
Operating limits depend on cartridge length, micron rating and housing configuration.
Compliance and quality
The cartridge is designed for applications requiring defined and absolute removal characteristics. Materials are suitable for use in regulated and critical process environments.
Key benefits
-
Absolute rated particle removal
-
Higher filtration efficiency than standard pleated cartridges
-
High flow capability with stable pressure drop
-
Reinforced pleated structure for media integrity
-
Reliable and repeatable filtration performance
-
Suitable for critical process applications
Typical applications
Glass fibre pleated filter cartridges – absolute are commonly used in:
-
pharmaceutical processing
-
fine chemical production
-
food and beverage filtration
-
process water clarification
-
applications requiring absolute filtration performance
Configuration and quotation
Glass fibre pleated filter cartridges are supplied in multiple configurations. Selection parameters include:
-
micron rating
-
cartridge length
-
end cap / connection type
-
sealing material
This ensures the cartridge is correctly matched to the process and performance requirements.
