Product description

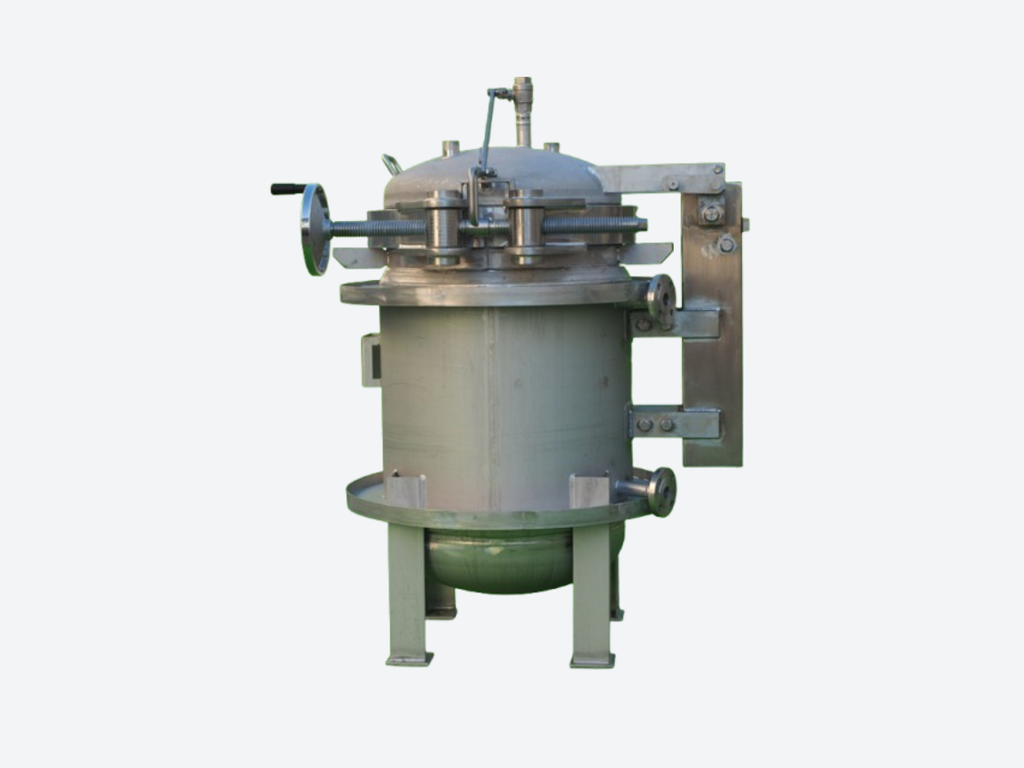

Filter housing manufactured according to ASME Section VIII Division 1 with U Stamp
This filter housing is manufactured in accordance with ASME Section VIII Division 1 and supplied with ASME U stamp certification. It is designed for industrial filtration applications where compliance with American and international pressure vessel codes is required.
ASME U certification confirms that the filter housing is designed, fabricated, inspected and tested according to the ASME Boiler and Pressure Vessel Code. This makes the housing suitable for installations in the United States and in international projects where ASME compliance is specified.
These filter housings are typically used in high pressure and safety critical applications where documented design calculations, traceability and third party inspection are mandatory.
ASME U certification
ASME U stamp certification covers the complete lifecycle of pressure vessel manufacturing, including:
-
design calculations according to ASME rules
-
approved pressure vessel materials
-
qualified welding procedures and personnel
-
inspection by authorized inspectors
-
hydrostatic pressure testing
-
complete manufacturing documentation
Only manufacturers holding valid ASME authorization are allowed to apply the U stamp to pressure vessels.
Design and configuration
The filter housing is engineered as a pressure rated vessel and designed to meet specified operating pressure and temperature limits. Each housing is custom designed to suit the required filtration principle and installation conditions.
Typical configuration options include:
-
vessel diameter and length
-
inlet and outlet nozzle size and orientation
-
closure system
-
internal filter element configuration
-
surface finish and corrosion allowance
The housing can be supplied as a stand alone unit or integrated into a complete filtration system.
Materials of construction
Filter housings manufactured to ASME U are produced using ASME approved carbon steel or stainless steel materials. Material selection is based on pressure rating, operating temperature and chemical compatibility with the process medium.
All materials are fully traceable and documented according to ASME requirements.
Key benefits
-
Manufactured according to ASME Section VIII Division 1
-
Supplied with ASME U stamp certification
-
Suitable for high pressure applications
-
Third party inspection and documentation
-
Custom engineered to order
-
Accepted for US and international projects
Typical applications
ASME U certified filter housings are commonly used in:
-
chemical and petrochemical industries
-
oil and gas processing
-
power generation
-
industrial process filtration
-
international engineering projects
Variants and filter types
This product page represents a generic ASME U certified filter housing. The housing can be configured as:
-
bag filter housing
-
basket filter housing
-
candle filter housing
-
modular filter housing
-
filter housing with quick release closure
Configuration and quotation
Filter housings manufactured to ASME U are supplied on a quotation basis. This allows configuration of:
-
filter housing type
-
design pressure and temperature
-
vessel dimensions and connections
-
material grade
-
inspection and documentation requirements
This ensures the filter housing fully complies with ASME code and project specifications.
