Aircraft Airframe Filtration
Filtration Solutions for Aircraft Structural Systems and Onboard Equipment
Aircraft airframe systems contain numerous hydraulic, fuel, environmental and auxiliary subsystems that support safe and reliable aircraft operation. These systems operate under demanding flight conditions where contamination control is critical for maintaining system performance and protecting sensitive components.
Particles, debris or environmental contamination can affect valves, pumps, actuators and environmental control equipment throughout the aircraft. Effective filtration therefore plays an important role in maintaining system cleanliness and protecting aircraft systems during operation.
Modern aircraft contain filtration systems across a wide range of subsystems. In many aircraft platforms, more than 150 filtration components are used to maintain contamination control in hydraulic, fuel, lubrication, coolant and air systems.
Filtra International supplies filtration components designed to support contamination control in aircraft airframe systems including flight control systems, environmental control systems, fuel systems and auxiliary equipment.
Filtration Solutions for Aircraft Airframe Systems
Filtration technologies designed for aircraft hydraulic systems, environmental control systems and fuel tank protection.

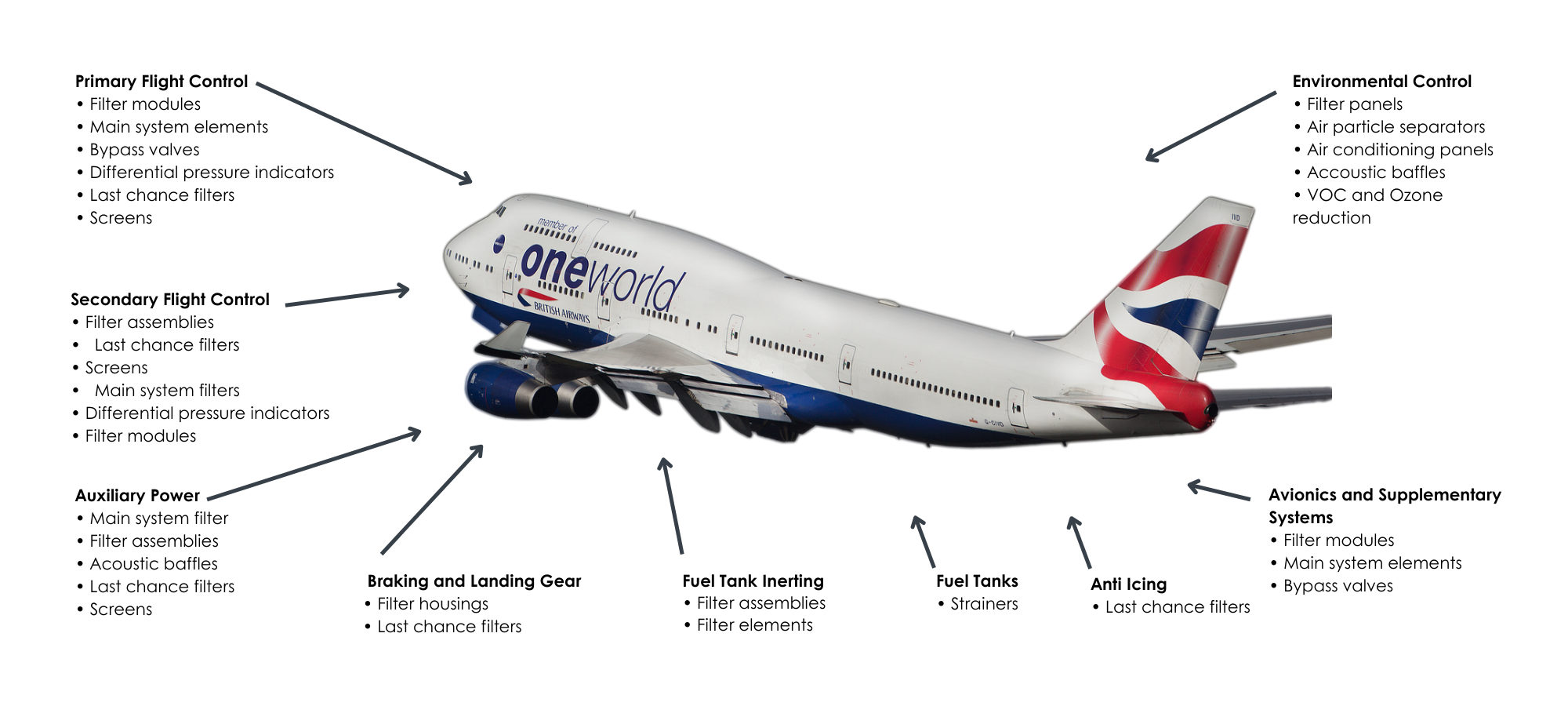

Critical Aircraft Airframe Systems Requiring Filtration
Aircraft airframe systems contain multiple subsystems that rely on filtration to maintain reliable operation and protect sensitive components.
Primary Flight Control Filtration
Primary flight control systems operate critical aircraft control surfaces such as ailerons, elevators and rudders.
These systems rely on hydraulic power and precision mechanical components that must remain free from contamination.
Typical filtration components include:
- filter modules
- main system elements
- bypass valves
- differential pressure indicators
- last chance filters
- filtration screens
Effective filtration helps protect actuators, valves and hydraulic equipment within flight control systems.
Secondary Flight Control Filtration
Secondary flight control systems include additional control surfaces such as flaps, spoilers and trim systems that assist with aircraft stability and maneuverability.
Filtration protects hydraulic circuits and control assemblies from contamination that could affect system response.
Typical filtration components include:
- filter assemblies
- main system filters
- filtration screens
- last chance filters
- differential pressure indicators
Maintaining clean hydraulic fluid is essential for reliable secondary flight control operation.
Auxiliary Power System Filtration
Auxiliary power systems support various onboard functions and may include auxiliary power units and supporting hydraulic or pneumatic systems.
Filtration protects internal components from particles that may enter fluid or air circuits.
Typical filtration components include:
- main system filters
- filtration assemblies
- acoustic baffles
- last chance filters
- filtration screens
These systems help maintain reliable operation of auxiliary aircraft equipment.
Braking and Landing Gear Filtration
Aircraft braking systems and landing gear mechanisms rely on hydraulic circuits to operate reliably during landing and ground operations.
Filtration protects valves, hydraulic actuators and braking components from contamination.
Typical filtration components include:
- filter housings
- hydraulic filtration elements
- last chance filters
Effective filtration helps maintain braking performance and landing gear reliability.
Environmental Control System Filtration
Environmental control systems regulate air quality, temperature and pressurization within the aircraft cabin and equipment compartments.
Filtration helps remove airborne particles and contaminants that may affect onboard systems.
Typical filtration components include:
- filter panels
- air particle separators
- air conditioning panels
- acoustic baffles
- VOC and ozone reduction filters
These systems help maintain clean airflow throughout the aircraft.
Avionics and Supplementary Systems Filtration
Aircraft avionics compartments contain sensitive electronic equipment that requires protection from contamination and environmental exposure.
Filtration supports clean airflow and helps prevent particles from entering electronic equipment bays.
Typical filtration components include:
- filter modules
- main system elements
- bypass valves
Maintaining controlled airflow helps protect sensitive avionics systems.
Anti-Icing System Filtration
Aircraft anti-icing systems prevent ice accumulation on critical aircraft surfaces such as wings, engines and sensors.
Filtration protects system components from particles that could affect valves and flow control equipment.
Typical filtration components include:
- last chance filters
These filters help maintain reliable anti-icing system operation.
Fuel Tank Filtration
Aircraft fuel tanks contain fuel storage and distribution components that must remain free from contamination.
Filtration helps prevent particles or debris from entering fuel supply systems.
Typical filtration components include:
- strainers
Fuel tank filtration supports reliable fuel system operation throughout the aircraft.
Fuel Tank Inerting Filtration
Fuel tank inerting systems reduce the risk of fuel vapor ignition by introducing inert gases into fuel tanks.
Filtration protects inerting system components and ensures clean airflow within the system.
Typical filtration components include:
- filter assemblies
- filtration elements
These systems support safe fuel tank operation during flight.
Filtration Components Used in Airframe Systems
Aircraft airframe filtration systems use a range of filtration components depending on system requirements.
Typical components include:
- filtration screens
- main system filters
- filter modules
- filter assemblies
- strainers
- filter housings
- last chance filters
- differential pressure indicators
These components help maintain contamination control across hydraulic, air and fuel systems within the aircraft.
Airframe Filtration Standards and Qualifications
Our filtration solutions used in airframe systems are designed and manufactured in accordance with aerospace quality and certification standards including:
AS9100 Quality Management Systems
Aerospace filtration components are produced under certified aerospace quality systems ensuring traceability, documentation and controlled manufacturing processes.
EASA Part 21 Production Approval
Filtration components used in aircraft systems are manufactured within approved aerospace production organizations that meet aviation authority requirements.
RTCA DO-160 Environmental Qualification
Aircraft filtration components must withstand demanding environmental conditions including vibration, temperature variations, humidity, fluids and airborne contamination.
Fluid Contamination Control Standards
Filtration systems are designed to maintain hydraulic and fuel system cleanliness in accordance with aerospace contamination control standards such as ISO 4406 and NAS 1638.
These standards ensure that filtration components provide reliable contamination control across hydraulic, fuel, lubrication and environmental systems within aircraft platforms.
Engineering Support for Aerospace Filtration Systems
Filtra International supplies filtration components designed for aircraft hydraulic systems, environmental systems and fuel systems.
