Tramp oil should be treated as a separation problem — not simply as dirty coolant

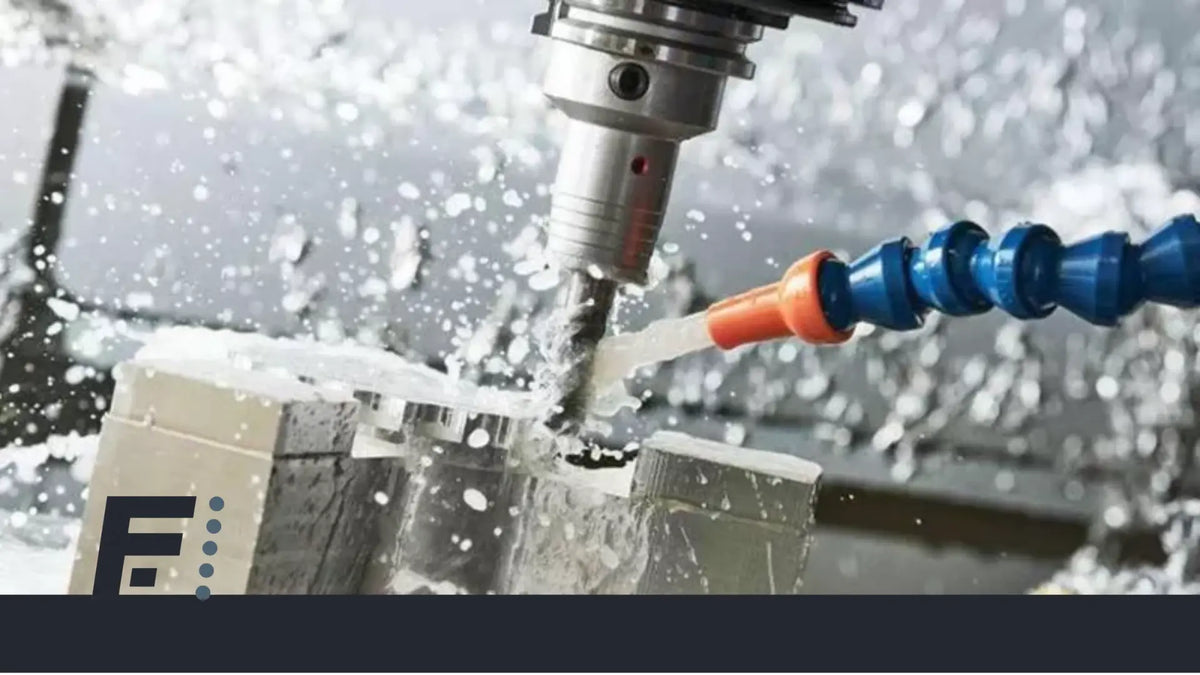

Hydraulic oil, way lubricant and other machine oils can enter water-based coolant during CNC machining and accumulate as a free-floating layer at the surface of the coolant tank.
Once the oil has separated from the coolant, continuous surface skimming can provide a practical way to remove it without repeatedly removing large quantities of the working coolant itself.
The correct skimmer, however, depends on more than simply seeing oil on the surface. Tank size, available surface area, mounting position, oil quantity, liquid-level variation and temperature all influence equipment selection.
What is tramp oil in a CNC coolant system?
Tramp oil is unwanted oil that enters a water-based machining coolant from another source.
Common sources include hydraulic systems, machine lubrication, way oils, gearboxes, bearings and oil carried into the coolant from surrounding equipment or workpieces.
Where the contaminating oil is less dense than the coolant and is able to separate, it can accumulate at the liquid surface. This free-floating phase is the portion that a surface oil skimmer is designed to recover.
This distinction is important. A skimmer is not intended to replace every coolant-conditioning or filtration step. Its specific task is to remove a separate oil phase that is available at the liquid surface.
Why remove tramp oil from machining coolant?
Allowing free oil to remain on the coolant surface can make coolant management more difficult and increase the amount of manual attention required around the machine or coolant system.
Continuous skimming addresses the separated oil before a large surface layer has to be removed manually.
Free-floating oil is not the same as emulsified oil
Free-floating tramp oil
Oil has separated from the coolant and forms a visible surface layer, film or floating accumulation.
This is the primary target for a tube-type oil skimmer.
Stable emulsion
Oil remains finely dispersed throughout the aqueous phase instead of separating at the surface.
A surface skimmer alone may not resolve this condition and another separation or treatment method may be required.
Key distinction: a tube oil skimmer is primarily a free-oil recovery device. Seeing oil in the coolant does not automatically mean all of that oil is available for surface skimming.
How does a tube oil skimmer remove tramp oil?
A Brill® tube-type oil skimmer uses a continuous closed-loop collector tube that floats across the liquid surface.
Free-floating oil adheres to the outside of the collector tube as it moves through the contaminated area.
The tube then returns to the skimmer, where scraper components remove the collected oil. The cleaned tube returns to the coolant tank and repeats the cycle.
Because the collector tube floats instead of remaining fixed at one exact liquid height, tube-type skimming can also accommodate changes in liquid level.
Larger Brill® models use the same general recovery principle for industrial tanks, pits, sumps and wastewater applications.
Model 1H: the compact starting point for individual CNC coolant tanks
For individual CNC machines, small coolant reservoirs and aqueous parts washers, the Oil Skimmers Model 1H Brill® is often the most relevant starting point.
Compact tube-type oil skimmer
The Model 1H is the most compact Brill® tube-type skimmer and is intended for machining coolant tanks, aqueous washing systems and applications where available tank surface or installation space is limited.
What if the coolant system is larger than a single machine tank?
Not every machining facility uses a small independent coolant reservoir.
Central coolant systems, collection pits, wash-water sumps and larger process tanks can require considerably more recovery capacity or a different mounting arrangement.
In these cases, selecting a skimmer purely by oil-removal capacity is not sufficient. The relationship between the liquid surface and the available mounting location is also important.
3.8–7.6 L/h
Typical starting point: individual CNC coolant tanks, parts washers and restricted-access tanks.
Configuration: compact tube-type oil skimmer.
15–227 L/h
Typical starting point: larger tanks where the skimmer can be positioned close to the working liquid level.
Configuration: horizontal tube operation.
15–379 L/h
Typical starting point: industrial pits, sumps, process-water systems and wastewater.
Configuration: heavy-duty vertical tube operation.
38–757 L/h
Typical starting point: larger tanks and pits with substantial or changing oil loads.
Configuration: 1 in (25.4 mm) collector tube with variable-speed operation.
These descriptions are starting points rather than automatic selection rules.
Tank geometry, operating temperature, tube length, mounting location and the characteristics of the floating contaminant all affect the final equipment configuration.
What should be measured before selecting a skimmer?
A useful oil-skimmer specification begins with the application, not with the model number.
| Parameter | Why it matters |
|---|---|
| Oil type | Oil chemistry, viscosity and behaviour influence collector performance and recovery. |
| Liquid temperature | Temperature can change oil viscosity and can influence collector-tube selection. |
| Tank length and width | Surface area and available collector-tube travel influence equipment positioning and configuration. |
| Liquid depth | Helps define tank geometry and the actual operating range of the liquid. |
| Liquid-level variation | The collector tube must remain effective across the actual operating range. |
| Mounting height | The distance between the liquid surface and available mounting location strongly influences model and tube-length selection. |
| Approximate oil quantity | Helps determine the recovery capacity required instead of simply selecting the largest available skimmer. |
| Floating debris | Debris conditions should be considered when evaluating access, collector movement and the complete oil-removal system. |
| Electrical supply | Motor configuration must match the available site electrical supply. |
Can collector-tube performance be tested before ordering?
For unusual oils, coolant formulations or uncertain separation behaviour, practical testing can be useful before final equipment selection.
Test the actual process liquid
For suitable applications, a Tube Test Kit can be used to evaluate collector-tube performance using the actual oil and process liquid.
This can be particularly useful when the contaminant is unusual, oil viscosity is uncertain or practical pickup behaviour should be evaluated before the final equipment configuration is selected.
Why selecting the largest skimmer is not automatically better
Oil-removal capacity is only one selection parameter.
A compact coolant tank with restricted access may be better served by a Model 1H even though larger models provide much higher nominal recovery rates.
Conversely, a large central sump may require a Model 5H, 6V or 7V because of mounting geometry, collector-tube arrangement or the quantity of oil entering the system.
Selection principle: size the skimmer around the actual oil load and installation geometry — not simply around the highest available US gal/h rating.
When is a tube skimmer not the complete solution?
A tube-type skimmer is primarily a surface oil-recovery device.
Applications dominated by stable emulsions, very large surface-liquid transfer requirements or more complex oil-water separation duties may require another technology or a complete engineered oil-removal system.
The purpose of an application review is therefore not simply to choose between the Model 1H, 5H, 6V and 7V.
The first question is whether tube-type surface skimming is the appropriate separation principle for the application.
Application note: photographs or drawings of the coolant tank, sump or machine can often be as useful as written dimensions when evaluating mounting options and collector-tube routing.
Documented Oil Skimmers application experience
Tube skimming and complete oil-removal systems have been applied across a wide range of industrial oil-on-water applications.
These examples illustrate an important engineering principle: equipment is selected around the actual oil-removal problem, installation geometry and operating conditions rather than around a model number alone.
Process-water oil recovery
Scale-pit oil removal
Floating oil in collection pits
Oily wash-water treatment
Retention ponds with floating debris
Higher-capacity surface oil removal
What these applications have in common: equipment selection starts with the oil-removal problem and installation conditions. Oil type, tank or pit geometry, liquid-level variation, debris, temperature and required recovery capacity influence the final solution.
Frequently asked questions
What is tramp oil in CNC coolant?
Tramp oil is unwanted oil that enters a water-based machining coolant from sources such as hydraulic systems, machine lubrication, way oils, gearboxes or surrounding equipment. When the contaminating oil separates and floats, it can be removed from the coolant surface.
What type of oil skimmer is used for a small CNC coolant tank?
The Model 1H Brill® is designed for compact machining coolant tanks, aqueous washing systems and applications where access or available surface area is limited.
Final selection should still consider tank dimensions, mounting position, oil quantity and operating temperature.
How much oil can the Model 1H remove?
The Model 1H is rated at approximately 1–2 US gal/h (3.8–7.6 L/h). Actual recovery depends on the characteristics of the floating oil and the operating conditions.
Can a tube oil skimmer handle changing coolant levels?
Yes. A free-floating collector tube can move with changes in liquid level instead of depending on one fixed surface height.
The collector-tube configuration must still match the actual operating range of the tank or sump.
Can an oil skimmer remove emulsified oil from coolant?
Tube-type oil skimmers are primarily intended to remove free-floating oil.
Stable emulsified oil that remains dispersed throughout the coolant may require another separation or treatment method.
When should a larger Model 5H, 6V or 7V be considered?
Larger models should be evaluated for central coolant systems, larger tanks, pits and sumps, higher oil loads or installations where the required mounting arrangement is not suited to the compact Model 1H.
The appropriate model depends on both required recovery capacity and installation geometry.
Can the collector tube be tested with the actual oil first?
For suitable applications, a Tube Test Kit can be used to evaluate collector-tube pickup with the actual oil and process liquid before the final equipment configuration is selected.
What information should I provide for an oil-skimmer review?
Useful information includes the oil type, liquid temperature, tank or sump dimensions, liquid depth, liquid-level variation, distance between the liquid surface and proposed mounting point, approximate oil quantity, floating debris conditions and available electrical supply.
