Product description

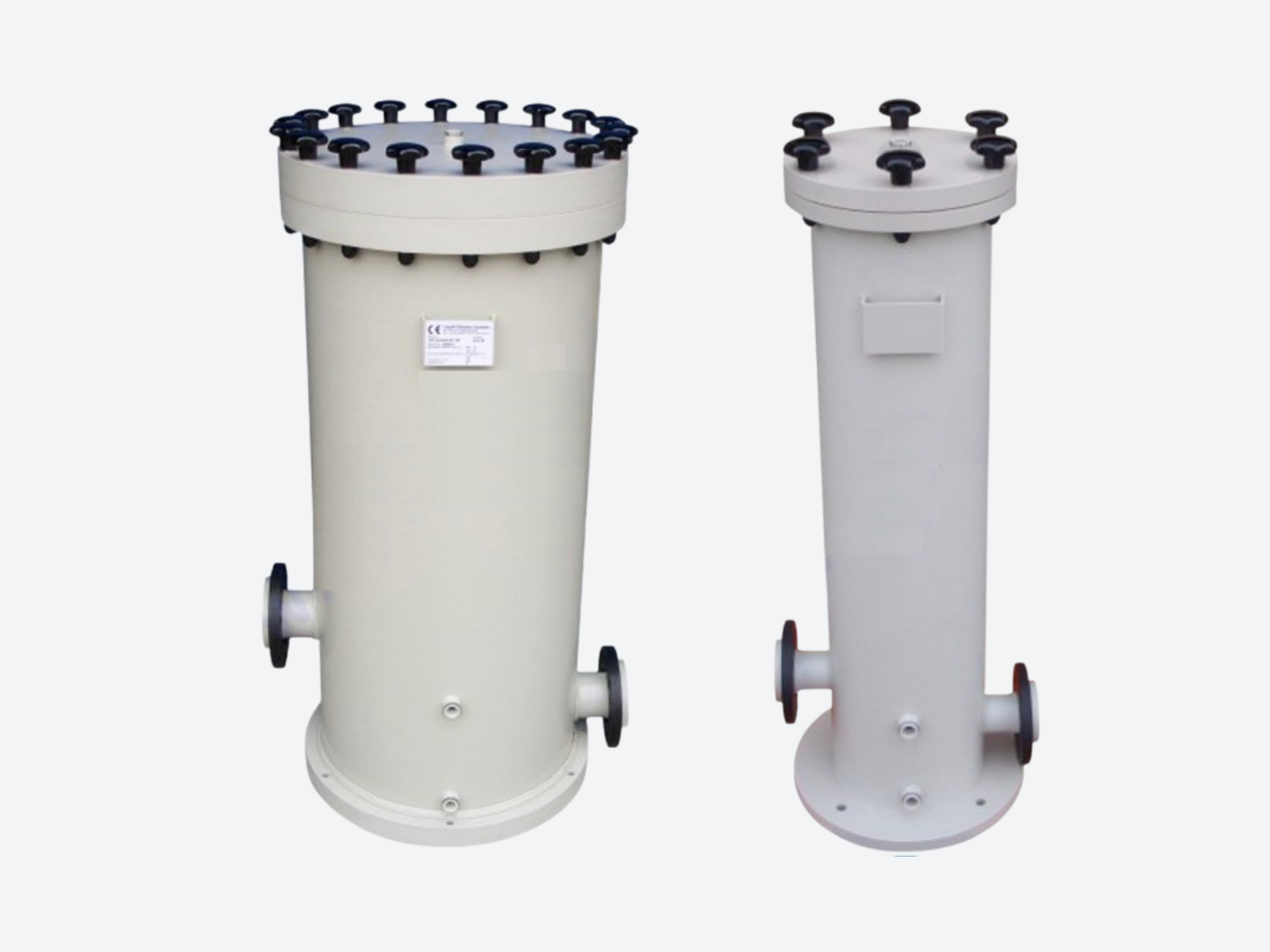

PVDF cartridge filter housing for chemically demanding filtration
The PVDF cartridge filter housing is engineered for industrial liquid filtration applications where chemical resistance, purity and ease of maintenance are required. The housing is designed to hold one or more high performance filter cartridges and is suitable for a wide range of process liquids.
PVDF is selected as the housing material when aggressive chemicals, solvents or elevated operating temperatures are part of the process. The material’s chemical stability and mechanical strength make this housing suitable for applications that standard plastic or metal housings cannot reliably serve.
Filtration principle
The PVDF cartridge filter housing uses a top loaded cartridge design. Liquid flows into the housing, passes through the filter cartridge(s) and exits through the outlet connection, while the filter media captures suspended particles and contaminants.
This configuration provides:
-
controlled filtration efficiency
-
predictable differential pressure behavior
-
simple element exchange
-
reliable sealing against bypass
Filter cartridges can be chosen from a broad range of micron ratings and media types to match the required level of filtration.
Material advantages
PVDF (polyvinylidene fluoride) is a high performance thermoplastic with strong chemical resistance and good thermal stability. Compared to standard polypropylene and polyethylene housings, PVDF offers:
-
improved resistance to acids, bases and solvents
-
higher allowable operating temperatures
-
robust long term performance in demanding environments
This makes PVDF cartridge housings suitable for filtration tasks in chemical processing, pharmaceuticals, coatings and other industries where aggressive media must be handled safely.
Design and construction
The PVDF cartridge filter housing features:
-
housing body manufactured from PVDF
-
top loaded filter cartridge design
-
robust sealing system for reliable operation
-
smooth internal surfaces for easy cleaning
-
configurable inlet and outlet connections in threaded or flanged execution
-
support basket or centering devices where required
Access to the cartridges is fast and safe, allowing maintenance without complex disassembly.
Operating conditions
Typical operating parameters for PVDF cartridge filter housings include:
-
operating pressures suitable for industrial filtration duties
-
elevated operating temperatures within PVDF material limits
-
compatibility with a wide range of process liquids
Exact limits depend on selected seals, connection types, cartridge configuration and process conditions. These parameters are defined during the configuration phase to ensure optimal performance.
Key benefits
-
Chemical resistant housing material
-
Compact cartridge filtration solution
-
Easy and fast filter cartridge exchange
-
Flexible configuration to match process requirements
-
Suitable for demanding industrial liquids
Typical applications
PVDF cartridge filter housings are commonly used in:
-
chemical process filtration
-
pharmaceutical production
-
water and wastewater treatment
-
coatings and resins filtration
-
pre filtration ahead of membranes and fine filters
Configuration and quotation
PVDF cartridge filter housings are supplied on a quotation basis. Configuration options include:
-
number of filter cartridges
-
cartridge length and media type
-
sealing material
-
connection type and size
This ensures that the filter housing is tailored to the intended process conditions and installation requirements.
