Product description

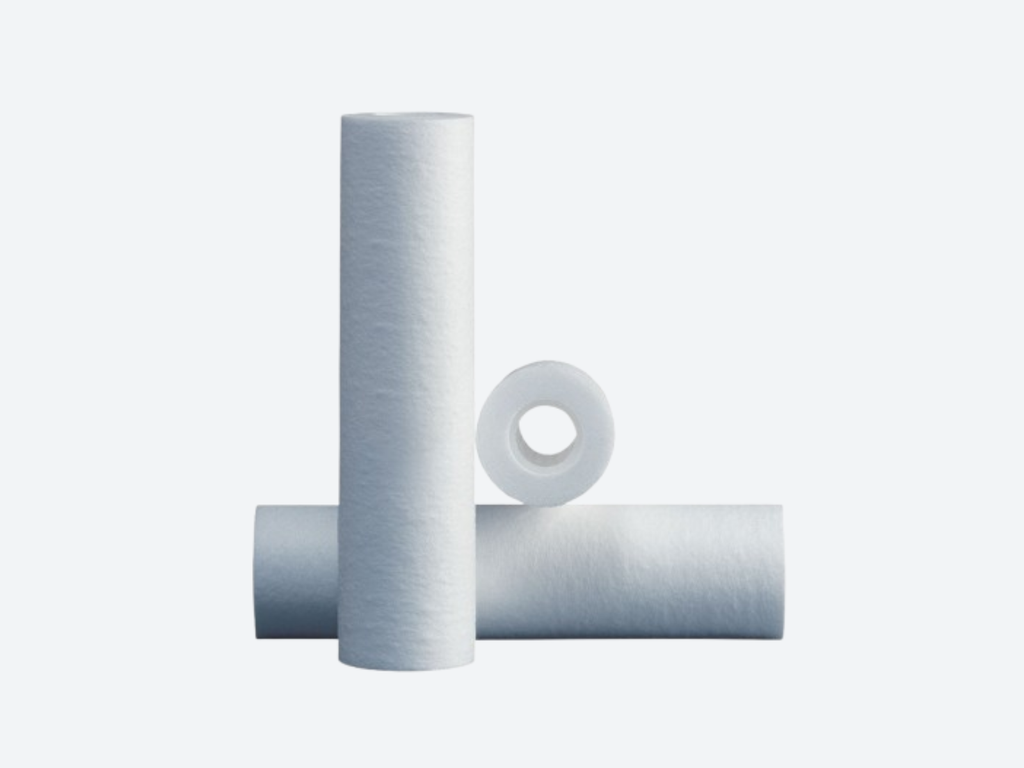

High efficiency polypropylene melt blown depth filter cartridge for industrial liquid filtration
The polypropylene melt blown depth filter cartridge – high efficiency is designed for applications requiring reliable, high-performance nominal filtration combined with long service life and low operating costs. Manufactured from 100% polypropylene using a controlled melt blown process, this cartridge delivers enhanced filtration efficiency while maintaining a low pressure drop.
The advanced fibre structure provides high dirt holding capacity and consistent filtration performance, making the cartridge suitable for continuous industrial liquid filtration duties across a wide range of process fluids.
Filtration principle
The cartridge is manufactured using a melt blown process that forms a true depth filtration structure with progressively varying pore sizes throughout the media.
-
Process liquid flows from the outside to the inside of the cartridge
-
Contaminants are captured throughout the full depth of the media
-
Larger particles are retained in the outer layers
-
Finer particles are captured closer to the core
This filtration principle provides:
-
high nominal filtration efficiency (approximately 95%)
-
excellent dirt holding capacity
-
low and stable pressure drop
-
extended service life
-
reliable performance under variable flow conditions
High efficiency depth media
The polypropylene melt blown media is engineered to provide enhanced filtration efficiency compared to standard depth cartridges.
Key characteristics include:
-
multi-density fibre structure
-
increased particle capture efficiency
-
high permeability for improved flow rates
-
consistent performance throughout service life
This balance between efficiency and flow makes the cartridge suitable for demanding industrial filtration applications.
Design and construction
The cartridge features a one-piece melt blown construction using thermally bonded polypropylene fibres without adhesives or binders.
Typical design features include:
-
single-layer melt blown polypropylene depth media
-
gradient pore structure for progressive contaminant capture
-
high porosity for reduced pressure drop
-
rigid construction for mechanical stability
-
binder-free media with low extractables
The design supports reliable operation under continuous flow and varying contaminant loads.
Materials of construction
-
Filter media: Polypropylene
-
Core:
-
Polypropylene
-
Optional polypropylene with stainless steel support
-
-
End caps: Polypropylene
-
Sealing options:
-
EPDM
-
Silicone
-
Viton®
-
Nitrile
-
FEP encapsulated
-
All materials are selected for chemical resistance, durability and suitability for industrial process filtration.
Operating conditions
Typical operating conditions include:
-
nominal micron ratings across a wide filtration range
-
continuous operating temperatures compatible with polypropylene media
-
short-term peak temperature resistance
-
defined maximum differential pressure limits
Exact pressure and temperature limits depend on micron rating, cartridge length and operating conditions and are defined during configuration.
Key benefits
-
High efficiency nominal filtration (≈95%)
-
High dirt holding capacity
-
Low and stable pressure drop
-
Long service life
-
100% polypropylene construction
-
Broad chemical compatibility
-
Cost-effective depth filtration solution
Typical applications
These cartridges are commonly used in:
-
chemical processing
-
food and beverage production
-
paint and coating filtration
-
cosmetics manufacturing
-
recycling processes
-
general industrial liquid filtration
Configuration options
Available configuration options include:
-
wide range of nominal micron ratings
-
multiple standard cartridge lengths
-
various end-cap configurations
-
multiple sealing material options
This ensures compatibility with standard filter housings and specific process requirements.
Compliance and quality
The polypropylene melt blown high efficiency cartridges are manufactured under controlled production conditions to ensure consistent quality and performance. Food-grade materials and robust construction make them suitable for demanding industrial environments.
