Product description

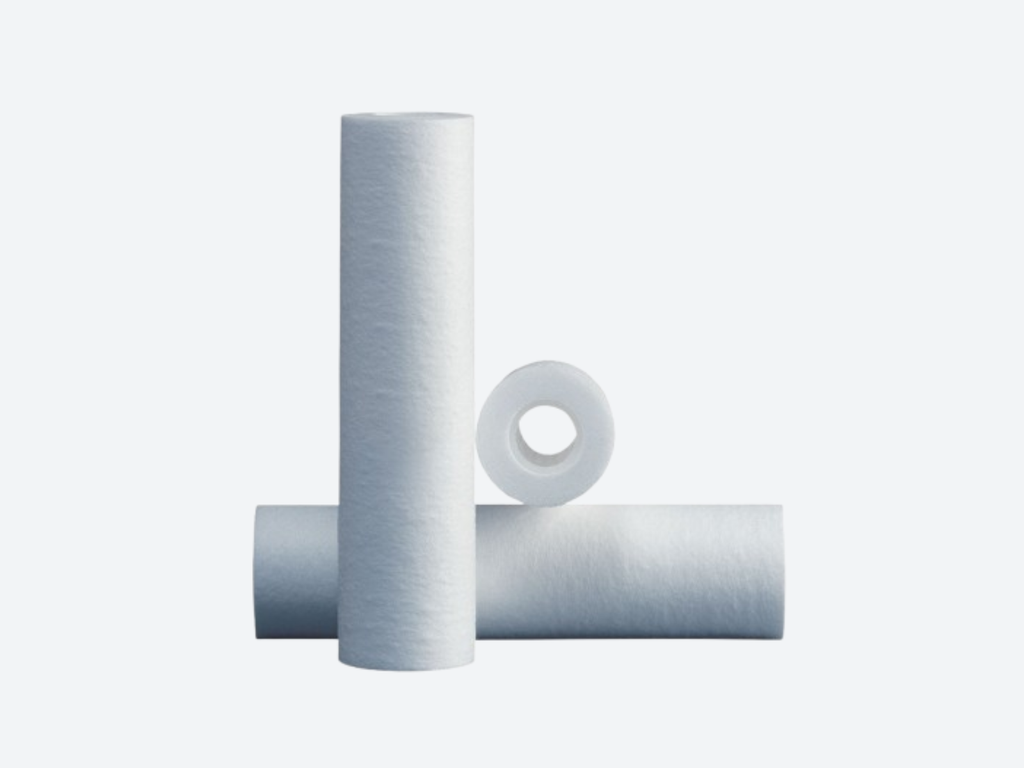

Nominal rated nylon melt blown depth filter cartridge for economical liquid filtration
The nylon melt blown depth filter cartridge – nominal is engineered for general industrial and process filtration applications where reliable particulate removal, high dirt holding capacity and broad chemical compatibility are important. Manufactured from thermally bonded nylon fibres using a melt blown process, this cartridge offers a cost-effective solution for nominal depth filtration.
The gradient density construction captures contaminants throughout the media depth, providing excellent service life and predictable filtration behaviour in a wide range of fluid environments.
Filtration principle
The cartridge utilises a melt blown nylon media with a controlled gradient density structure, where coarser fibres on the outside transition to finer fibres toward the inner core. This design maximises available filtration area and enables progressive contaminant capture.
Process liquid flows from the outside of the cartridge to the inside, allowing particles to be retained throughout the depth of the media according to the nominal micron rating.
This filtration principle provides:
-
nominal particle retention
-
high dirt holding capacity
-
stable low differential pressure
-
predictable and repeatable performance
-
suitable performance across variable flow conditions
Nominal filtration ratings are optimized for general sediment and particulate control rather than defined absolute retention.
Media technology and uniqueness
The filter media consists of melt blown nylon fibres thermally bonded to form a depth filter matrix. Nylon is selected for its mechanical strength, thermal stability and compatibility with a wide range of process liquids.
Key media characteristics include:
-
nylon melt blown depth media
-
gradient density structure for depth filtration
-
high porosity for improved flow rates
-
excellent chemical compatibility
This construction delivers economical filtration performance with extended service intervals.
Design and construction
The cartridge features a continuous melt blown nylon media supported by a rigid internal core. The media is thermally bonded, eliminating the use of adhesives or binders and minimizing extractables.
Typical design features include:
-
gradient density melt blown media
-
thermally bonded construction for media integrity
-
rigid internal support core
-
robust design for general filtration duties
The cartridge is designed for installation in standard industrial filter housings.
Materials of construction
Standard construction materials include:
-
Filter media: Melt blown nylon
-
Core: Nylon or compatible polymer
-
End fittings: Nylon or compatible polymer
Seal materials are selected according to application compatibility requirements.
Available nominal ratings
Typical nominal micron ratings include:
-
1 µm
-
5 µm
-
10 µm
-
20 µm
-
30 µm
-
50 µm
-
75 µm
These ratings allow selection for general particulate and sediment control.
Operating conditions
Typical operating conditions include:
-
Wide chemical compatibility suitable for industrial liquid streams
-
Suitable for continuous operation
-
Stable performance across variable flow rates
Exact limits depend on cartridge length, housing design and process conditions.
Key benefits
-
Nominal depth filtration performance
-
High dirt holding capacity
-
Economical and reliable solution
-
Low differential pressure for high flow
-
Excellent chemical resistance
-
Thermally bonded and low extractables
Typical applications
Nylon melt blown depth filter cartridges – nominal are commonly used in:
-
general industrial water filtration
-
municipal and cooling water systems
-
pre-filtration for membranes and cartridges
-
process water treatment
-
chemical processing
-
commercial water systems
Configuration and quotation
Nylon melt blown depth filter cartridges – nominal are supplied on a configuration basis. Selection parameters include:
-
nominal micron rating
-
cartridge length
-
end cap / connection type
-
seal material
This ensures the cartridge is matched to the process and housing design.
